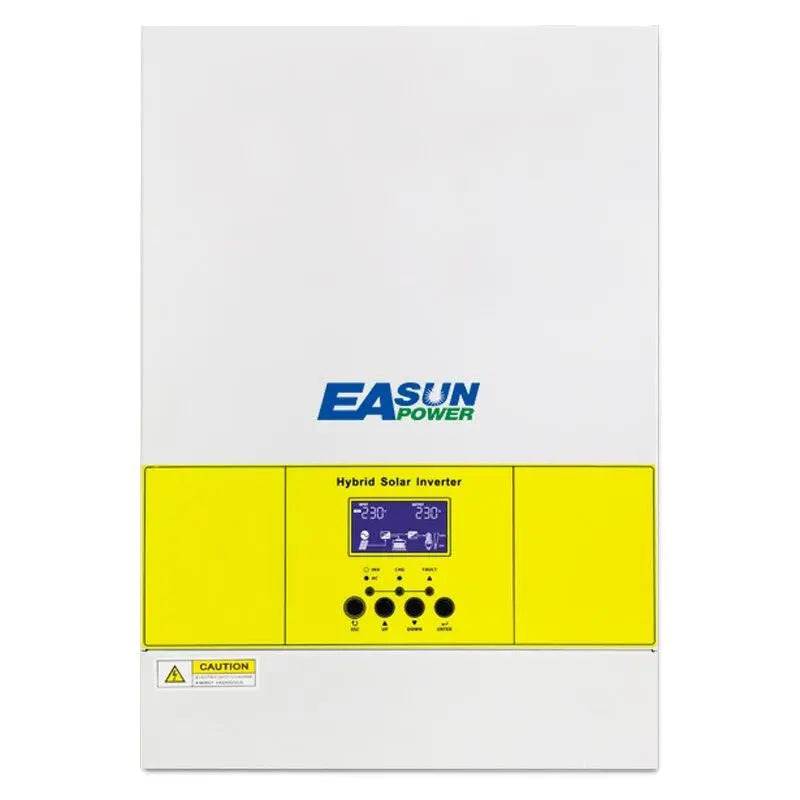

Solar Inverter 5.6KW PV input 500Vdc Charger 5500W Power MPPT 100A Pure Sine Wave Inverter With WiFI 220VAC 48VDC
Solar Inverter 5.6KW PV input 500Vdc Charger 5500W Power MPPT 100A Pure Sine Wave Inverter With WiFI 220VAC 48VDC
Couldn't load pickup availability
⚡ Solar Inverter 5.6KW PV input 500Vdc Charger 5500W Power MPPT 100A Pure Sine Wave Inverter With WiFI 220VAC 48VDC
Upgrade your system with our high-performance Solar Inverter 5.6KW PV input 500Vdc Charger 5500W Power MPPT 100A Pure Sine Wave Inverter With WiFI 220VAC 48VDC. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
SPECIFICATIONS
- Wave form: pure sine wave
- Is_customized: Yes
- Grid type: off-grid inverter
- Weight: 11KG
- Type: DC/AC Inverters
- Surge Power: 11000VA
- Solar Charge Current: 100A
- Size: 482x290x113mm
- Rated Power: 5600VA/5600W
- PV Array Power: 5500W
- PV Array MPPT Voltage Range: 120VDC-450VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 60HZ/50Hz
- Output Current: 11A
- Model Number: ISolar SMG II 5.6KW
- Maximum Charge Current: USB/RS232/Dry-contact/Wifi
- Input Voltage: 48Vdc
- Function: Solar inverter 48V 220V
- Description 2: Pure sine wave inverter charger
- Communication Interface: USB/RS232/WIFI
- Certification: CE,RoHS

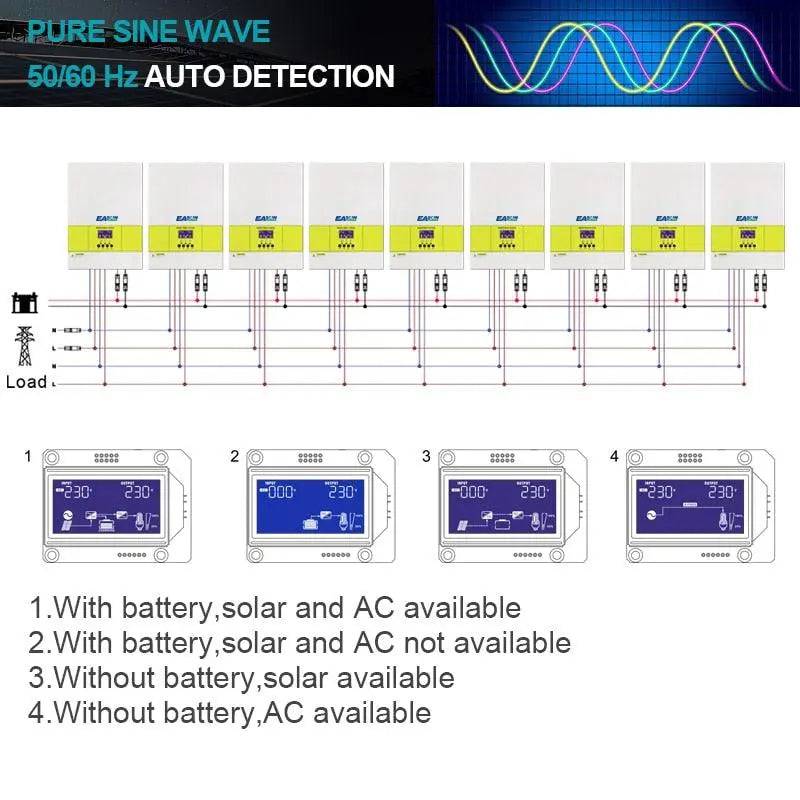

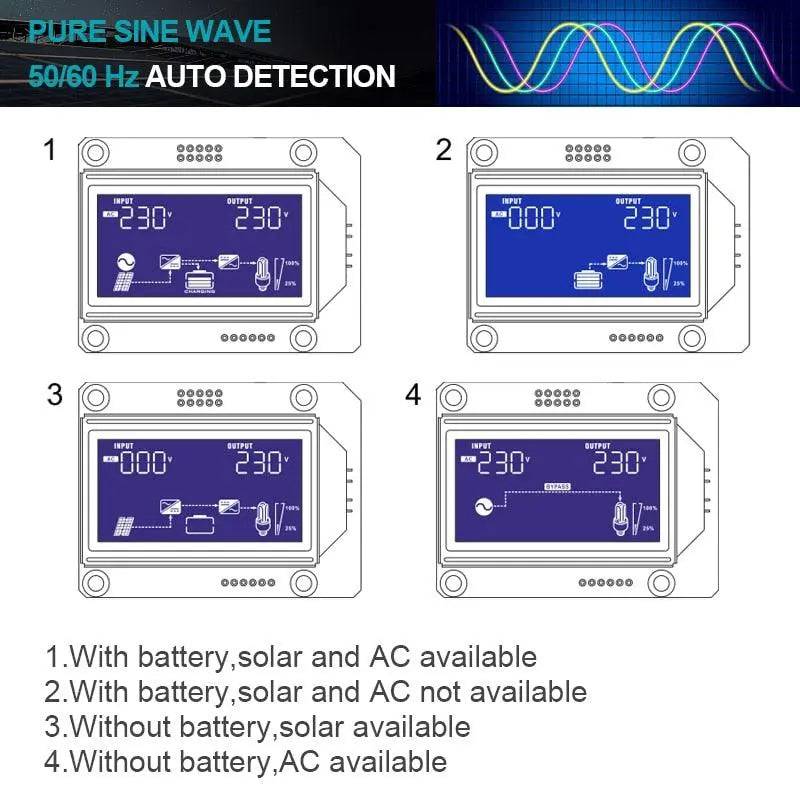

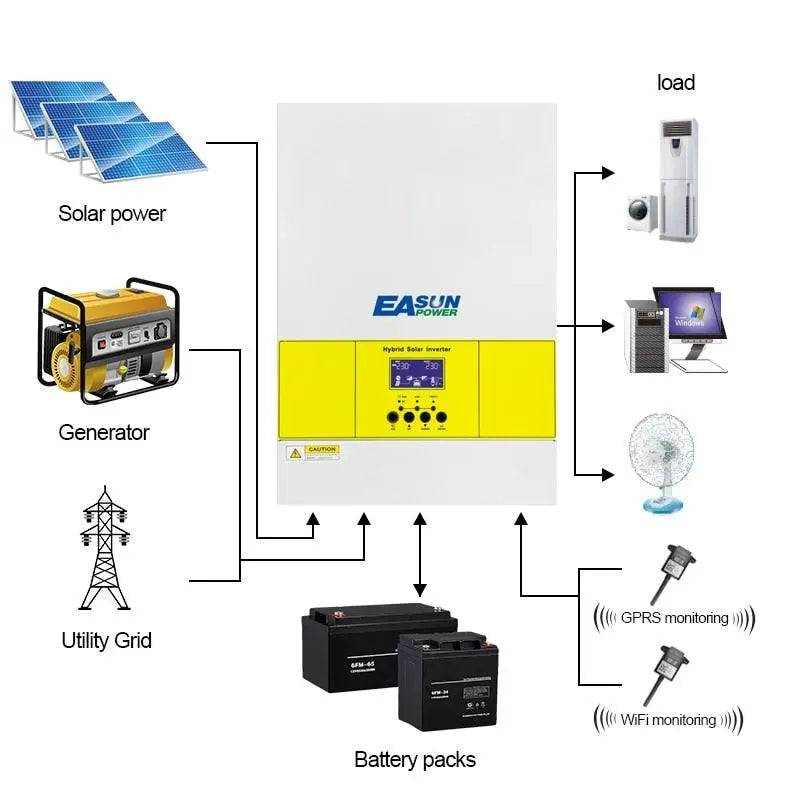

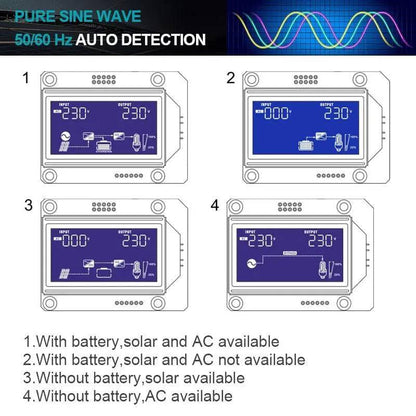

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- *pure sine wave soalr inverter
- *Output power factor 1
- *High PV input voltage range
- *Built-in MPPT soalr controller
- *Battery equalization function to optimize
- Battery performance and extend lifecycle
- *Inverter running without barrery
- *Built-in anti-dusk kit for harsh environment
- *WIFI-GPRS remote monitoring(Optional)
- *Detachable LCD(Optional)
|
MODEL |
IsolarSMG II 3.6K |
IsolarSMG II 5.6K |
|
CAPACITY |
3.6KVA/3.6KW |
5.6KVA/5.6KW |
|
ParallelCapability |
NO |
NO |
|
INPUT |
||
|
NominalVoltage |
230VAC |
|
|
AcceptableVoltageRange |
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances) |
|
|
Frequency |
50/60Hz(Autosensing) |
|
|
OUTPUT |
||
|
NominalVoltage |
220/230VAC±5% |
|
|
SurgePower |
7000VA |
11000VA |
|
Frequency |
50/60Hz |
|
|
Waveform |
PureSinewave |
|
|
TransferTime |
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances) |
|
|
PeakEfficiency(PVtoINV) |
96% |
|
|
PeakEfficiency(BatterytoINV) |
93% |
|
|
OverloadProtection |
5s@>=150%load;10s@110%-150%load |
|
|
CrestFactor |
3:1 |
|
|
AdmissiblePowerFactor |
0.6-1(inductiveorcapacitive) |
|
|
BATTERY |
||
|
BatteryVoltage |
24VDC |
48VDC |
|
FloatinghargeVoltage |
27VDC |
54VDC |
|
OverChargeProtection |
33VDC |
63VDC |
|
ChargingMethod |
CC/CV |
|
|
SolarCharger&ACCharger |
||
|
SolarChargerTYPE |
MPPT |
|
|
Max.PVArraypower |
4000W |
5500W |
|
Max.PVArrayOpenCircuitVoltage |
500VDC |
|
|
PVArrayMPPTVoltageRange |
120VDC-450VDC |
|
|
Max.SolarlnputCurrent |
15A |
18A |
|
Max.SolarChargeCurrent |
100A |
100A |
|
Max.AC ChargeCurrent |
60A |
60A |
|
Max.ChargeCurrent |
100 |
100A |
|
PHYSICAL |
||
|
Dimensions,DxWxH(mm) |
482x290x113 |
|
|
PackageDimensions,DxWxH(mm) |
565x380x190 |
|
|
NetWeight(Kgs) |
9 |
10 |
|

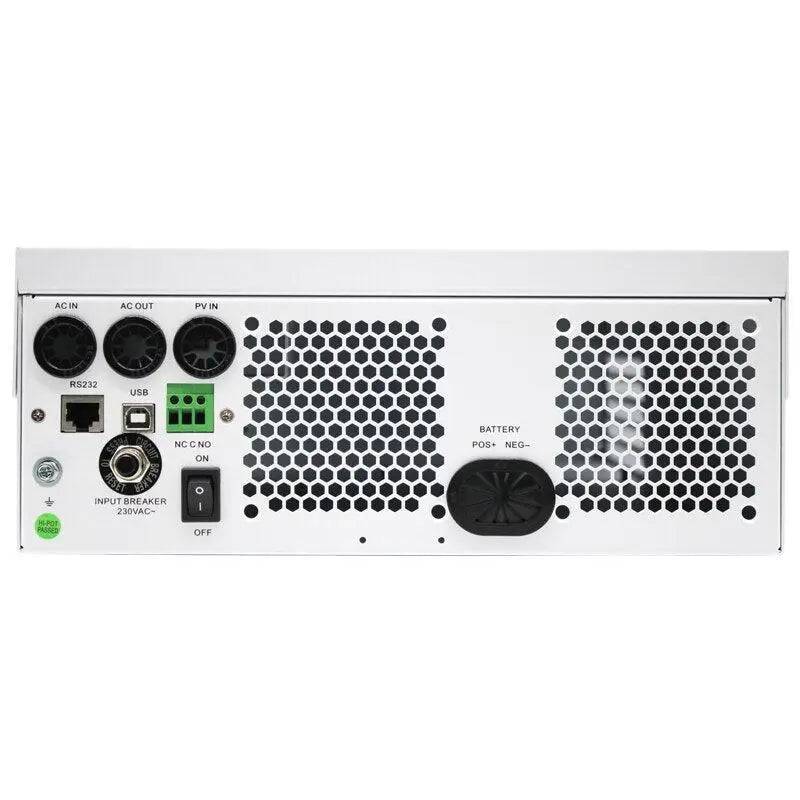

Communicationlnterface |
USB/RS232/Dry-contact |
|
|
ENVIRONMENT |
||
|
OperatingTemperatureRange |
-10℃to50℃ |
|
|
Storagetemperature |
-15℃to60℃ |
|
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
