54 Energy - Renewable Energy Store

Solar Inverter 5000VA/5000W 15KW Battery Charger 3Phase 80A MPPT Parallel Inverter 48V 230VAC 380V Pure Sine Wave Hybrid Inverter With

Solar Inverter 5000VA/5000W 15KW Battery Charger 3Phase 80A MPPT Parallel Inverter 48V 230VAC 380V Pure Sine Wave Hybrid Inverter With

Regular price $2,968.97
Regular price Sale price $2,968.97
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From

SPECIFICATIONS

  • Vercharge protection: 64VDC
  • Type: Hybrid Inverter/On-Off Grid
  • Is_customized: Yes
  • WiFi function: Yes
  • Weight: 41KG
  • Type: DC/AC Inverters
  • Parallel function: Yes, 9 units
  • Output voltage: 220V ~ 240Vac auto-sensing
  • Output Type: Single
  • Output Power: 15KW
  • Output Frequency: 50Hz/60Hz auto detect
  • Nominal power: 15000VA/15000W
  • Model Number: SMP 15KW
  • Maximum open circuit voltage of the PV array: 500 VDC Output
  • Maximum charging current: 80A
  • MPP range @ operating voltage: 240 VDC ~ 430 VDC
  • Certification: CE
  • Battery voltage: 48Vdc
  • 15KW 3Phase Solar Inverter 500Vdc 80A MPPT Parallel Inverter 48V 230VAC 380V Pure Sine Wave Hybrid Inverter With Battery Charger

Features:

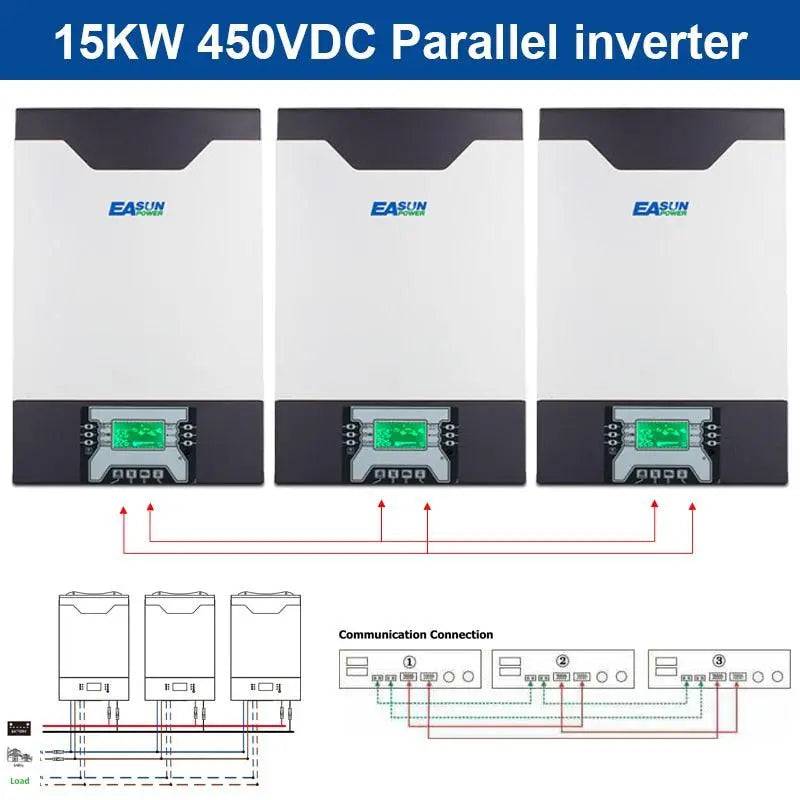

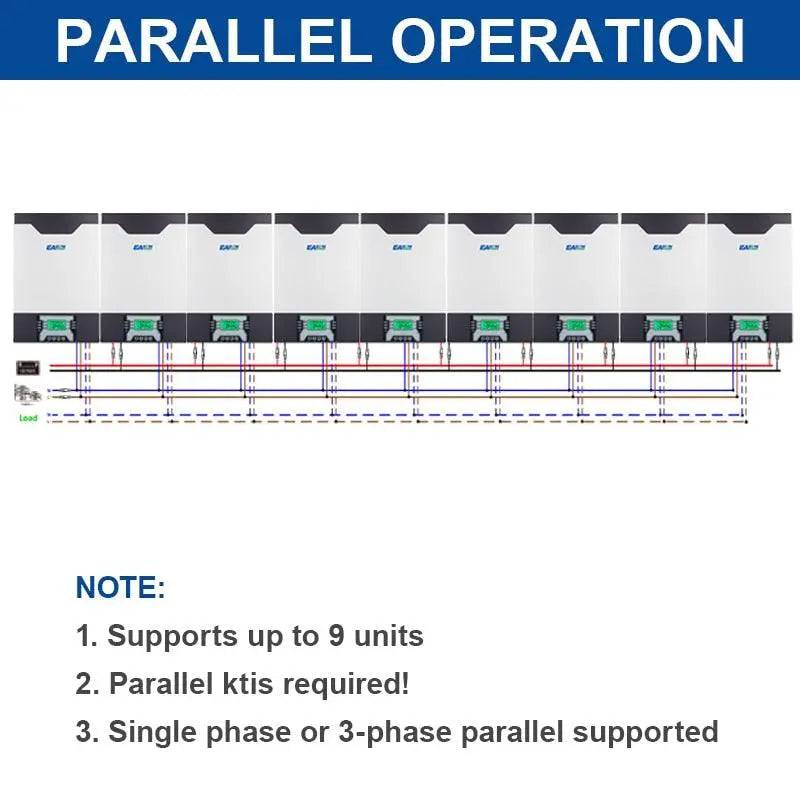

  • · Max.can be 9 pcs in parallel with optional kit
  • · Efficiently work with or without battery
  • · MPPT Solar Charge Controller up to
  •  5000W solar panel
  • · Built - in Wifi for mobile monitoring
  • (Requires APP)
  • · Compatible with (Li-ion,LiFePo4 and etc.)batteries
  • · Battery Equalization
  • Rated Power
  • 5000VA/5000W
  • INPUT
  • Voltage
  • 230VAC
  • Voltage Range
  • 176-280 VAC at 100% load
  • Voltage Range
  • 110-280 VAC at 50% load
  • Frequency Range
  • 50Hz/60Hz(Auto sensing)
  • OUTPUT
  • AC Voltage Regulation(Batt.Mode)
  • 230VAC±3%
  • Surge Power
  • 10400VA for 5 sec
  • Efficiency(Peak)
  • >95% ( Rated R load, battery fully charged
  • Transfer Time
  • 10ms typical (UPS)
  • Transfer Time
  • 20ms typical (Appliances)
  • Waveform
  • Pure sine wave
  • BATTERY
  • Battery Voltage
  • 48 VDC
  • Floating Charge Voltage
  • 54 VDC
  • Overcharge Protection
  • 64 VDC
  • SOLAR CHARGER & AC CHARGER
  • Solar Charger Type
  • MPPT
  • Maximum PV Array Open Circuit Voltage
  • 500VDC
  • Maximum PV Array Power
  • 5000W
  • MPP Range@ Operating Voltage
  • 120-450VDC
  • Maxmum Solar Charge Current
  • 80A
  • Maximum AC Charge Current
  • 60A
  • PHYSICAL
  • Products Dimension,D X W X H(mm)
  • 456*303*147
  • Product Net Weight(kgs)
  • 12
  • Packing Dimension,D X W X H (mm)
  • 530*377*217,1PC/CTN
  • Product Net Weight(kgs)
  • 13.5
  • Communication Interface
  • Removable OTG USB/RS232/RS458/BLE/Dry-contact
  • OPERATING ENVIRONMENT
  • Humidity
  • 5% to 95% Relative Humidity(Non-condensing)
  • Operating Temperature
  • -10℃to 50℃
  • Storage Temperature
  • -15℃to 60℃
