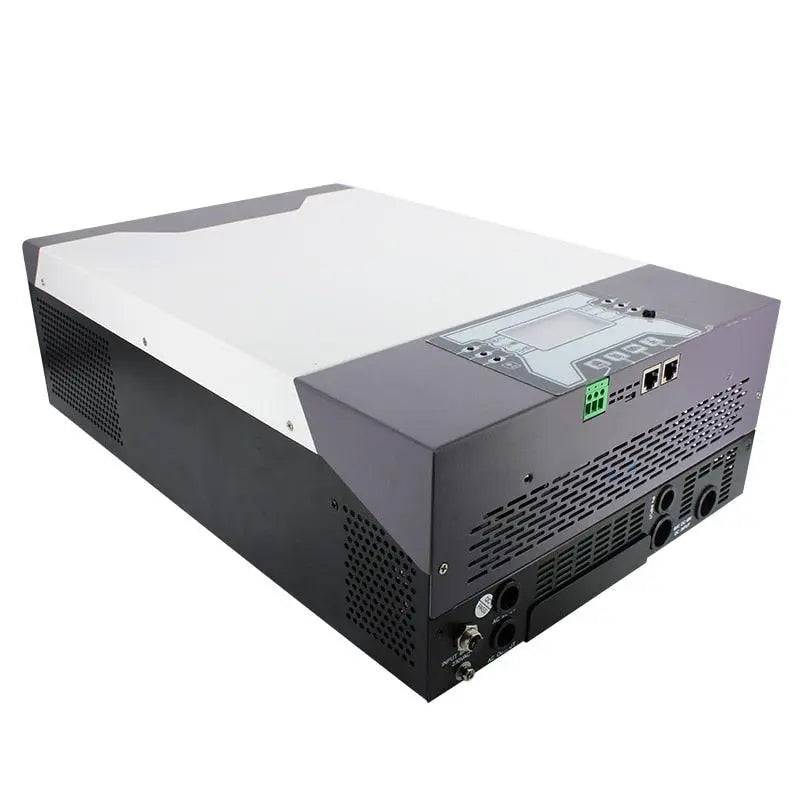

Solar Inverter 5000W Parallel Inverter 5Kva 500Vdc PV 80A MPPT Pure Sine Wave Hybrid Inverter Battery Charger 230V 48V
Solar Inverter 5000W Parallel Inverter 5Kva 500Vdc PV 80A MPPT Pure Sine Wave Hybrid Inverter Battery Charger 230V 48V
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- Weight: 13.5KG
- Waveform: Pure sine wave
- Voltage Range: 176-280 VAC
- Voltage: 230VAC
- Type: DC/AC Inverters
- Transfer Time: 10ms typical (UPS)
- Surge Power: 10400VA for 5 sec
- Solar Charger Type: MPPT
- Size: 530*377*217
- Rated Power: 5000VA/5000W
- Product Net Weight(kgs): 13.5
- Packing Dimension,D X W X H (mm): 530*377*217
- Overcharge Protection: 64 VDC
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50HZ/60HZ
- Output Current: 80A
- Model Number: ISOLAR-SMP-5K
- Model: SMP 5KW
- Maxmum Solar Charge Current: 80A
- Maximum PV Array Power: 5000W
- Maximum PV Array Open Circuit Voltage: 500VDC
- Maximum AC Charge Current: 60A
- MPP Range@ Operating Voltage: 120-450VDC
- Frequency Range: 50Hz/60Hz
- Floating Charge Voltage: 54 VDC
- Communication Interface: Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface,
- Certification: CE,RoHS
- Battery Voltage: 48 VDC
- AC Voltage Regulation: 230VAC±3%
- · Max.can be 9 pcs in parallel with optional kit

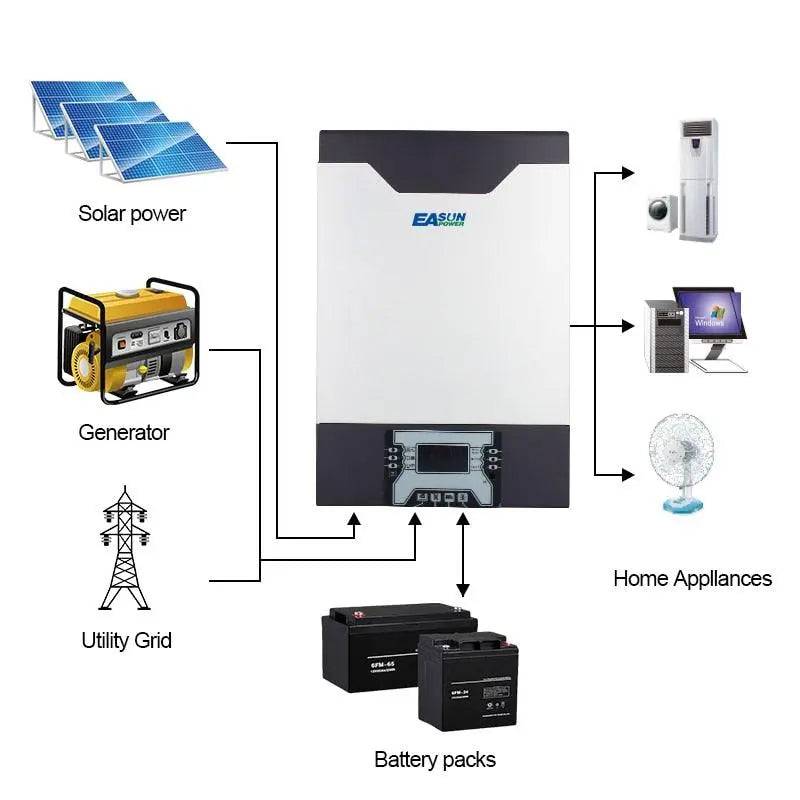

- · Efficiently work with or without battery
- · MPPT Solar Charge Controller up to 5000W solar panel
- · Built - in Wifi for mobile monitoring (Requires APP)
- · Compatible with (Li-ion,LiFePo4 and etc.) batteries
- · Battery Equalization
|
Model |
ISOLAR SMP 5KW |
|
Rated Power |
5000VA/5000W |
|
INPUT |
|
|
Voltage |
230VAC |
|
Voltage Range |
176-280 VAC at 100% load |
|
Voltage Range |
110-280 VAC at 50% load |
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation(Batt.Mode) |
230VAC±3% |
|
Surge Power |
10400VA for 5 sec |
|
Efficiency(Peak) |
>95% ( Rated R load, battery full charged |
|
Transfer Time |
10ms typical (UPS) |
|
Transfer Time |
20ms typical (Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
|
|
Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
64 VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger Type |
MPPT |
|

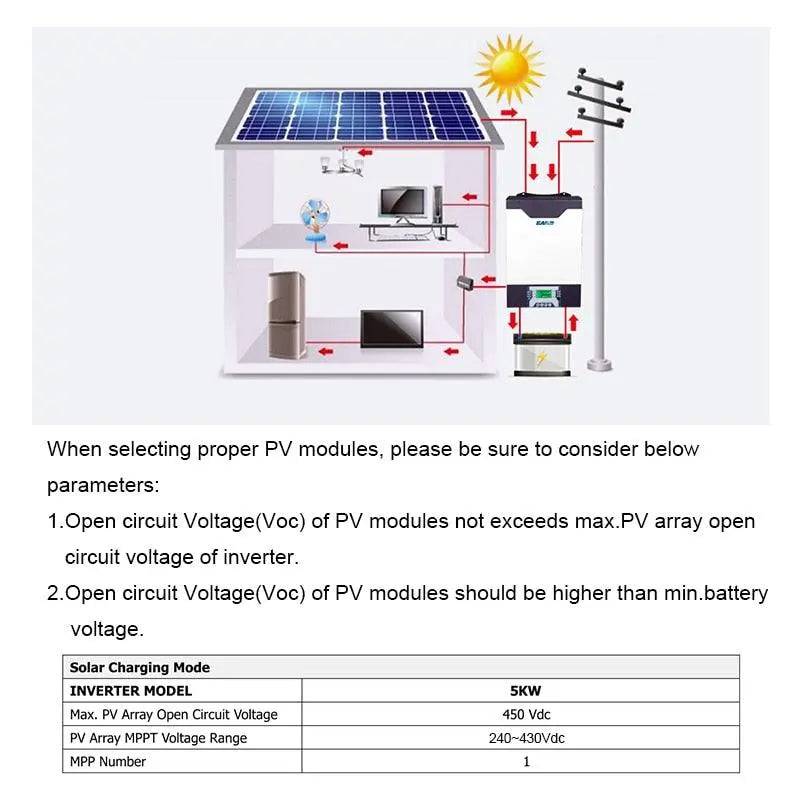

Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum PV Array Power |
5000W |
|
MPP Range@ Operating Voltage |
120-450VDC |
|
Maxmum Solar Charge Current |
80A |
|
Maximum AC Charge Current |
60A |
|
PHYSICAL |
|
|
Products Dimension,D X W X H(mm) |
456*303*147 |
|
Product Net Weight(kgs) |
12 |
|
Packing Dimension,D X W X H (mm) |
530*377*217,1PC/CTN |
|
Product Net Weight(kgs) |
13.5 |
|

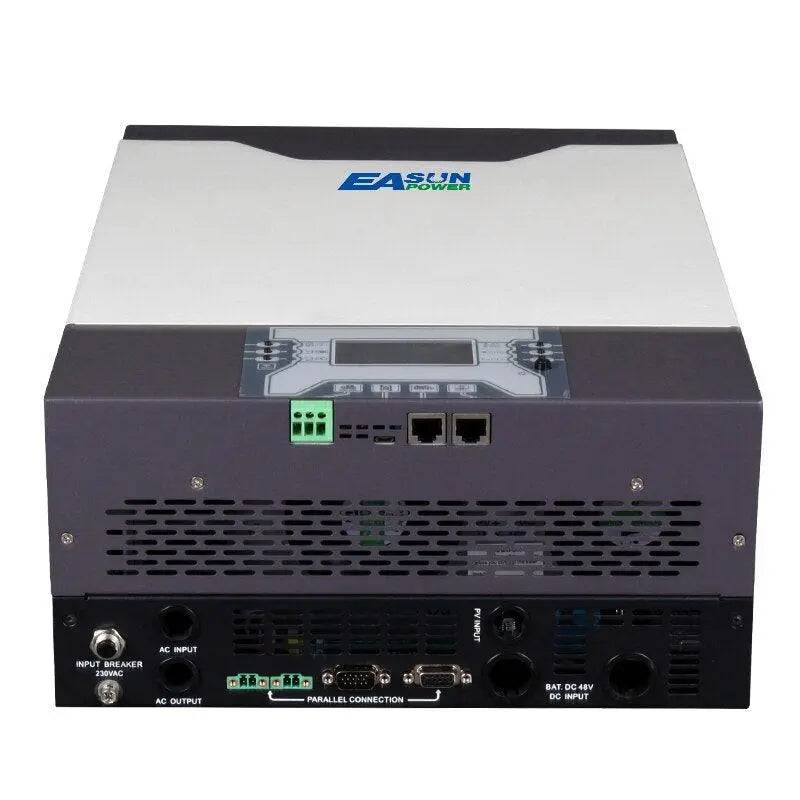

Communication Interface |
Removable OTG USB/RS232/RS458/BLE/Dry-contact |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10℃to 50℃ |
|
Storage Temperature |
-15℃to 60℃ |
|
*Product specifications are subject to change without further notice |
|
