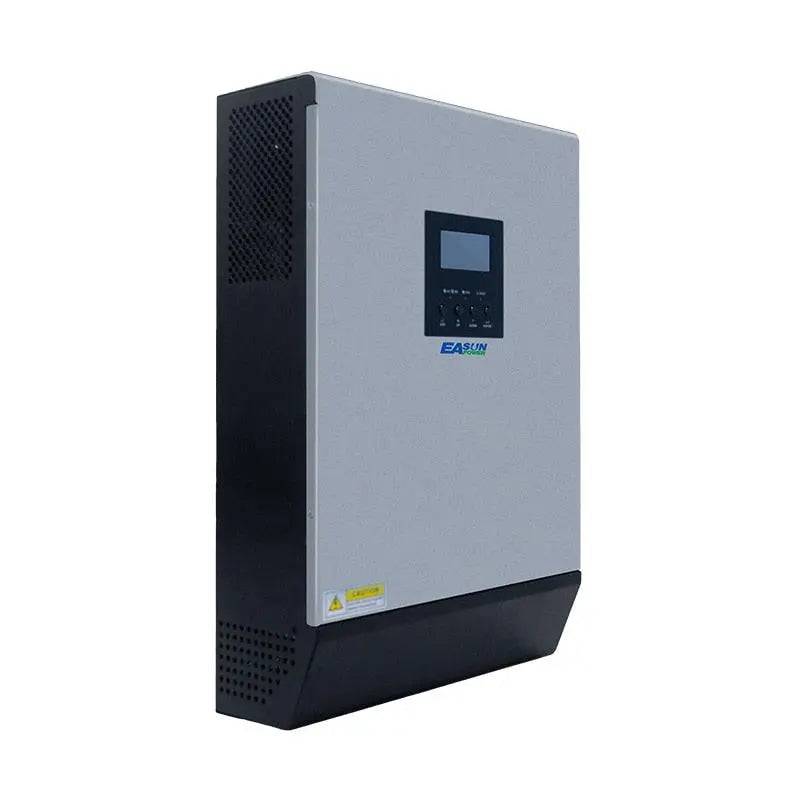

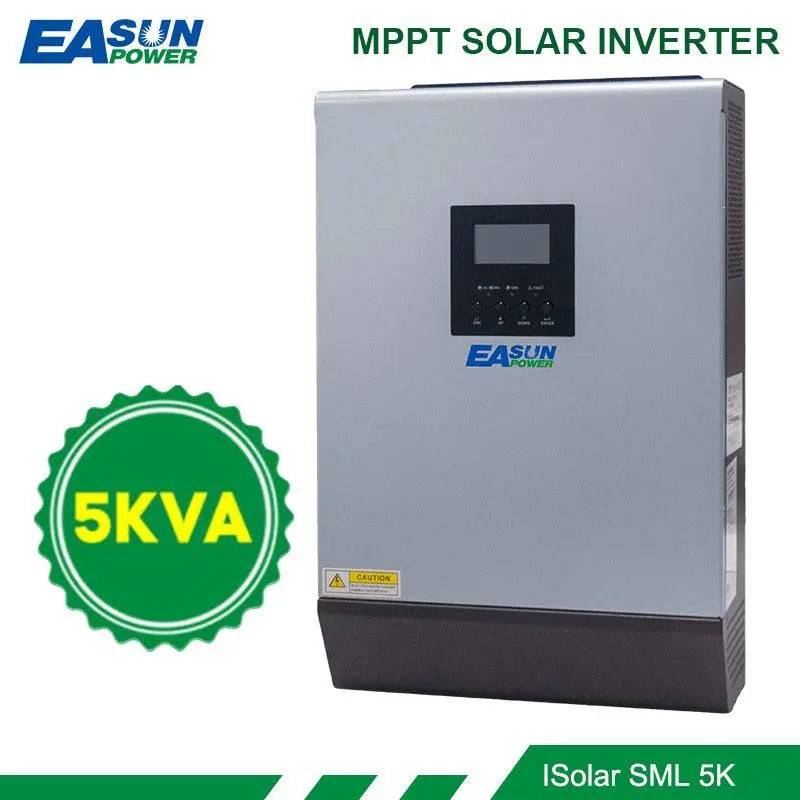

Solar Inverter 5KVA 4000W Pure Sine Wave 48V 230V Hybrid Inverter Built-in 60A MPPT off-Grid Solar Controller Battery Charger

Solar Inverter 5KVA 4000W Pure Sine Wave 48V 230V Hybrid Inverter Built-in 60A MPPT off-Grid Solar Controller Battery Charger

Regular price $735.74
Regular price Sale price $735.74
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • Is_customized: Yes
  • Weight: 13.0kg
  • Wave form: Pure sine wave
  • Type: DC/AC Inverters
  • Type: DC/AC Inverters
  • Size: 140 x295 x540 mm
  • Output Voltage: 220V/230V/240V
  • Output Type: Single
  • Output Power: 1 - 200KW
  • Output Frequency: 50hz/60hz
  • Output Current: 13A
  • Model Number: ISolar SML 5K
  • Model Number: MPS 5K-48V
  • Inverter Rated Power: 5KVA/4000W
  • Input Voltage: DC48V
  • Grid Type1: off-Grid Inverter, Hybrid Inverter
  • Grid Type: off-Grid Inverter
  • Circuit Topologies: Half-Bridge Type
  • Certification: CE
  • Build in Solar charge Controller: MPPT 48VDC 80A



Features:
  • Pure sine wave inverter

  • Built-in MPPT solar charge controller

  • Selectable input voltage range and frequency according to city power in your country

  • Charging current is stable according to your battery type

  • Configurable AC/Solar input priority via LCD setting

  • Compatible to mains voltage or generator power

  • Auto restart while AC is recovering

  • Overload and short circuit protection

  • Smart charging system optimizes battery performance

  • Cold start function



Model

Isolar-SML-5K

Rated power

5000VA

4000W

INPUT

Voltage

230VAC

Slectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Applicances)

Frequency Range

50Hz/60Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation

230VAC±5%

(Batt. Mode)

Surge Power

10000VA

Efficiency(Peak)

Transfer Time

10ms (For Personal Computer

20ms (For Home Applicances)

Waveform

Pure sine wave

BATTERY&AC CHARGER

Battery voltage

48VDC

Floating Charge Voltage

54VDC

Overcharge Protection

60VDC

Maximum Charge Current

20A or 30A

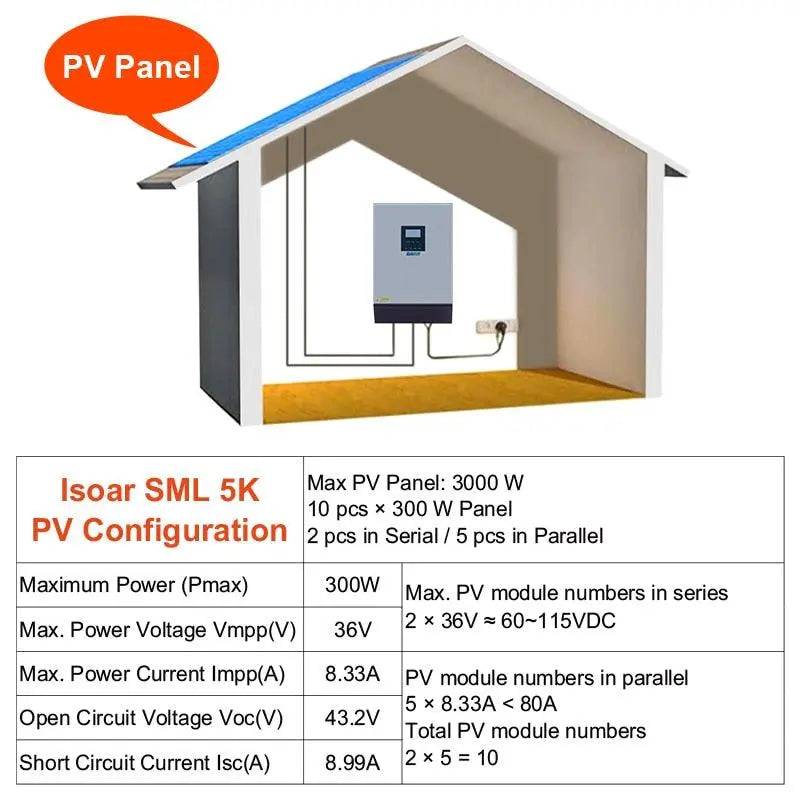

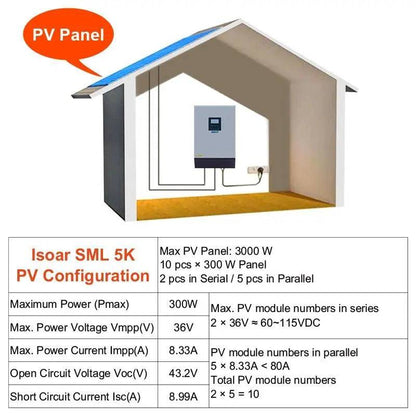

Maximum PV Array Power

3000W

MPPT Range@Operating Voltage

60VDC~115VDC

Maximum PV Array Open Circut Voltage

145VDC

Maximum Charging Current

80A

Maximum Efficiency

98%

Standby Power Consumption

2W

PHYSICAL

Dimension,

128*272*355

D*W*H(mm)

Net Weight(kgs)

13.5

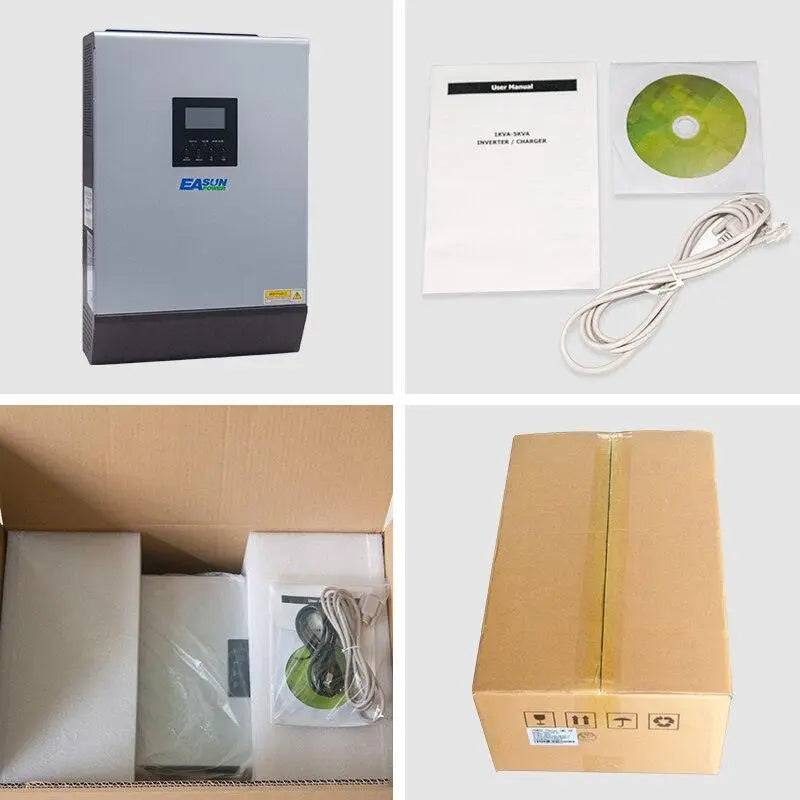

Package Including :

  • The unit x 1

  • User Manual(English) x 1

  • Communication cable x 1
