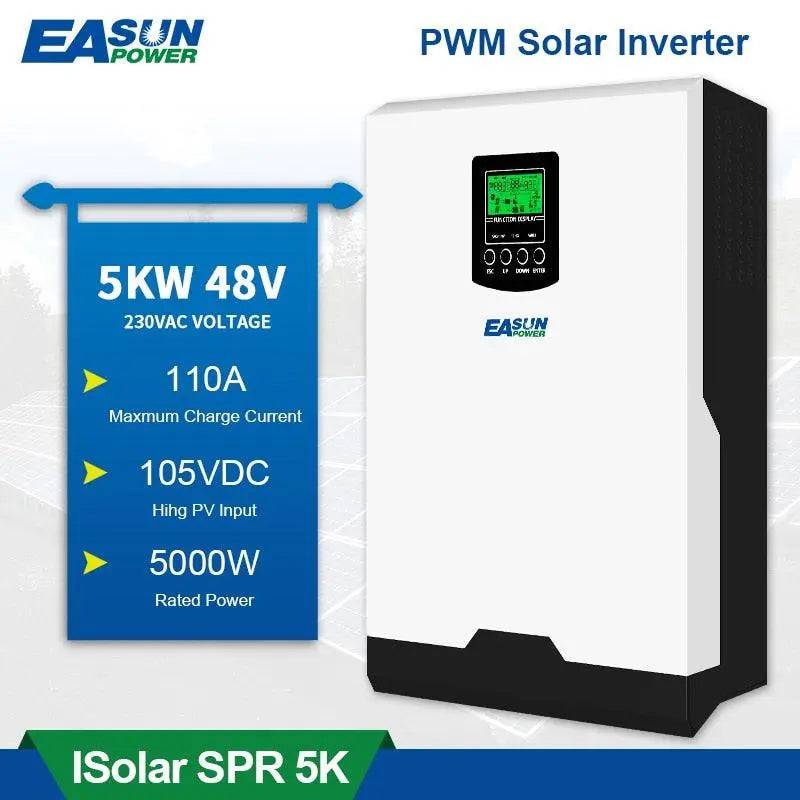

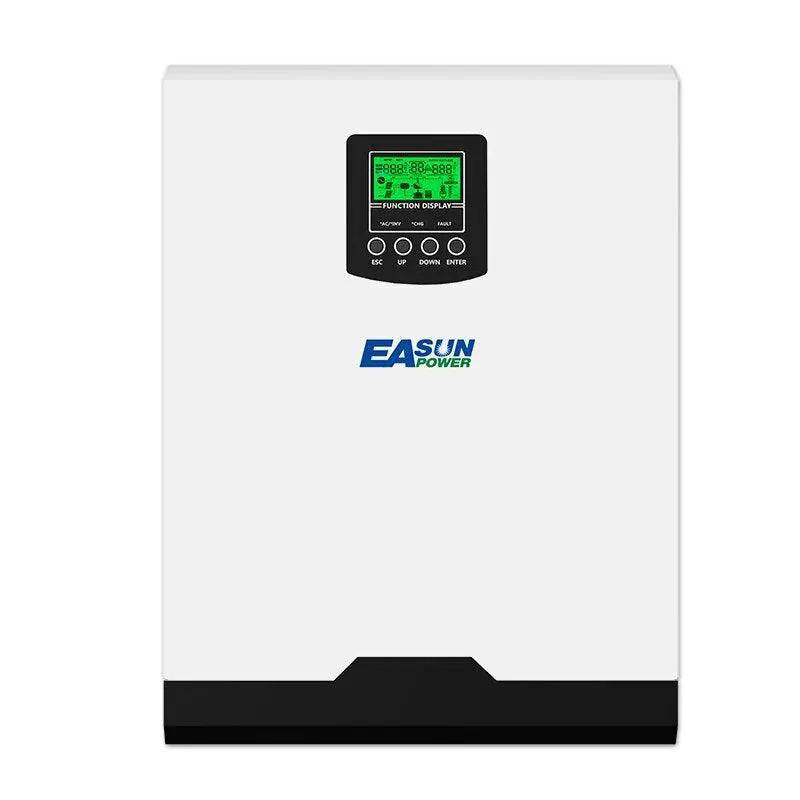

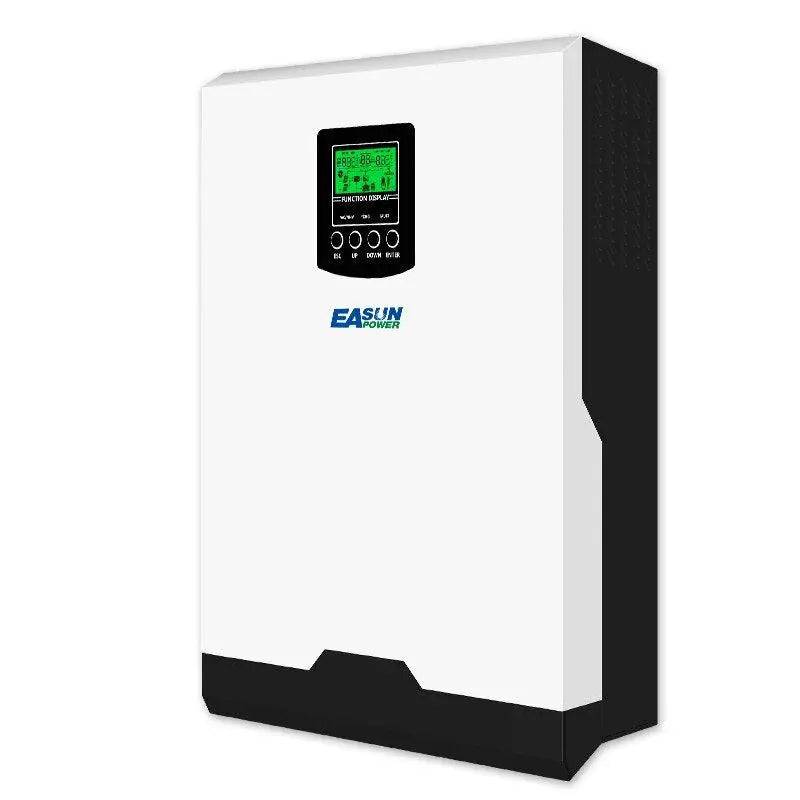

Solar Inverter 5KW Output Pure Sine Wave 220VAC Solar Charge Controller With 60A AC Charge 50A PWM 48V
Solar Inverter 5KW Output Pure Sine Wave 220VAC Solar Charge Controller With 60A AC Charge 50A PWM 48V
Couldn't load pickup availability
SPECIFICATIONS
- Is_customized: Yes
- Weight: 9.5KG
- Waveform: Pure sine wave
- Voltage: 220VAC/230VAC
- Type: DC/AC Inverters
- Surge Power: 10000VA
- Solar Charger type: PWM
- Solar Charge Current: 50A
- Size: 100 x 300 x 440mm
- Rated Power: 5000VA/5000W
- PV Open Voltage: 105VDC
- PV Array Power: 2400W
- Output Type: Single
- Output Power: 1 - 200KW
- Output Frequency: 50Hz/60HZ(Auto sensing)
- Output Current: 21.7A
- Model Number: ISolar-SPR-5KW-48V

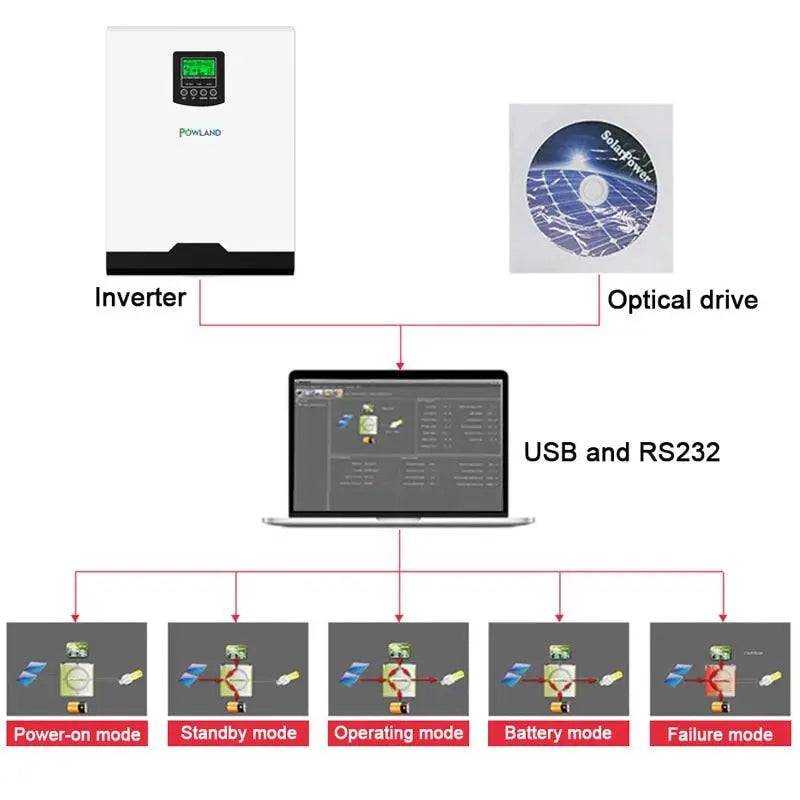

- Communication Interface: USB/RS232
- Certification: CE,RoHS
- Battery Voltage: 48VDC
- AC Charge Current: 60A
Features:
- Pure sine wave solar inverter
- Output power factor 1
- Selectable high-power charging current
- Wide DC input range
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/Solar input priority via LCD setting

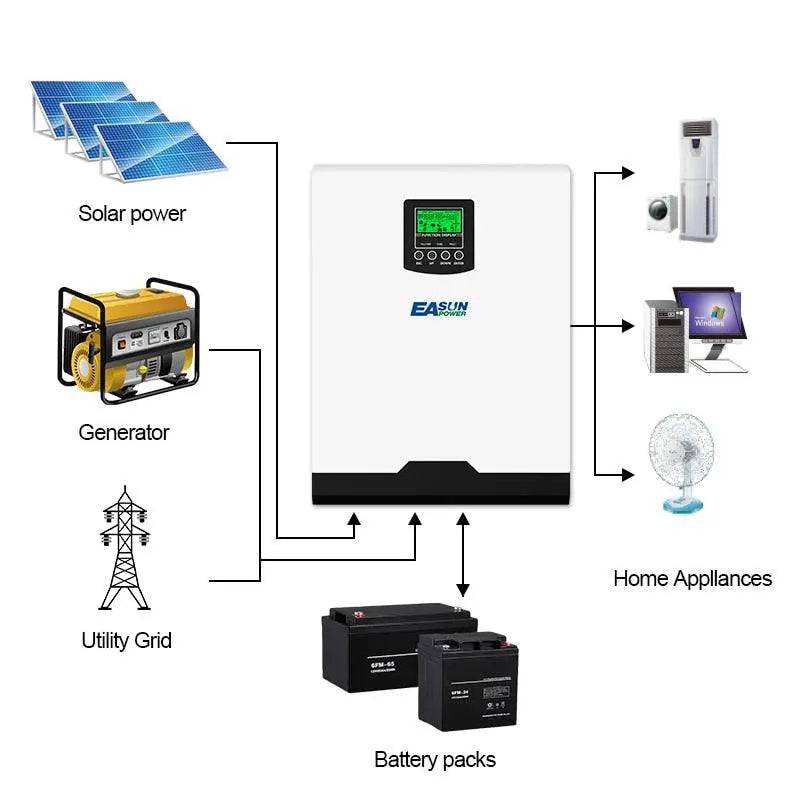

- Compatible to AC mains or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance cold start function
- Optional anti-dusk kit
|
MODEL |
ISolar-SPR-5K-48V |
|
Rated Power |
5000VA/5000W |
|
INPUT |
|
|
Voltage230 VAC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50Hz/60Hz(Autosensing) |
|
OUTPUT |
|
|
ACVoltageRegulation(Batt.Mode) |
230VAC ± 5% |
|
Surge Power |
10000VA |
|
Efficiency (Peak) |
90%～93% |
|
Transfer Time |
10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure Sinewave |
|
BATTERY |
|
|
Battery Voltage |
48VDC |
|
Floating Charge Voltage |
54VDC |
|
Overcharge Protection |
63VDC |
|
SOLAR CHARGER&ACCHARGER |
|
|
Solar Charger type |
PWM |
|
MaximumPVArray Open CircuitVoltage |
105VDC |
|
Maximum PV Array Power |
2400W |
|
MPPT Range@OperatingVoltage |
N/A |
|
Maxmum Solar Charge Current |
50A |
|
Maximum AC Charge Current |
60A |
|
Maximum Charge Current |
110A |
|
PHYSICAL |
|
|
Dimension,D x W x H(mm) |
100x300x440 |
|
Net Weight (kgs) |
8.5 |
|
Communication Interface |
USB/RS232 |
|
ENVIRONMENT |
|
|
Humidity |
5% to95%Relative Humidity(Non |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-15°C to 60°C |
