Solar Inverter 8000W 60A MPPT 10KVA Off Grid Inverter 48V 220V Pure Sine Wave Hybrid Inverter 60A Battery Charger

Solar Inverter 8000W 60A MPPT 10KVA Off Grid Inverter 48V 220V Pure Sine Wave Hybrid Inverter 60A Battery Charger

Regular price $1,661.00
Regular price Sale price $1,661.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • Is_customized: Yes
  • Weight: 32KG
  • Type: DC/AC Inverters
  • Size: 55cm x 38cm x 21cm (21.65in x 14.96in x 8.27in)
  • Output Type: Single
  • Output Power: 1 - 200KW
  • Output Frequency: 50HZ/60HZ
  • Output Current: load
  • Origin: Mainland China
  • Model Number: ISolar SML 10K
  • Certification: CE


Features:
  • Pure sine wave inverter
  • Built-in MPPT solar charge controller
  • Selectable input voltage range and frequency according to city power in your country
  • Charging current is suitable according to your battery type
  • Configurable AC/Solar input priority via LCD setting
  • Compatible with mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short-circuit protection
  • Intelligent charging system optimizes battery performance
  • Cold start function

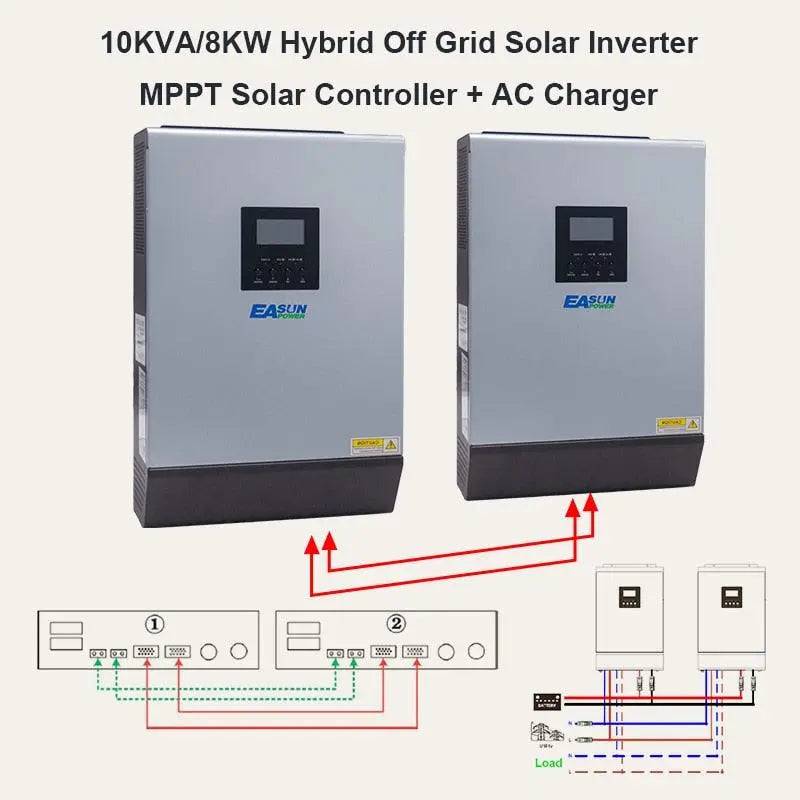

  • Parallelable up to 6 units which are available on 4K/5Kva only

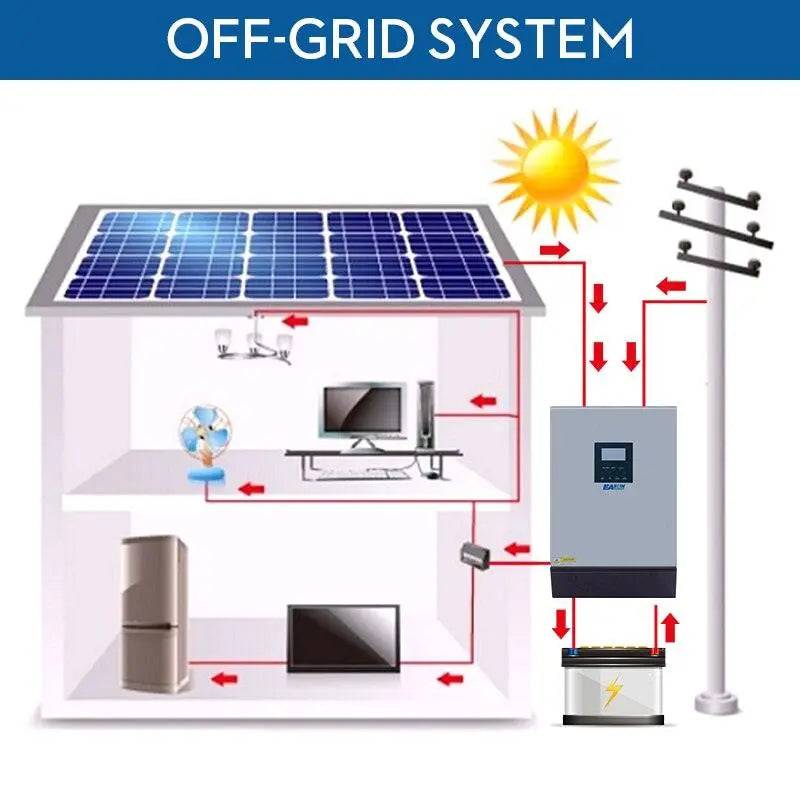

  • Basic System Architechture:
  • The following illustration shows the basic application for this inverterarger.It also includes the following devices to have a complete running system :

  • Generator or Utility
  • PV modules (Option)

  • Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in the home or office environment, including motor-type appliances such as tube lights,  fans,refrigerator, and air conditioners
  • Model: ISolar SML 5K
  • Rated power: 5000VA/4000W
  • INPUT
  • Voltage: 230VAC
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers)/90-280 VAC (For Home Appliances)
  • Frequency Range : 50Hz/60Hz (Auto Sensing)
  • OUTPUT
  • AC Voltage Regulation: 230VAC±5%
  • (Batt. Mode)
  • Surge Power: 10000VA

  • Efficiency(Peak)
  • Transfer Time: 10ms (For Personal Computer/20ms (For Home Appliances
  • Waveform: Pure sine wave
  • BATTERY&AC CHARGER
  • Battery voltage: 48VDC
  • Floating Charge Voltage: 54VDC
  • Overcharge Protection: 60VDC
  • Maximum Charge Current: 20A or 30A

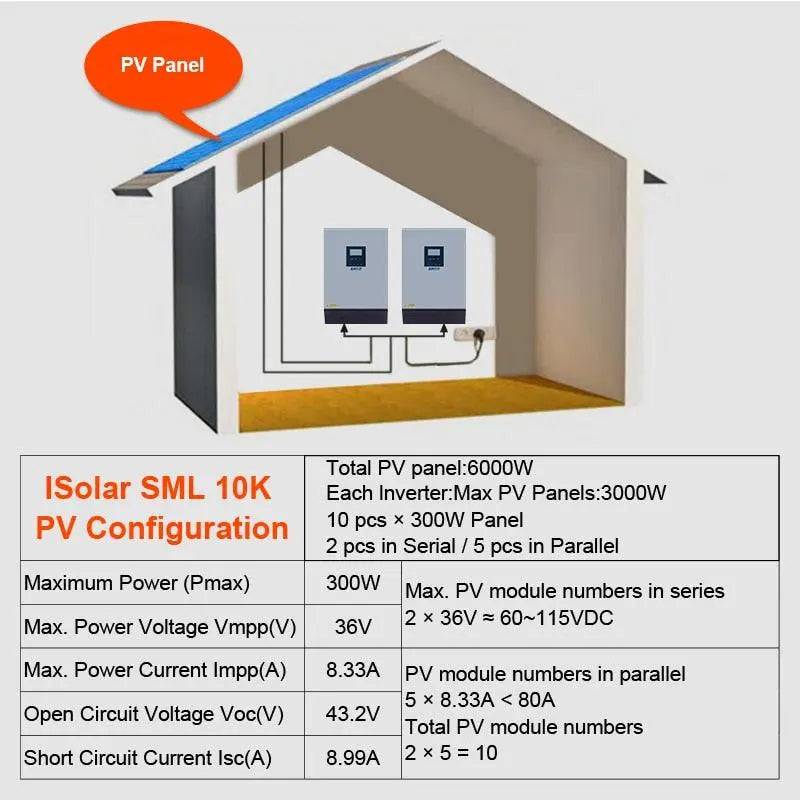

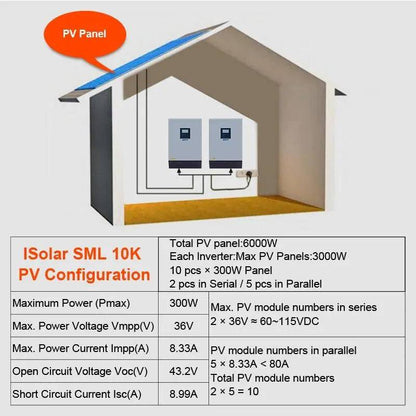

  • Maximum PV Array Power: 3000W
  • MPPT Range@Operating Voltage : 60VDC~115VDC
  • Maximum PV Array Open Circut Voltage: 145VDC
  • Maximum Charging Current: 80A
  • Maximum Efficiency: 98%
  • Standby Power Consumption: 2W
  • PHYSICAL
  • Dimension,: 128*272*355D*W*H(mm)
  • Net Weight(kgs) 13.5

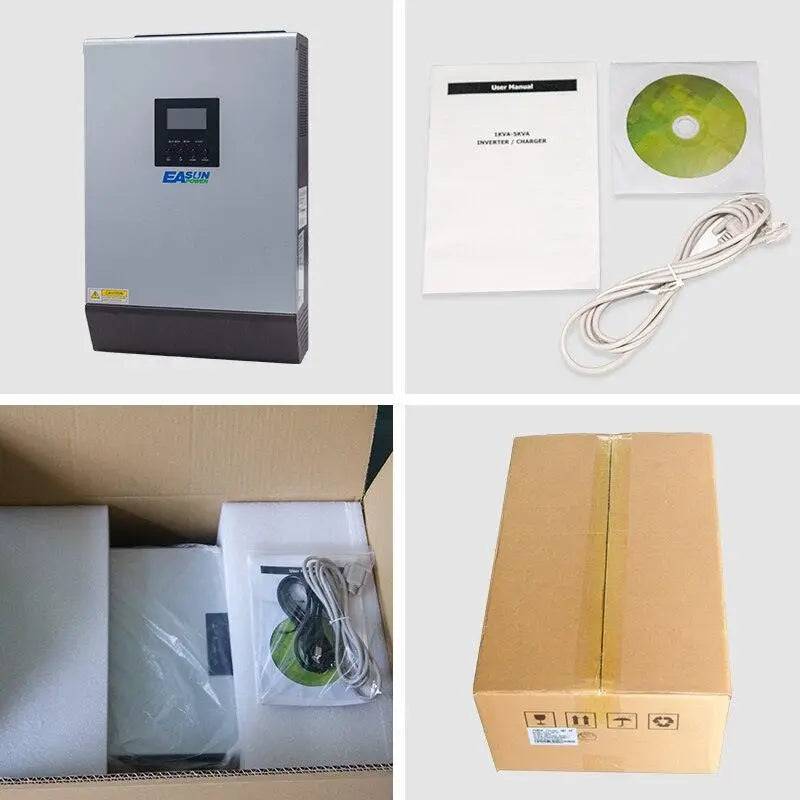

  • Package Including :
  • The unit x 1
  • User Manual(English) x 1
  • Communication cable x 1
  • Software CD x 1
