SPECIFICATIONS

is_customized: Yes

Voltage at maximum power: 18.0V

Type: Solar Panel

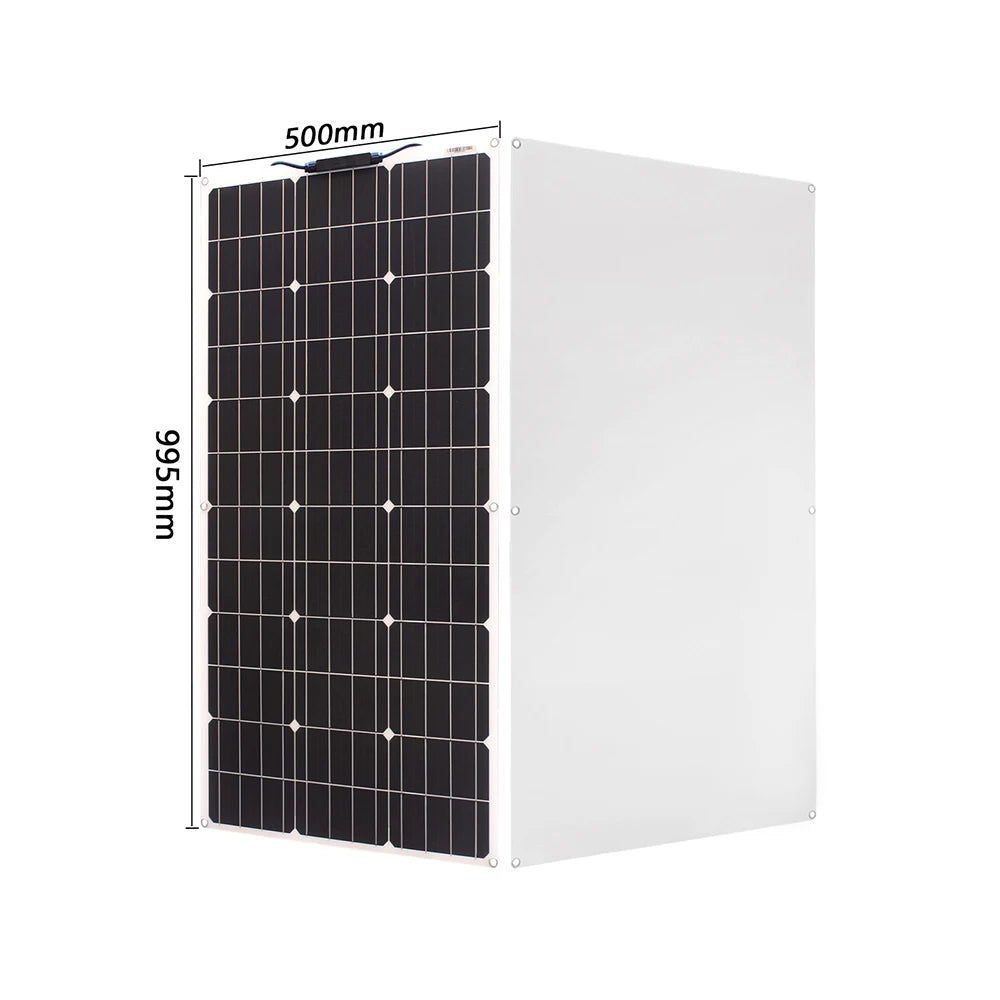

Size: 995x500mm

Short circuit voltage: 5.827A

Origin: CN(Origin)

Open circuit voltage: 21.6V

Number of Panels: 1

Number of Cells: 36PCS

Nominal Capacity: 100watt

Model Number: RGN36-100

Maximum Power: 100W

Max. Power: 100 WATT

Material: Monocrystalline Silicon

Foldable Solar Panel: No

Flexible Solar Panel: Yes

Current at maximum power: 5.555A

Certification: CE

Certification: RoHS

Brand Name: dgsunlight

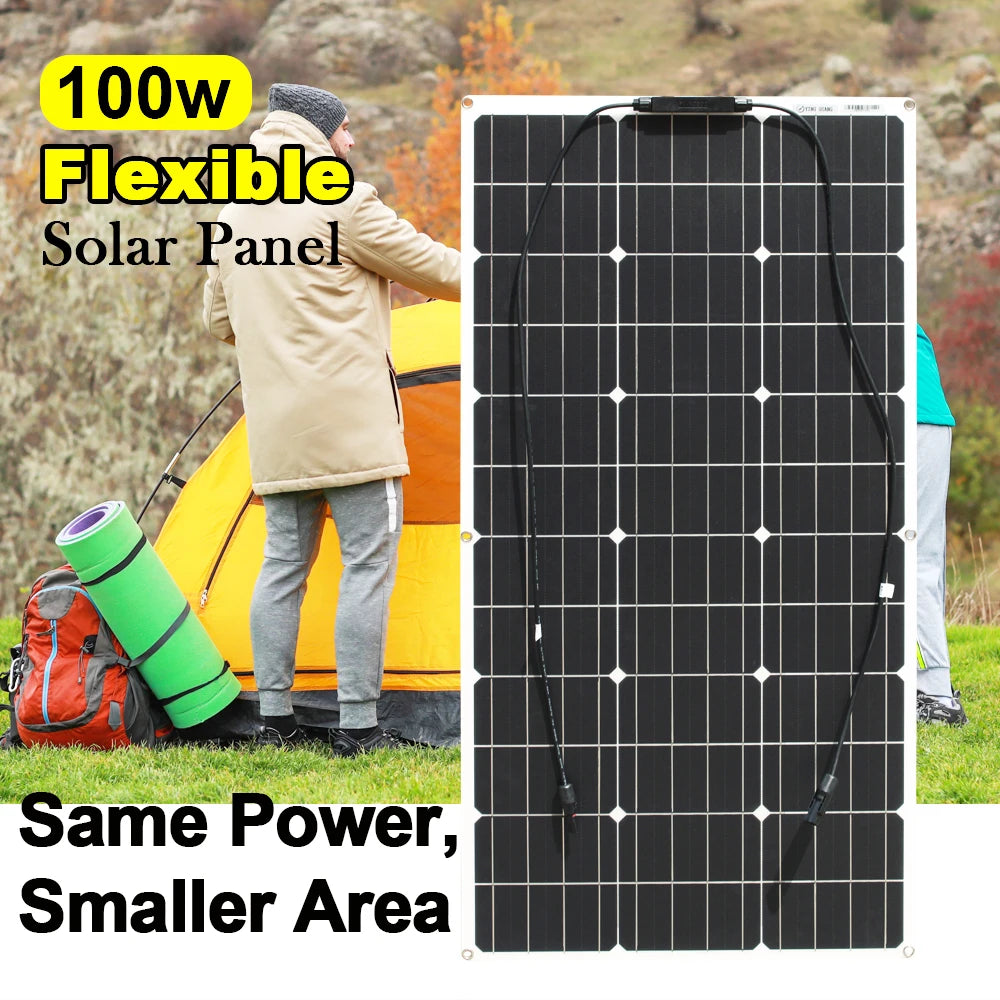

New Design

Select high-efficiency 158*158mm lines monocrystalline silicon solar cells,the power generation efficiency is about 1.3 times that of conventional polysilicone,and the overall area is smaller at the same power.

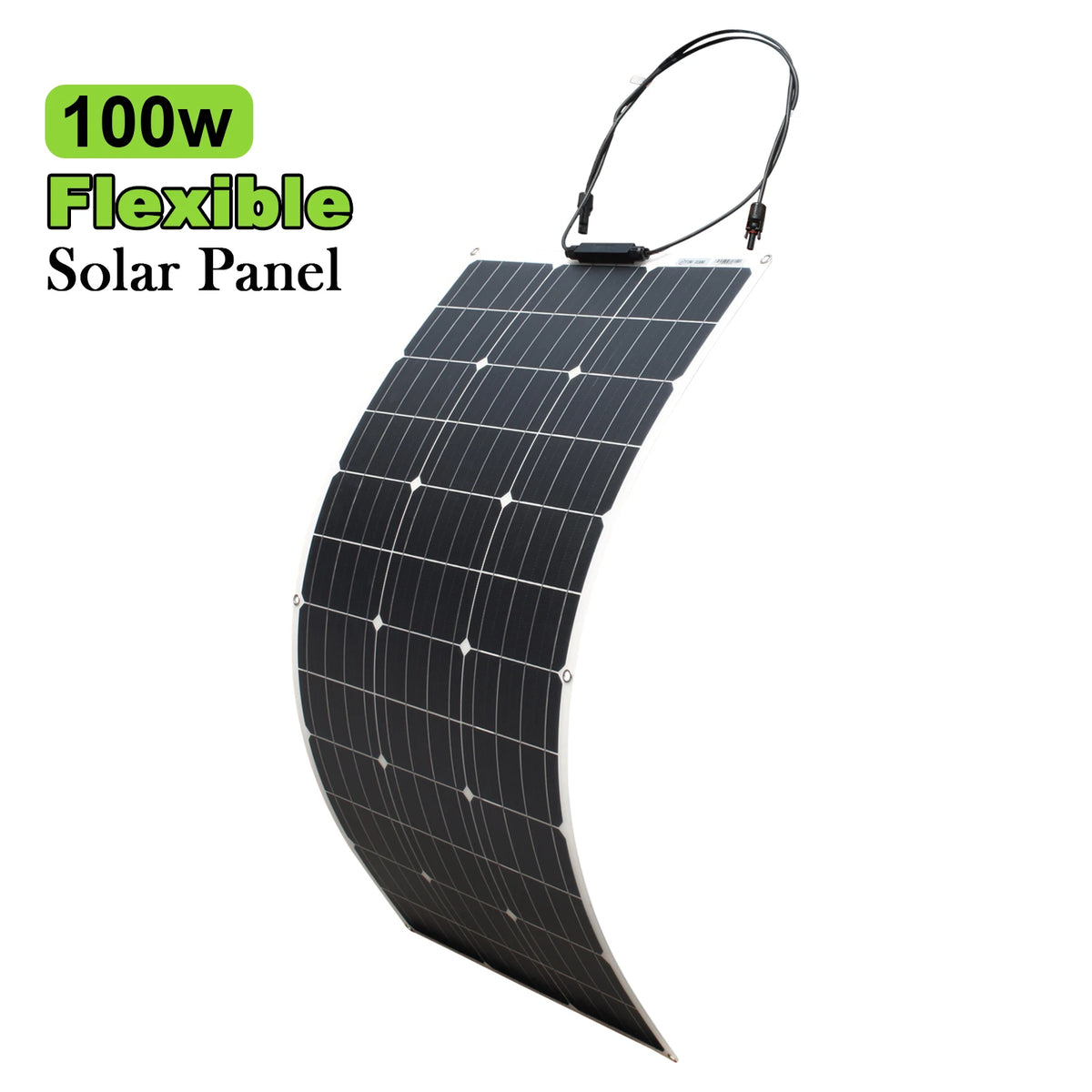

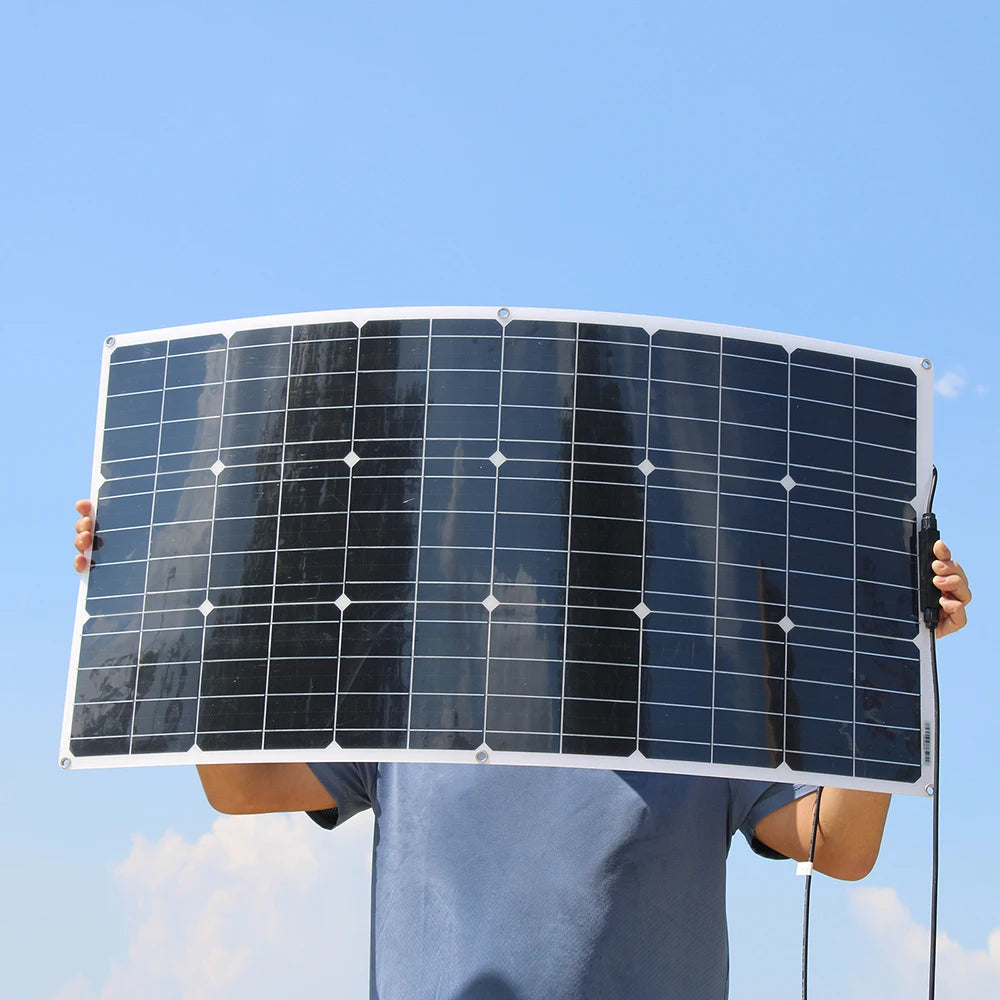

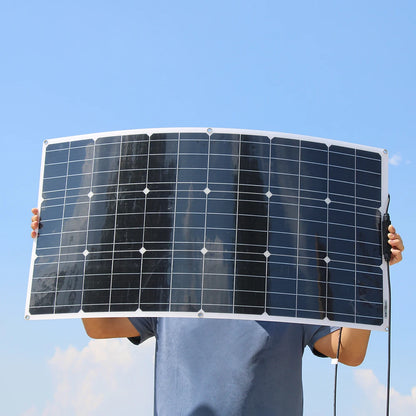

Good flexibility

The solar flexible panel can be bent 20 degrees for installation.It is allowed to be installed on trailers, boats, cabins,cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.

Super Thin Lamination

Hardly noticeable,this 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Light weight

Thanks to advanced polymer materials, this product weighs only 4.21lb,which 70% less than conventional solar panels, making transportation and installation a breeze.

Easy to install

The panel is easy to transport and mount, which is ideal for mobile applications, six evenly spaced metal grommet mounting holes are available to attach fasteners, the panel can also be mounting using adhesive or Velcro.

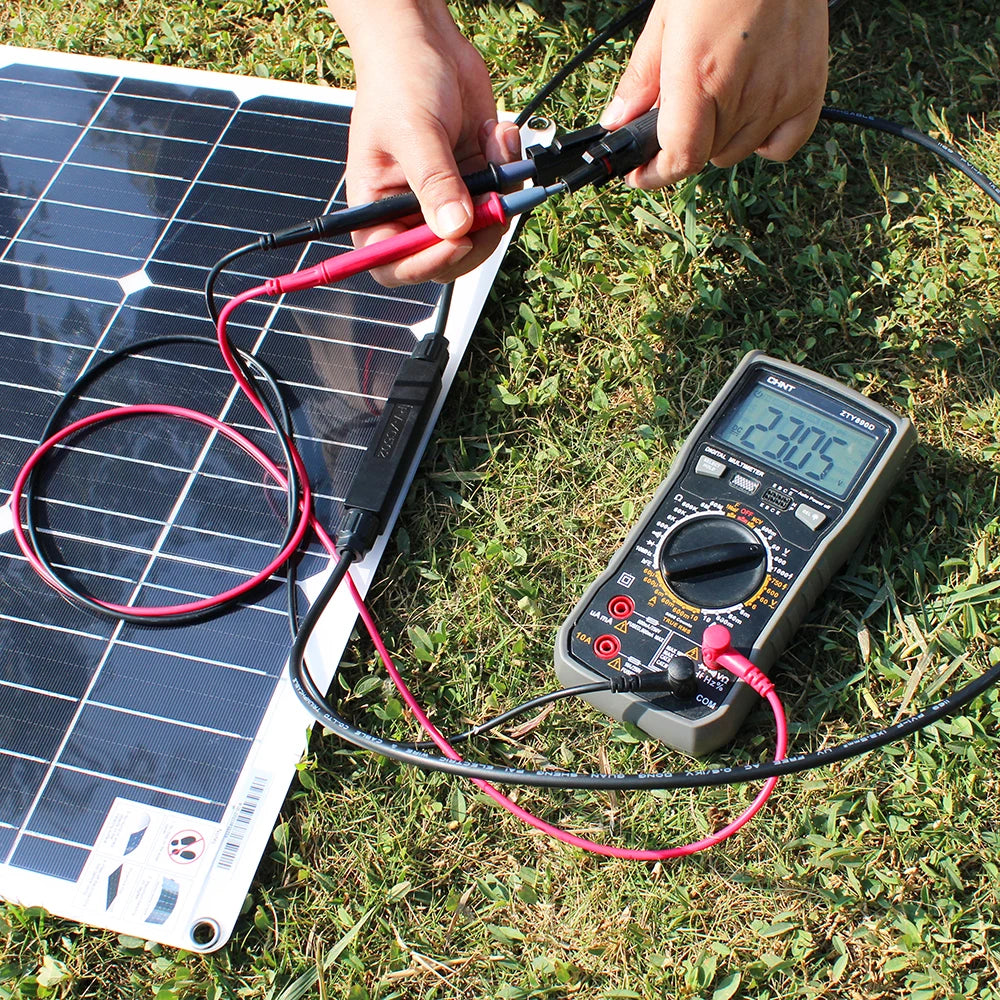

True Test Picture

Packing List

100W 16V solar panel *1

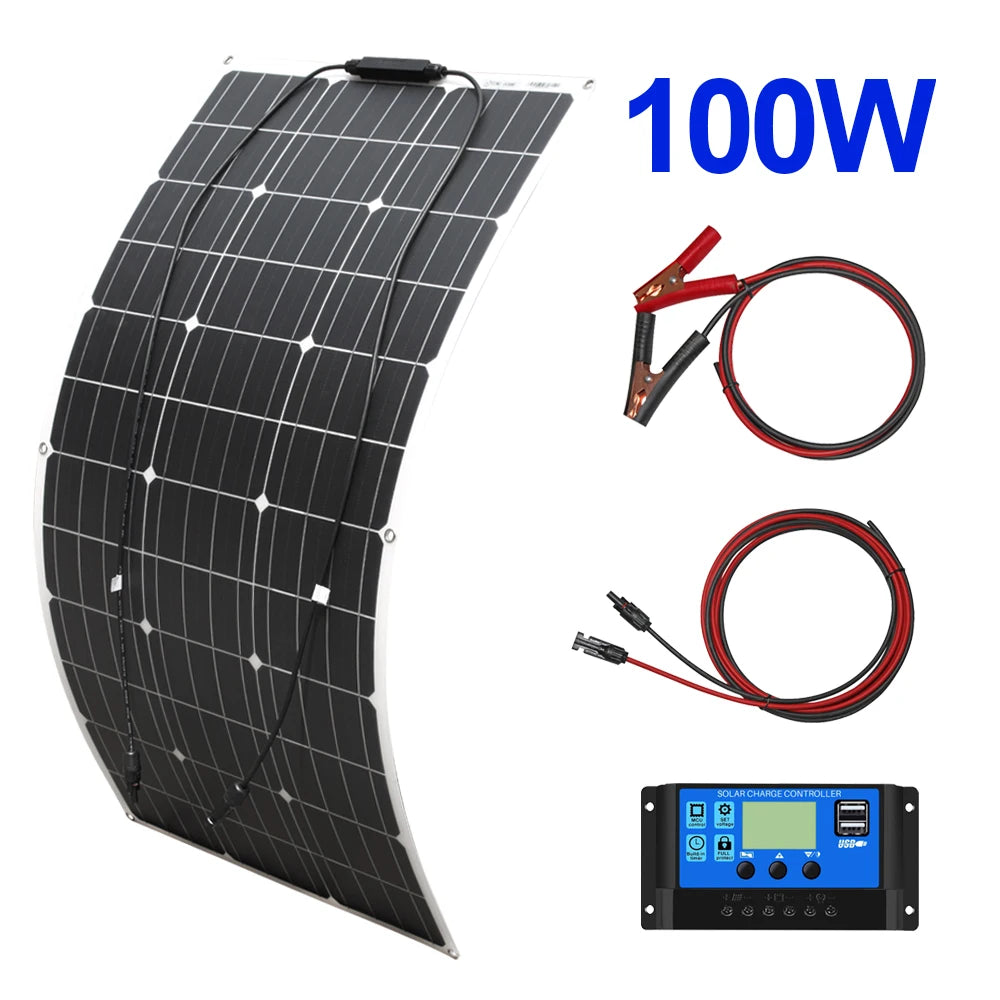

100W Solar Kit Packing List

100W 16V solar panel *1

3 meters extend cables *1

1 meter cable with alligator clips *1

10A 12V/24V solar charger regulator *1

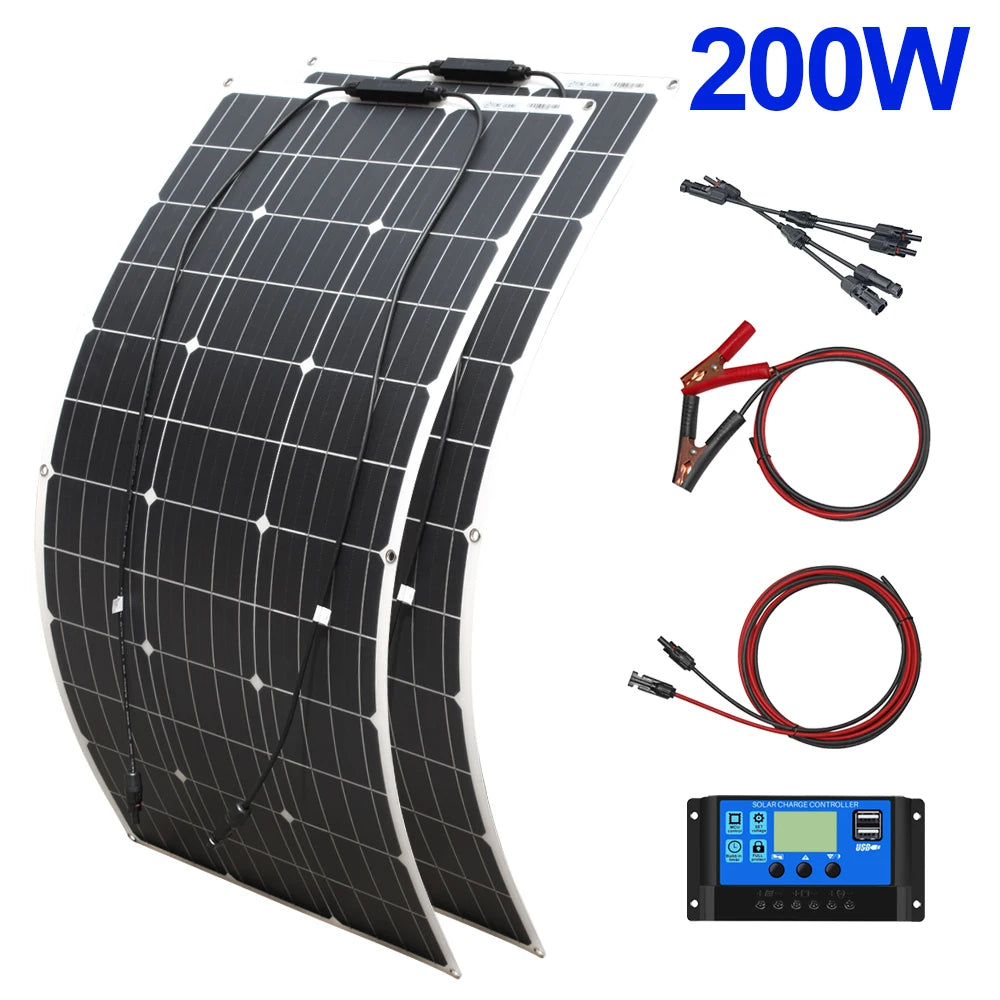

200W Solar Kit Packing List

100W 16V solar panel *2

2-in-1 PV parallel adapter *1

3 meters extend cables *1

1 meter cable with alligator clips *1

20A 12V/24V solar charger regulator *1

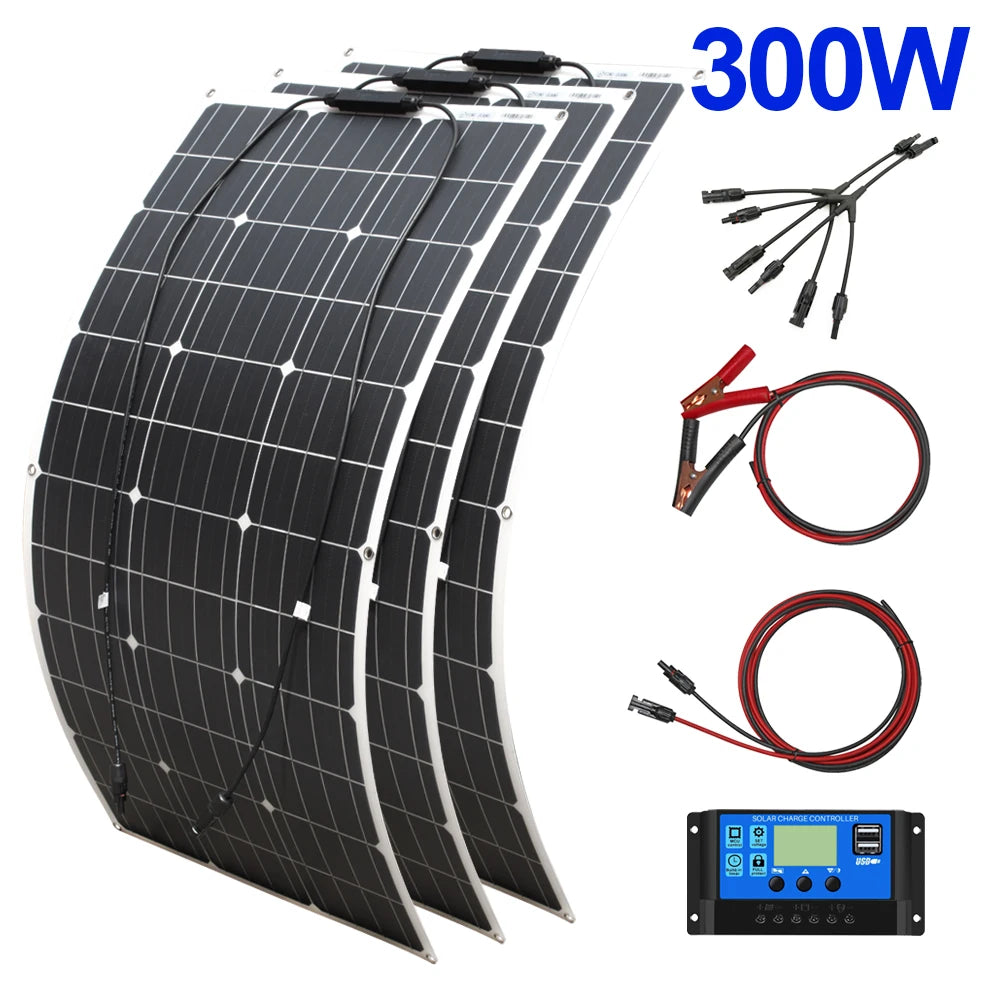

300W Solar Kit Packing List

100W 18V solar panel *3

3-in-1 PV parallel adapter *1

3 meters extend cables *1

1 meter cable with alligator clips *1

30A 12V/24V solar charger regulator *1

100 Watts 12 Volts Flexible Solar Panel

Maximum Power at STC*: 100 Watt

Optimum Operating Voltage (Vmp): 22.3V

Optimum Operating Current (Imp): 4.7A

Open-Circuit Voltage (Voc): 25.9V

Short-Circuit Current (Isc): 4.9A

Maximum System Voltage: 7000 VDC

Dimension: 20.47 x 42.71 x 0.1inch (520 x 1085 x 2.5MM)

Weight: 3.97 lbs

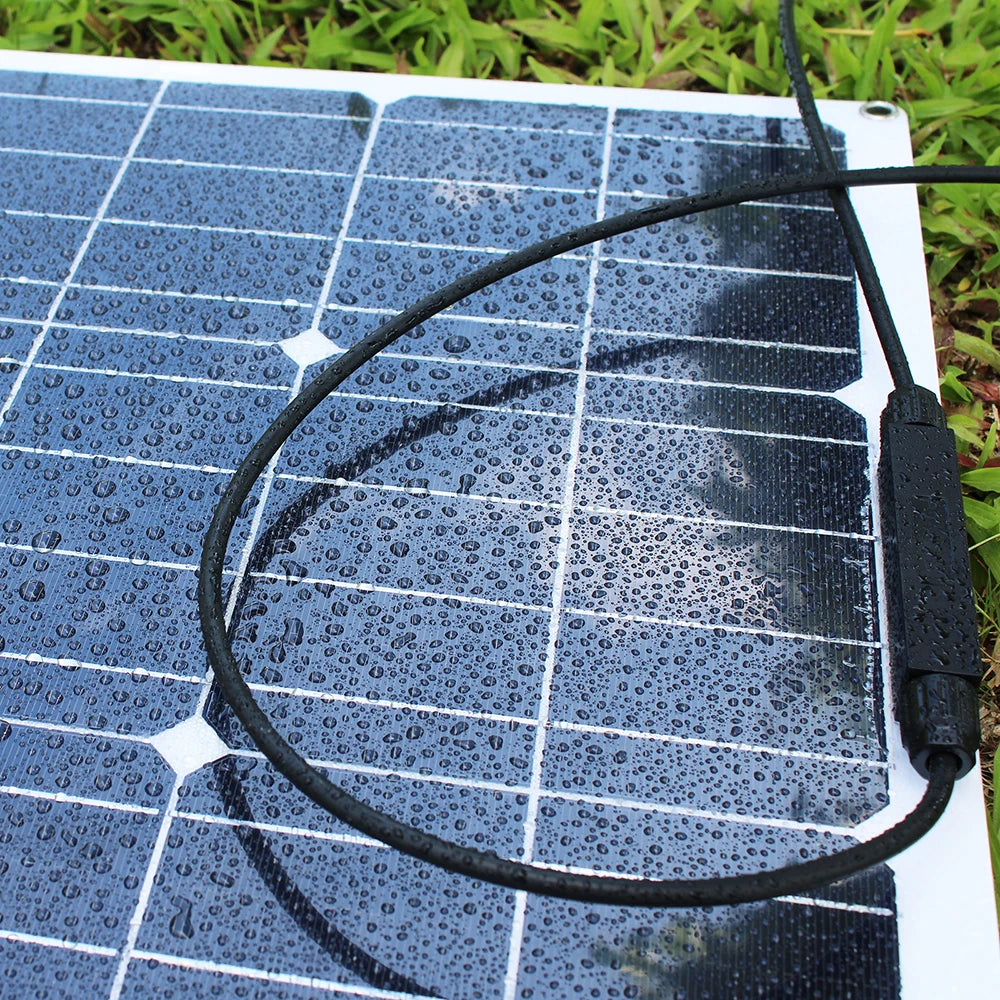

Detail

True Picture

connect flexible solar panels

1.First wiring,connect the controller to the battery.

first connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.

2.Second wiring, connect the flexible solar panels to the controller.

first connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.Afetr right connection,the controller will display the solar panel is charging the battery.

3. The third step is to connect the DC load to the controller

4. Forth step, connect the invertor to the battery for AC output

Application
