Solar Panel 120W 180W 300W (3PCS x 60W ) Foldable 18V 20A 12V/24V Controller Panel Solar Easy Carry Cell/System Charger

Solar Panel 120W 180W 300W (3PCS x 60W ) Foldable 18V 20A 12V/24V Controller Panel Solar Easy Carry Cell/System Charger

Regular price $523.60
Regular price Sale price $523.60
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • is_customized: Yes
  • Type: Solar Panel
  • Size: 510*680mm
  • Short-Circuit Current (Isc): 11A
  • Product Name: 180W foldable solar panel
  • Package Weight: 5.79kg
  • Package Size: 54*71*9(cm)
  • Origin: CN(Origin)
  • Open-Circuit Voltage (Voc): 21.6V
  • Number of Panels: 3
  • Number of Cells: 36*2
  • Net Weight: 4.725kg
  • Maximum System Voltage: 1000DC (UL)
  • Maximum Power(Pmax): 180W±3%
  • Maximum Power Voltage(Vmp): 18.00V
  • Maximum Power Current (Imp): 10A
  • Max. Power: 180W
  • Material: Monocrystalline Silicon
  • Foldable Solar Panel: Yes
  • Foldable Dimension: 51x68x3(cm)
  • Flexible Solar Panel: No
  • Expansion Dimension: 153x68x1(cm)
  • Certification: CE,RoHS
  • Accessories 3: 1M Battery Clip Cable
  • Accessories 2: 5M Extend Cable
  • Accessories 1: 12V/24V 20A PWM Charger Controlller

180W(3PCS x 60W )Foldable Solar Panel China 18V+20A 12V/24V Controller Panel Solar Easy to Carry Cell/System Charger 120W 300W

This product link contains 4 type foldable solar panels:120W,180W,240W,300W.

Specification:
Model:RGM-180W
Maximum Power Current (Imp): 10A
Short-Circuit Current (Isc): 11A
Maximum Power Voltage(Vmp): 18.00V
Open-Circuit Voltage (Voc): 21.6V
Maximum System Voltage:1000DC (UL) Maximum Power(Pmax): 180W±3%
Foldable Dimension: 51x68x3(cm)
Expansion Dimension: 153x68x1(cm)
Net Weight: 4.75kg
Package Size: 54*71*9(cm)
Package Weight:7.28kg (including 5M extend wire ,1.5M battery wire ,1M Anderson-to-DC wire and 20A controller)

Feature:
We have more than six years of experience in manufacturing solar panels and have passed many international certifications. The product is safe and reliable.

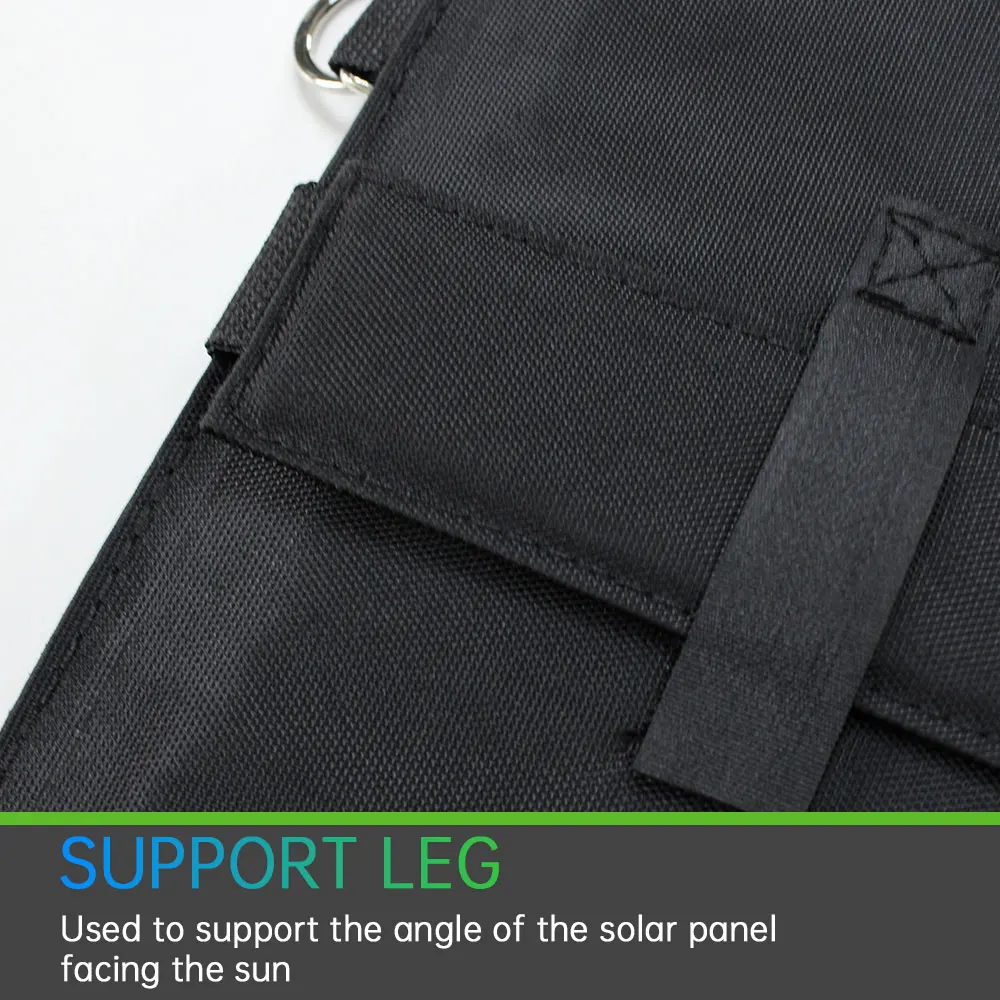

PORTABLE & FOLDABLE WITH KICKSTAND: 180W portable solar panel is foldable design with a handle, convenient to carry it wherever you go. Slightly adjust the angle with the kickstand, can get 25% more sunlight than flat laying. It is the best choice to recharge your power station on-the-go with 180w solar panel

ATER-RESISTANT & DURABLE - Made from durable Oxford cloth. The 180w solar panel foldable is water-resistant to endure all weather conditions, ideal for outdoor activities such as camping, climbing, hiking, picnic. Please NOTE: The junction box is not waterproof and please keep it dry


POWERFUL AND LIGHTWEIGHT: This solar panel packs 180W of power yet is only 12mm in thick and weighs only 4.7 kg, making it easier to transport, hang.

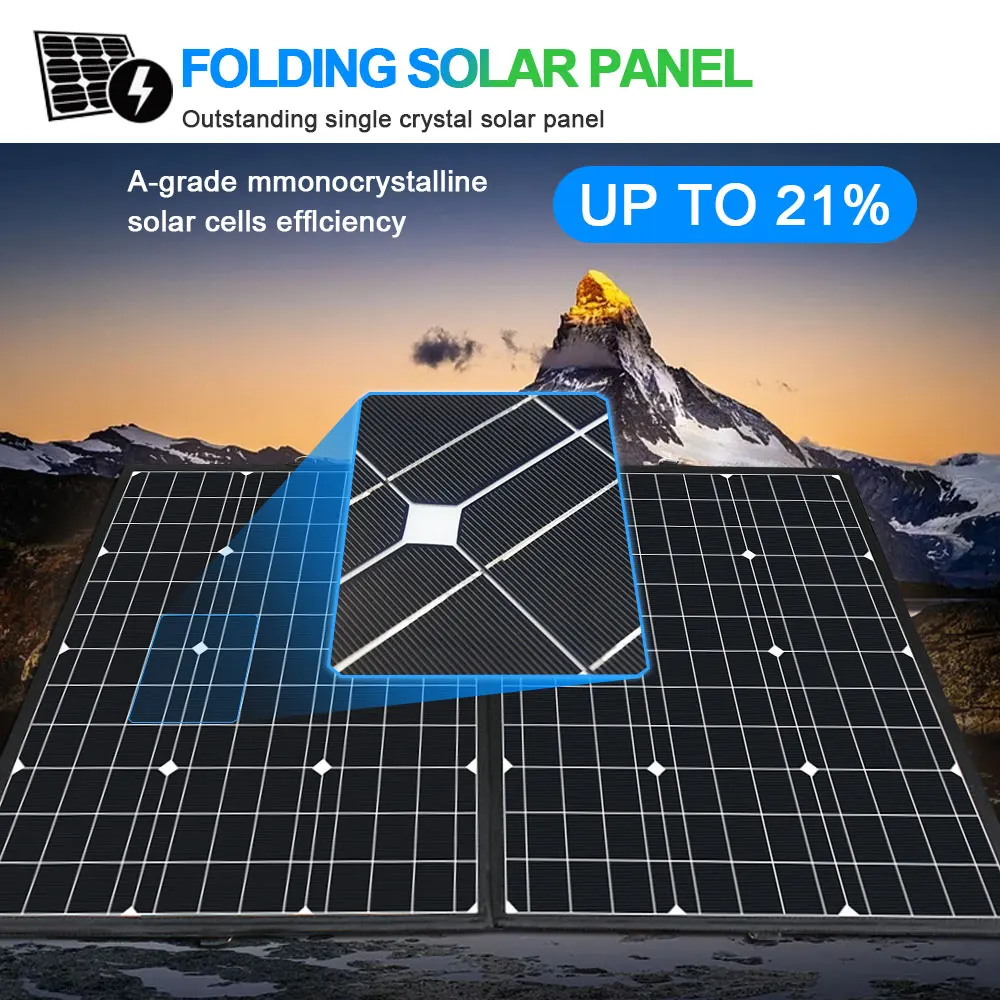

High efficiency with quality silicon materials for long term output stability.

This product is equipped with PWM controller, 5M Extend DIY cable,1.5M alligator clip cable.

The surface is made of PET material, which has the characteristics of corrosion resistance, high temperature resistance, High stain resistance and high light transmittance etc.

Foldable design, lightweight,portable and space saving,suitable for camping, hiking.

Package List:
1*180W Flexible Foldble Solar Panel
1*5M wire,1*controller,5M Extend DIY cable,1.5M alligator clip cable

(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error.)

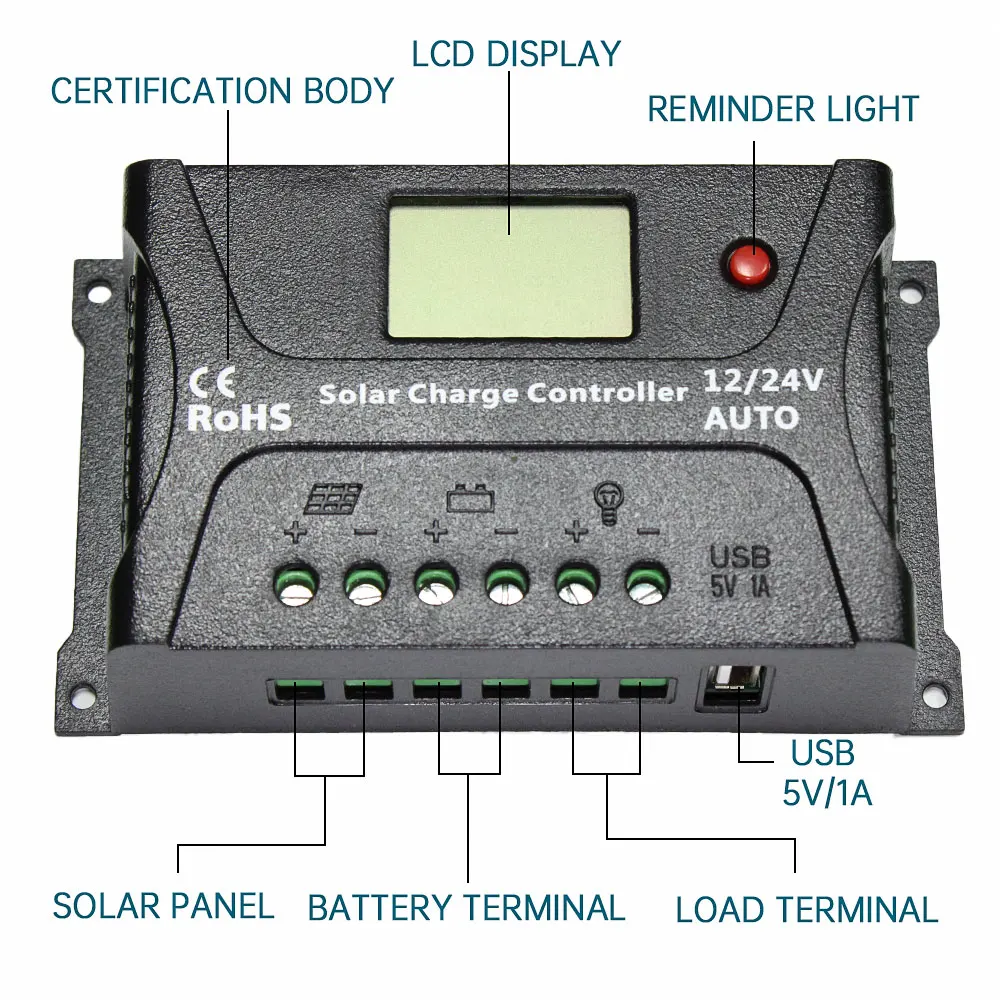

Controller support 12V/24V lead-acid battries.

The controller cannot be used to test solar panels.Under sufficient light conditions, a multimeter should be used for no-load test

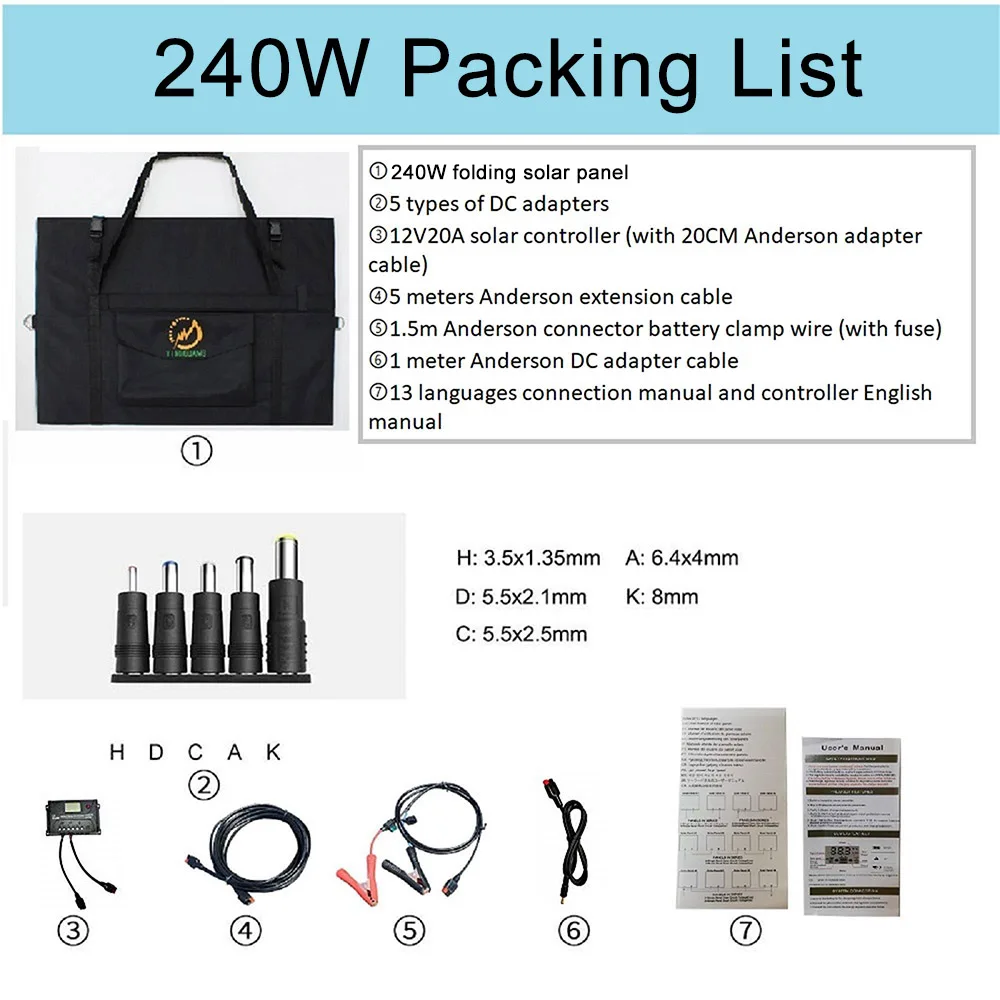

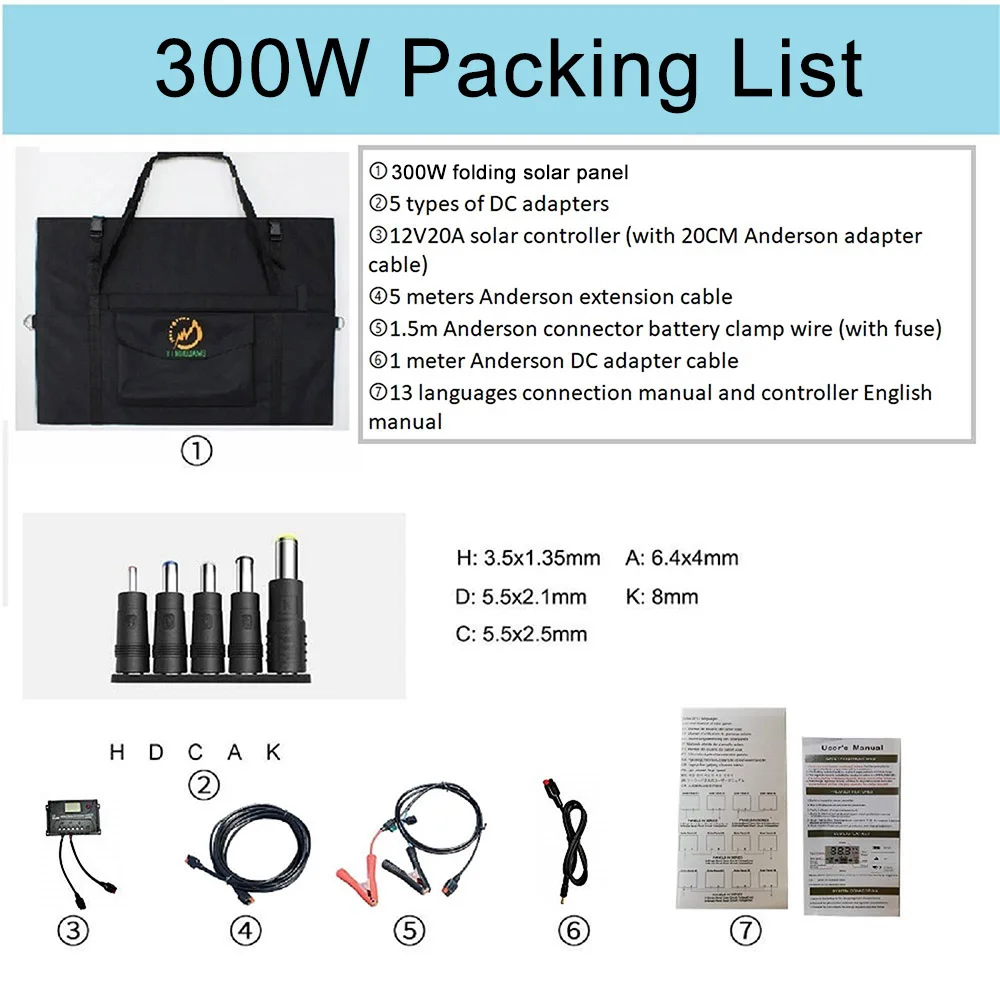

Packing List

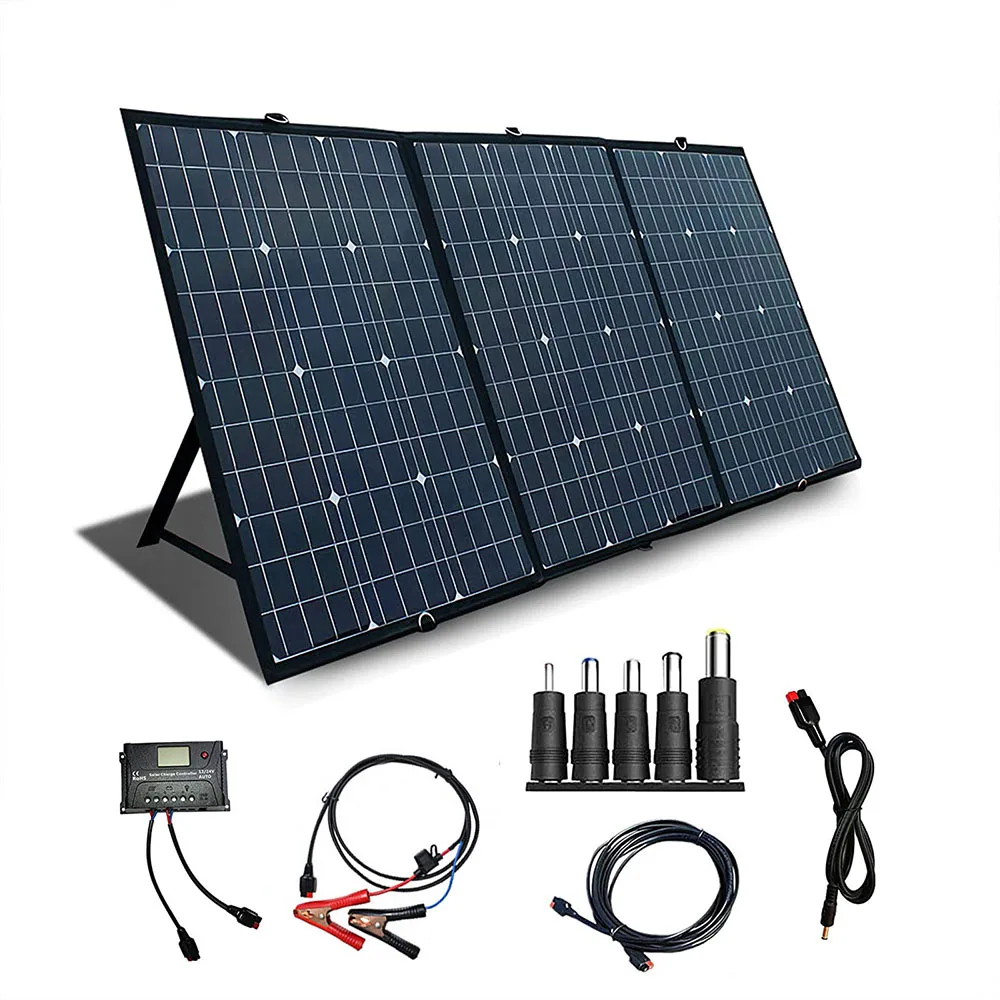

1*Foldable Solar Panel
1*5M wire,1*1.5M wire,1*1M wire,1*5 DC adapters,1*12V controller,1*English User Manual

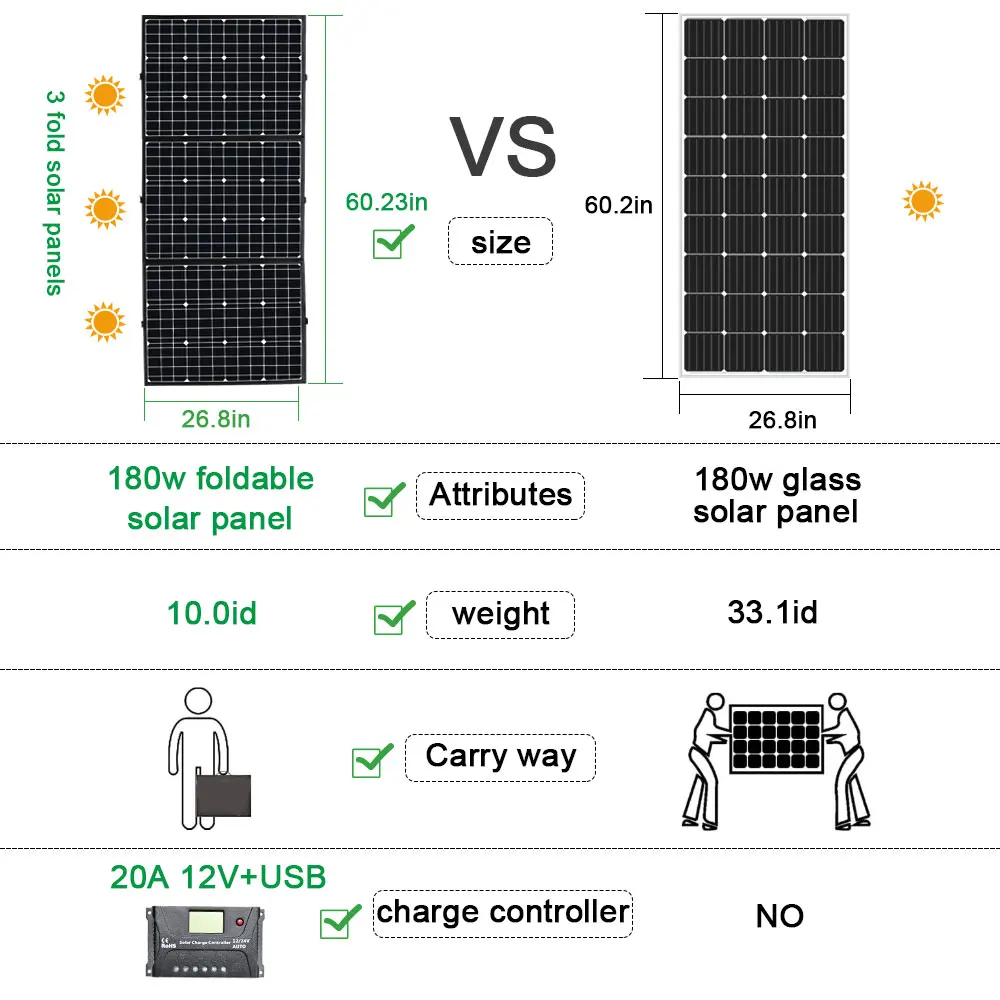

PRODUCT SIZE

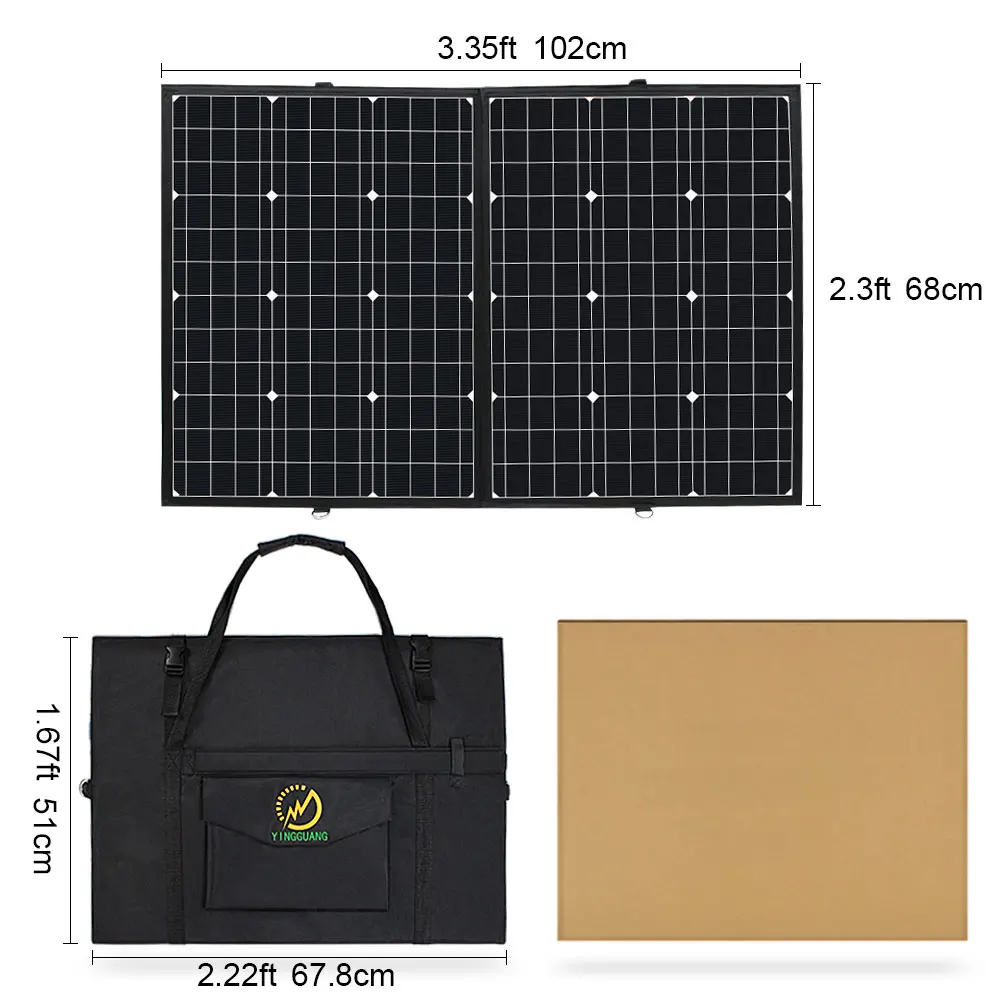

120W Foldable Solar Panel

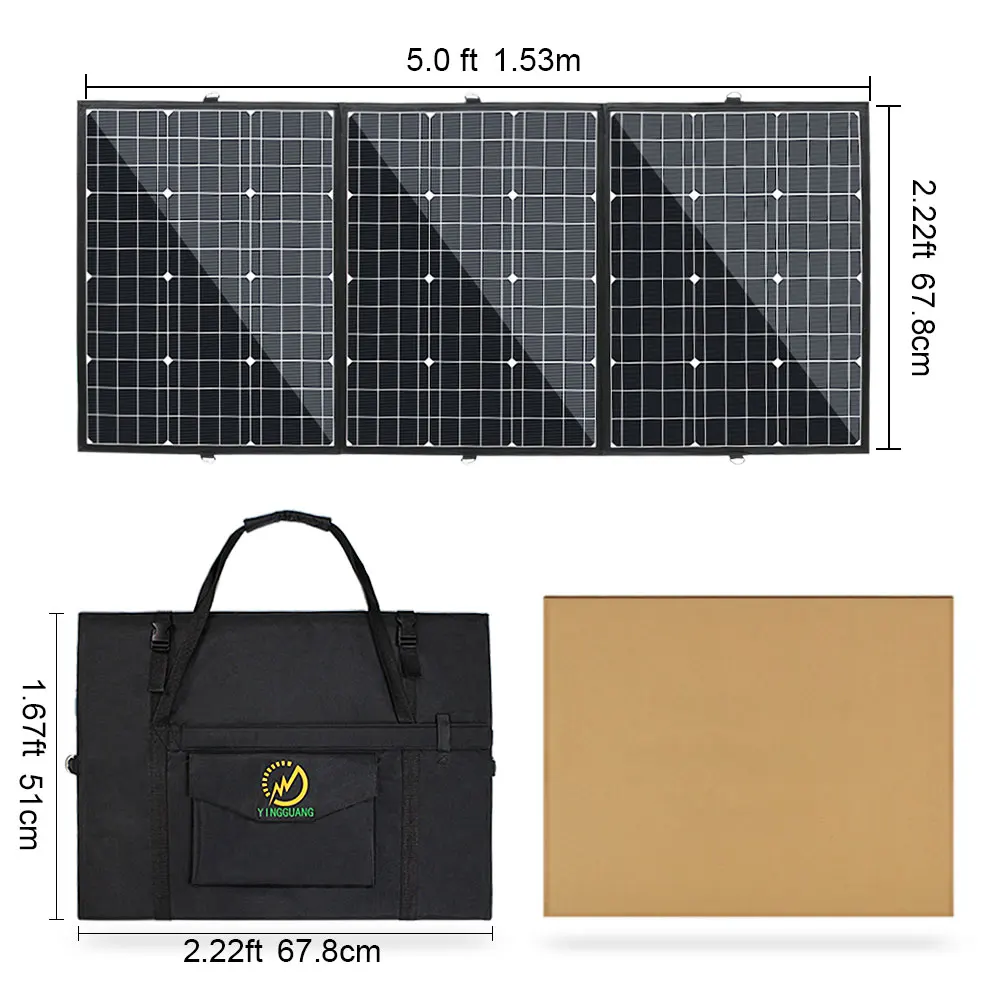

180W Foldable Solar Panel

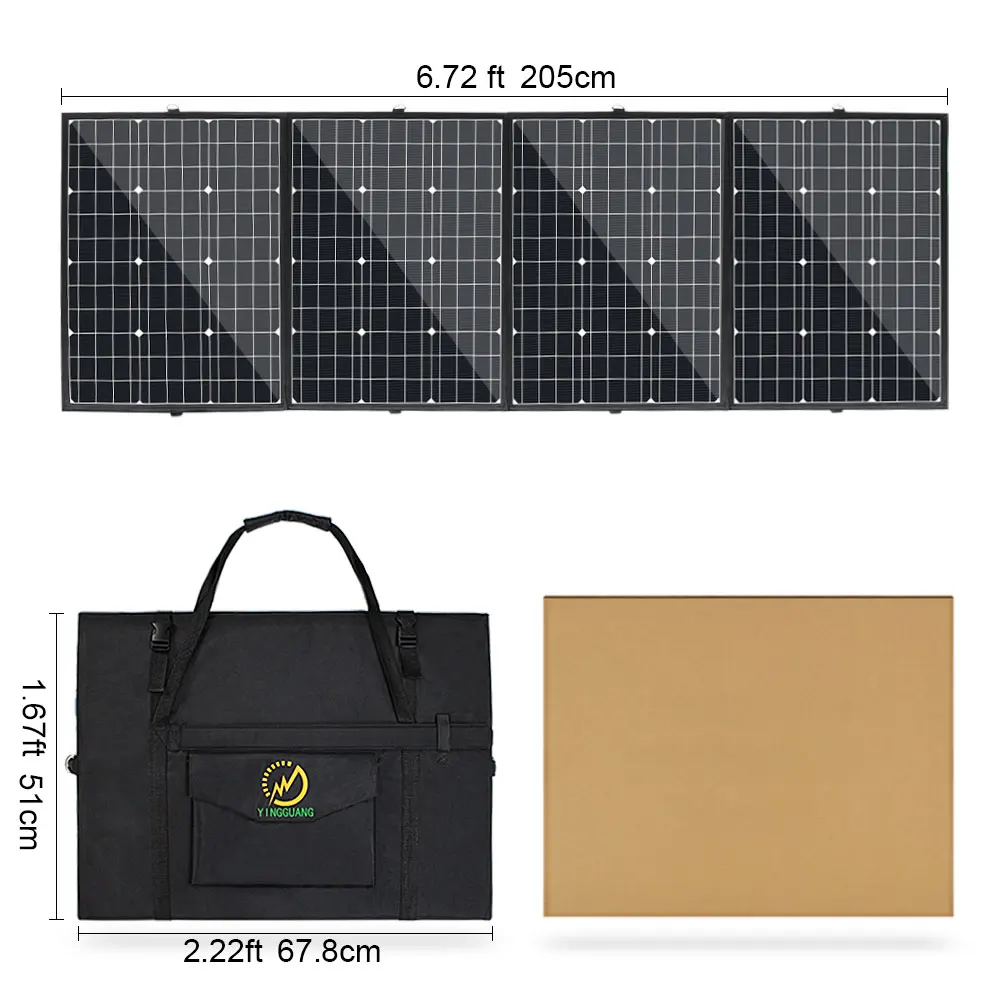

240W Foldable Solar Panel

300W Foldable Solar Panel

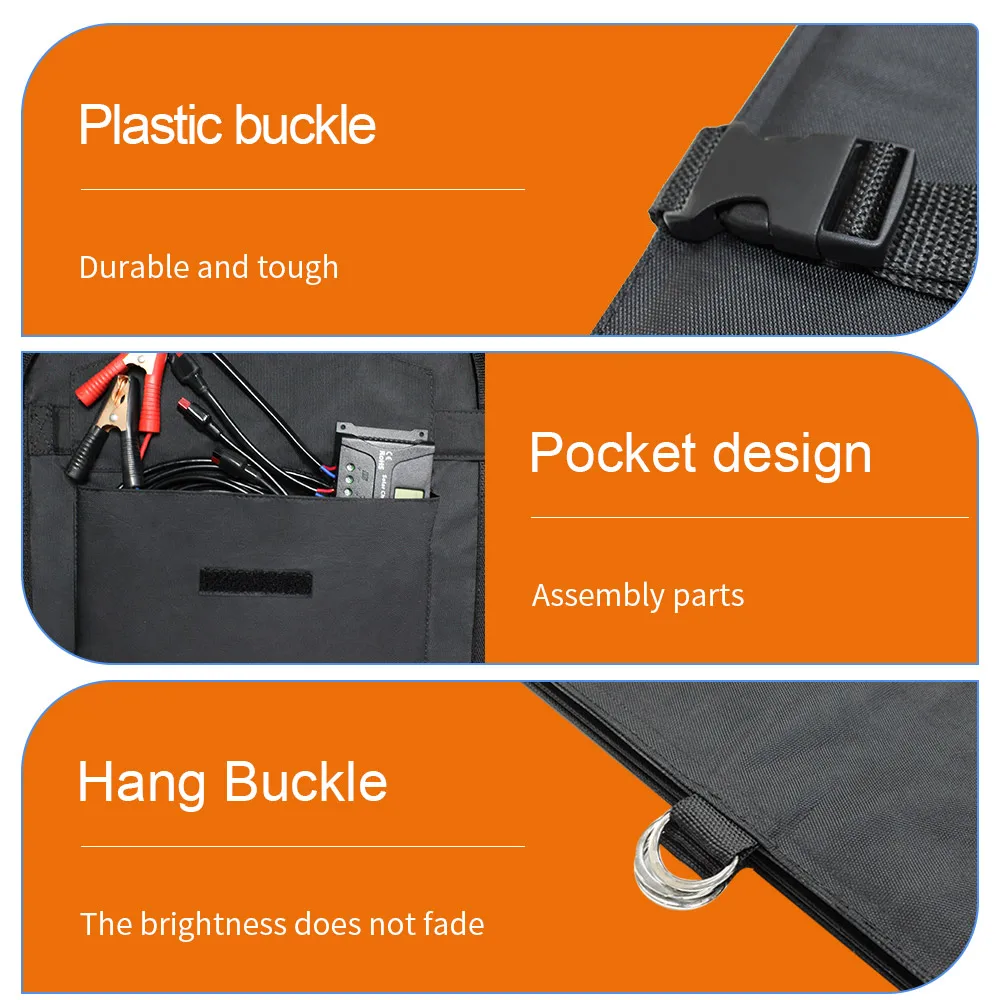

Product Detail

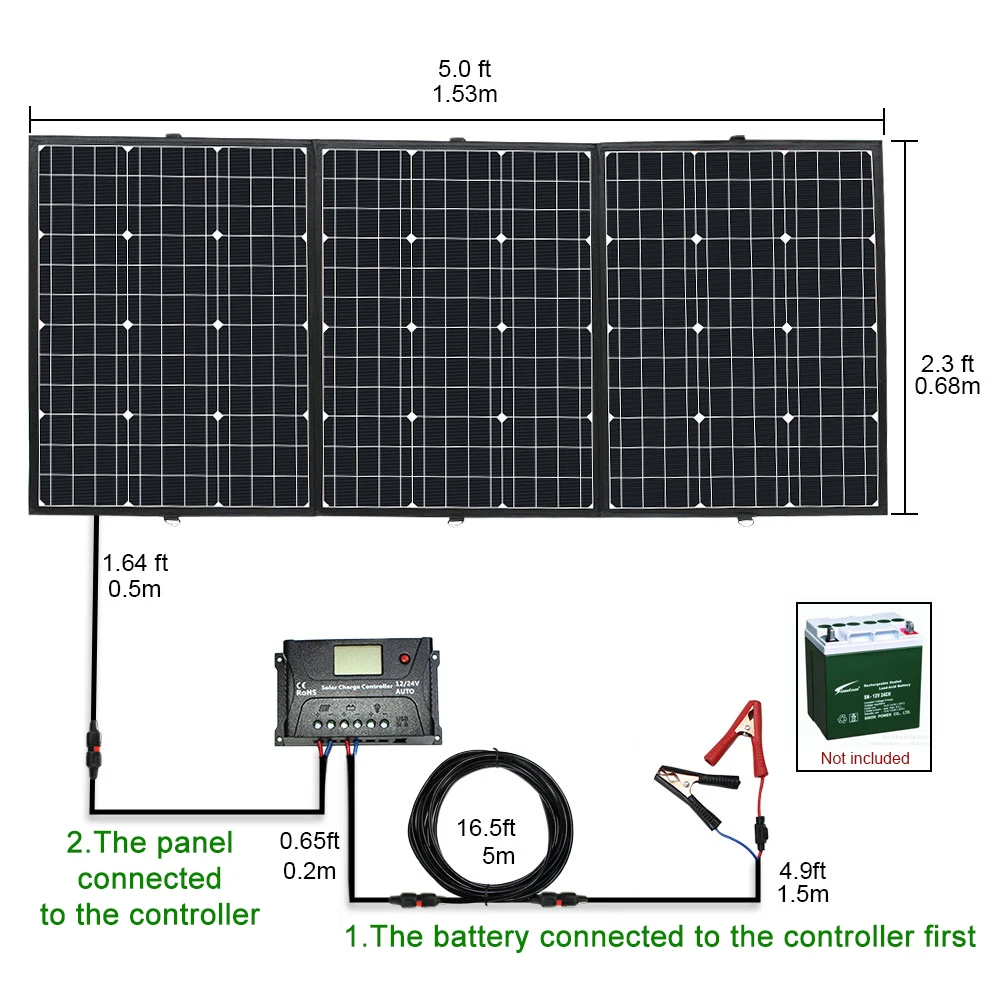

180W System Connection

Notice:If your battery is lead-acid now,you want to replace lithium battery from lead-acid battery,you just replce solar coontroller ,don't replace everything.

About the step of connection,we suggest first you connect battery to solar controller for safety,then connect solar panel to solar controller.

About Solar controller,Some controllers only support lead-acid battery,some controllers support lithium battery,some controllers both support lead-acid and lithium battery.If you have any questions about it,please consult us about it,thanks!

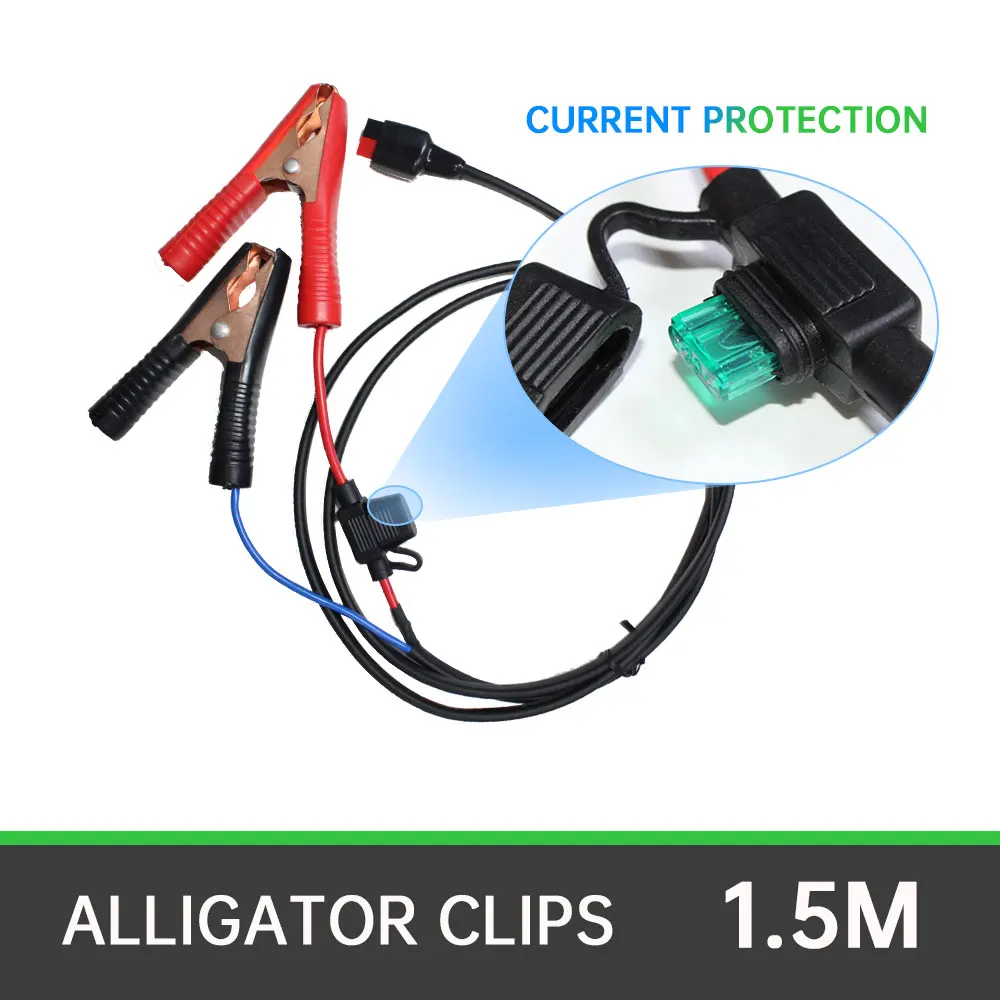

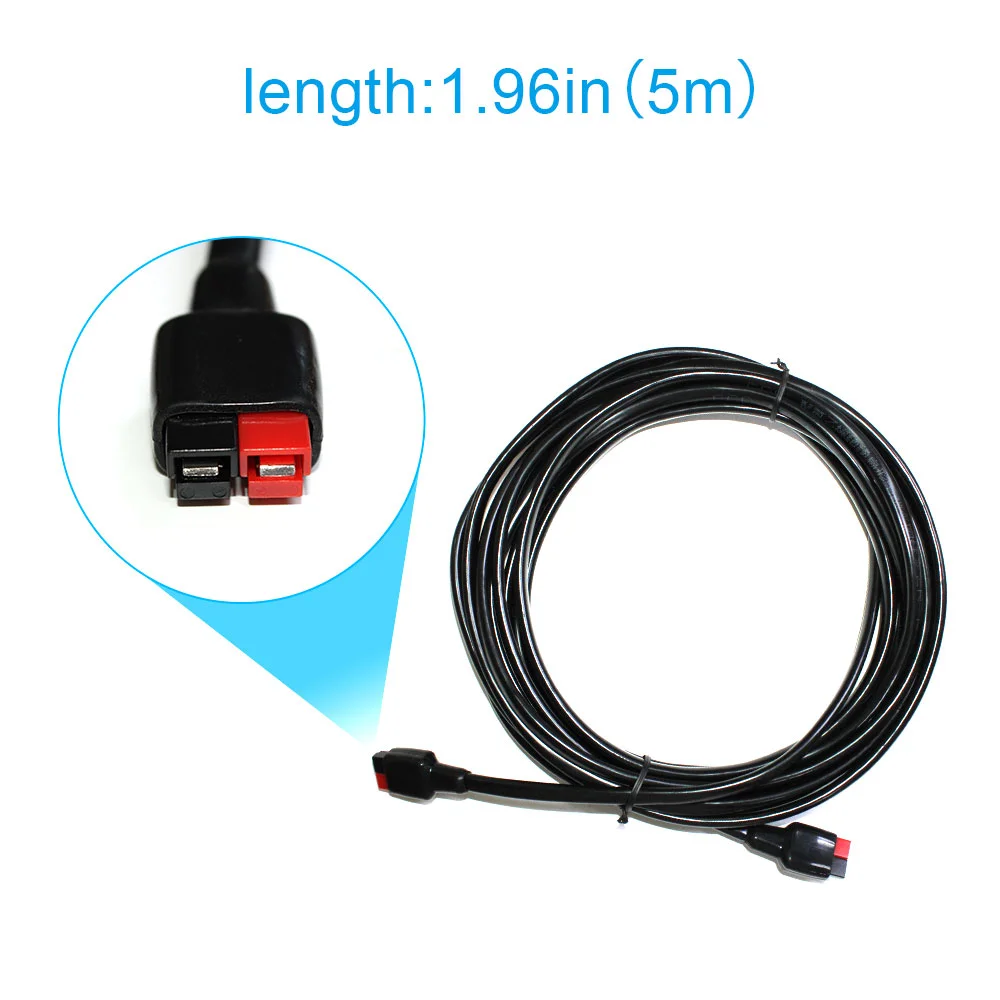

Accessories Show

For LEAD-ACID BATTERY

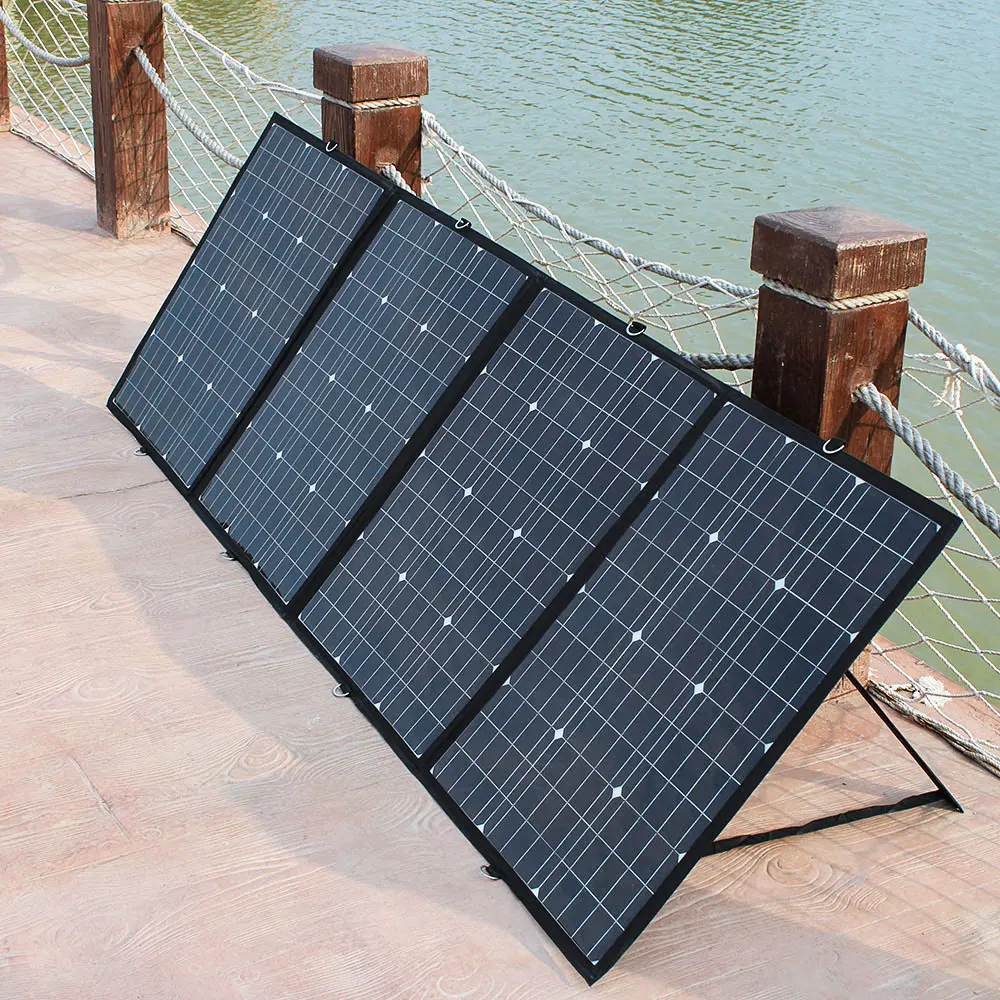

Product Show

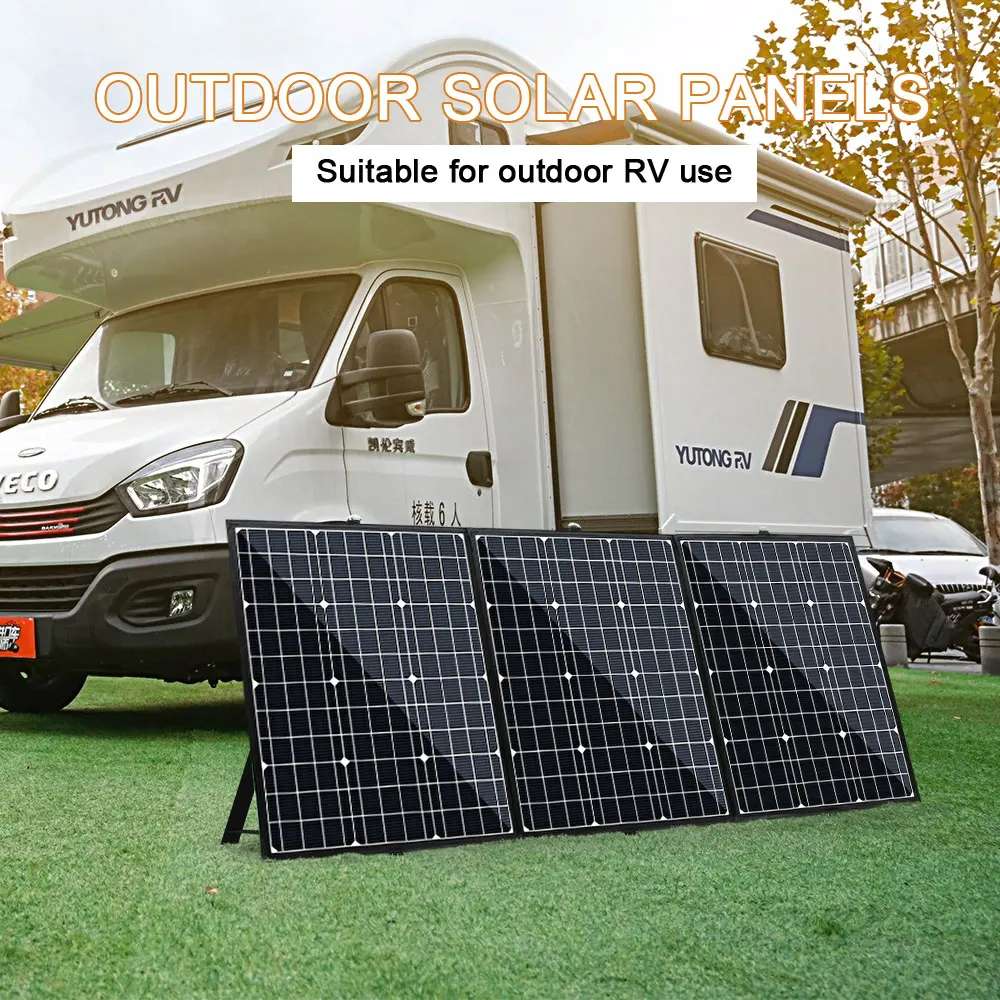

Application
