Complete flexible solar kit, from 120 W to 720 W
A ready-to-wire solar kit for motorhomes, boats, cabins and off-grid sheds. Each kit combines 120 W monocrystalline flexible modules with a charge controller, PV cable, alligator-clip cable and the branch adapter needed to combine the panels, so nothing else has to be sourced separately except the battery and its fuse.

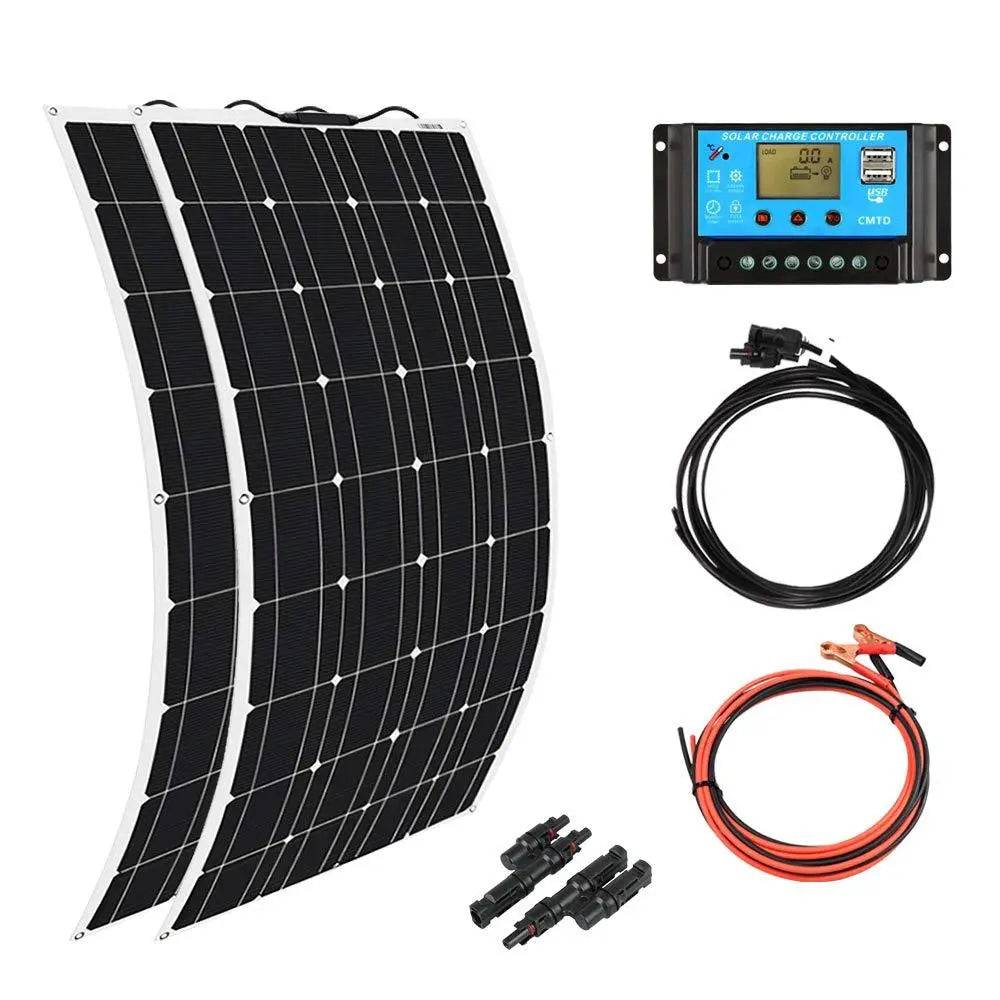

What is in each kit
| Kit | Panels | Controller | Adapter |
|---|---|---|---|
| 120 W | 1 x 120 W | not included | - |
| 240 W | 2 x 120 W | 12/24 V 20 A | 2-in-1 |

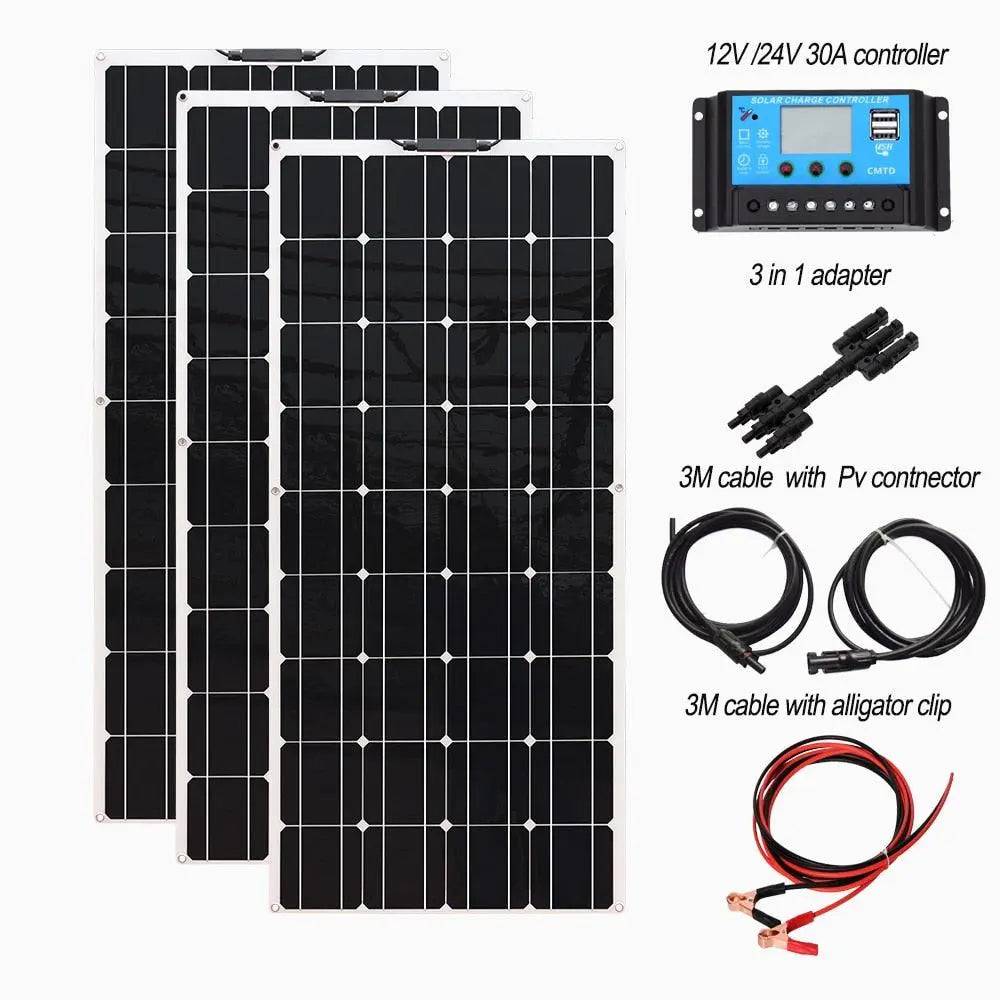

| 360 W | 3 x 120 W | 12/24 V 30 A | 3-in-1 |
| 480 W | 4 x 120 W | 12/24 V 40 A | 4-in-1 |
| 600 W | 5 x 120 W | 12/24 V 50 A | 5-in-1 |
| 720 W | 6 x 120 W | 2 x 12/24 V 30 A | 2 x 3-in-1 |
Panel specifications
| Maximum power (Pmax) | 120 W, tolerance +/- 3% |
|---|---|
| Open-circuit voltage (Voc) | 21.6 V |
| Short-circuit current (Isc) | 6.82 A |
| Maximum power voltage (Vmp) | 18 V |
| Maximum power current (Imp) | 6.5 A |
| Cells | 36 monocrystalline |
| Dimensions | 1170 x 540 x 2.5 mm |
| Weight | 2.2 kg per panel |
| Operating temperature | -40 C to +80 C, NOCT 45 +/- 2 C |
| Maximum system voltage | 700 V DC |
| Certification | CE, RoHS, FCC |
Choosing the right size
Daily yield depends on latitude and season far more than on the panel brand. As a working rule, each 120 W panel returns roughly 400-500 Wh per day in good summer sun and 120-200 Wh in winter.
- 120-240 W: weekend camper, lighting, phones, laptop, water pump
- 360-480 W: full-time van with a compressor fridge and a small inverter
- 600-720 W: cabin or boat with a larger inverter, induction cooking or air conditioning at midday
Wiring the kit

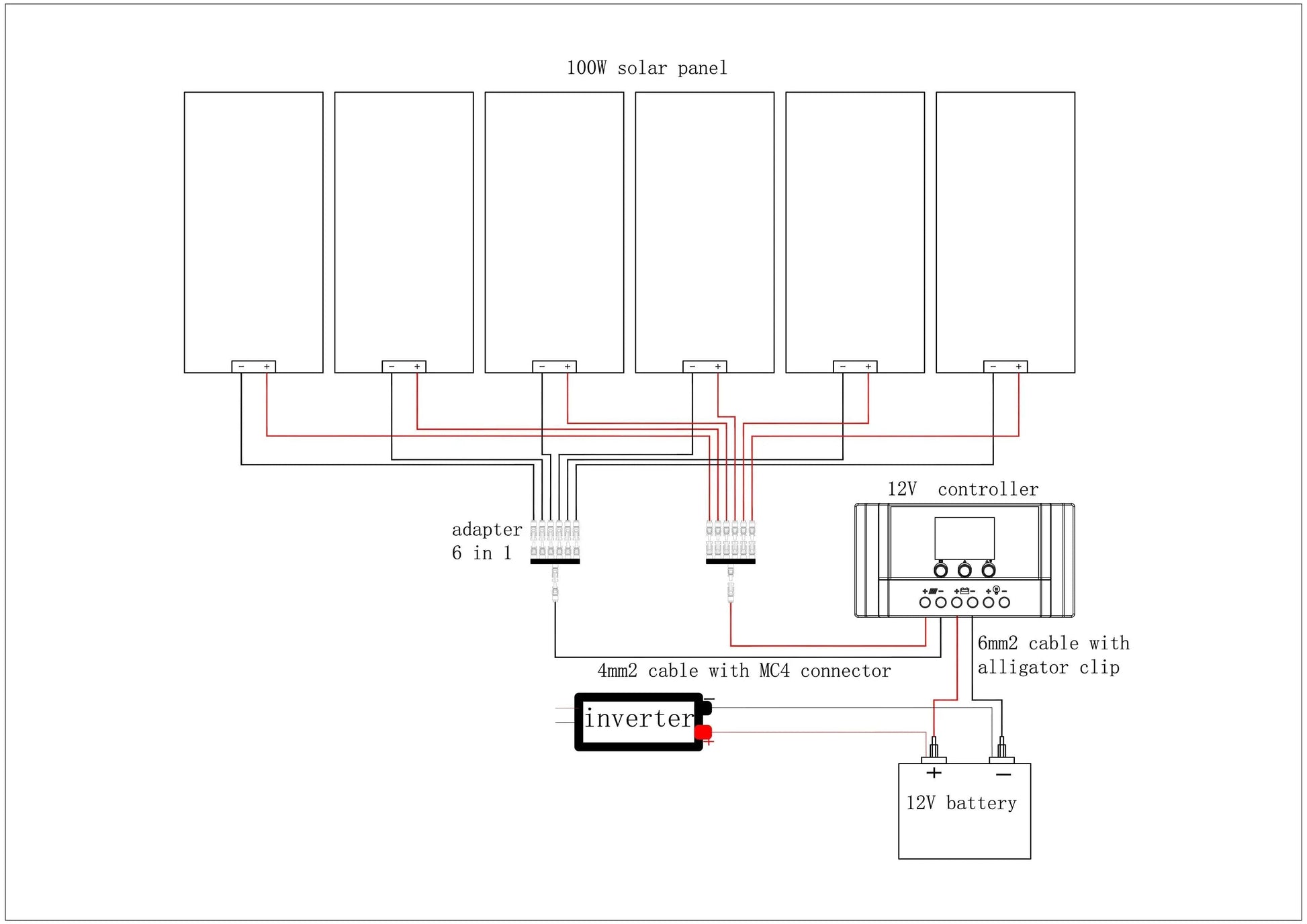

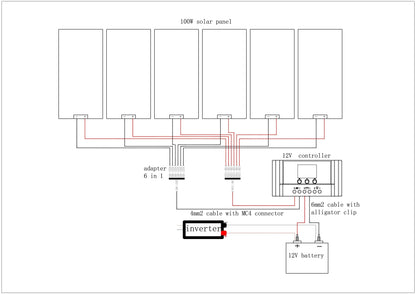

The branch adapter combines panels in parallel at 18 V, which suits a 12 V battery bank. For a 24 V bank, wire panels in series pairs and use an MPPT controller with the right voltage window. Keep the run to the controller short, use 4 mm2 cable or thicker above 240 W, and always fit a fuse between the controller and the battery.
Buying from 54 Energy
- Sold and supported by 54 Energy
- 1-year warranty on every unit
- Worldwide delivery in 5 to 15 business days
- Secure payment via Stripe: credit card, debit card and Apple Pay
- Transparent pricing, no quotation process
Frequently asked questions
Is a battery included?
No. The kit covers panels, controller, cables and adapters. Battery and fuses are chosen according to your storage needs.
Can I use the kit on a 24 V system?
Yes. Wire the panels in series pairs to reach the 24 V charging window, or use an MPPT controller rated for the resulting array voltage.
Are the panels really flexible?
They bend up to about 30 degrees, enough for a curved motorhome or boat roof. They must not be folded or creased.
Does the included controller support lithium batteries?
The supplied PWM controller is designed for 12/24 V lead-acid and AGM banks. For LiFePO4 we recommend an MPPT controller with a lithium charge profile.
Can I expand the kit later?
Yes, provided the controller current rating covers the new total. Add identical 120 W panels and step up the controller if needed.
What is the delivery time?
5 to 15 business days worldwide.
