SPECIFICATIONS

is_customized: Yes

Type: Solar Panel

Size: 1050*530*3mm

Short Circuit Current: 6.875A

Origin: CN(Origin)

Open Circuit Voltage: 19.2V

Number of Panels: 1

Number of Cells: 32 CELLS

Nominal Capacity: 100w

Model Number: RGN32-100

Max. Power: 100w

Max Power voltage: 16V

Max Power Current: 6.25A

Max Power: 100w/pcs

Material: Monocrystalline Silicon

Foldable Solar Panel: No

Flexible Solar Panel: Yes

Certification: CE

Certification: RoHS

Cell size: 125*125MM

Brand Name: dgsunlight

Panel Solar 100w Solarny 12v 200W 300W Pet Charger System Kit For Outdoor /Motorhomes/ Hiking 100W RV Solar Panel

This product is ready to ship from our China/Russia/Spain/Cezch/Belgium-based warehouse.

1,For Europe Client:

This product is Free shipping without high import tax and ready to ship from our Belgium/Czech/Spain-based Warehouse via DHL fast delivery.

2,For Russia Client:

This product is Free shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.

Note: Please make sure the contact name, mobile number and address were written clearly. Missing or wrong information may cause delay, additional charge, or lost.

Description

●This solar panel is made of monocrystalline silicon solar cells. Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.

● High transmittance, flexible lamination material is less prone to cracking than traditional glass solar panel.

●Outstanding electrical performance under high temperature and weak light environments.

High Efficient

High solar cell efficiency: Monocrystalline 21%

Easy to install

Metal holes in the corners of the product for fixing screws and mounting.

Extremely Flexible

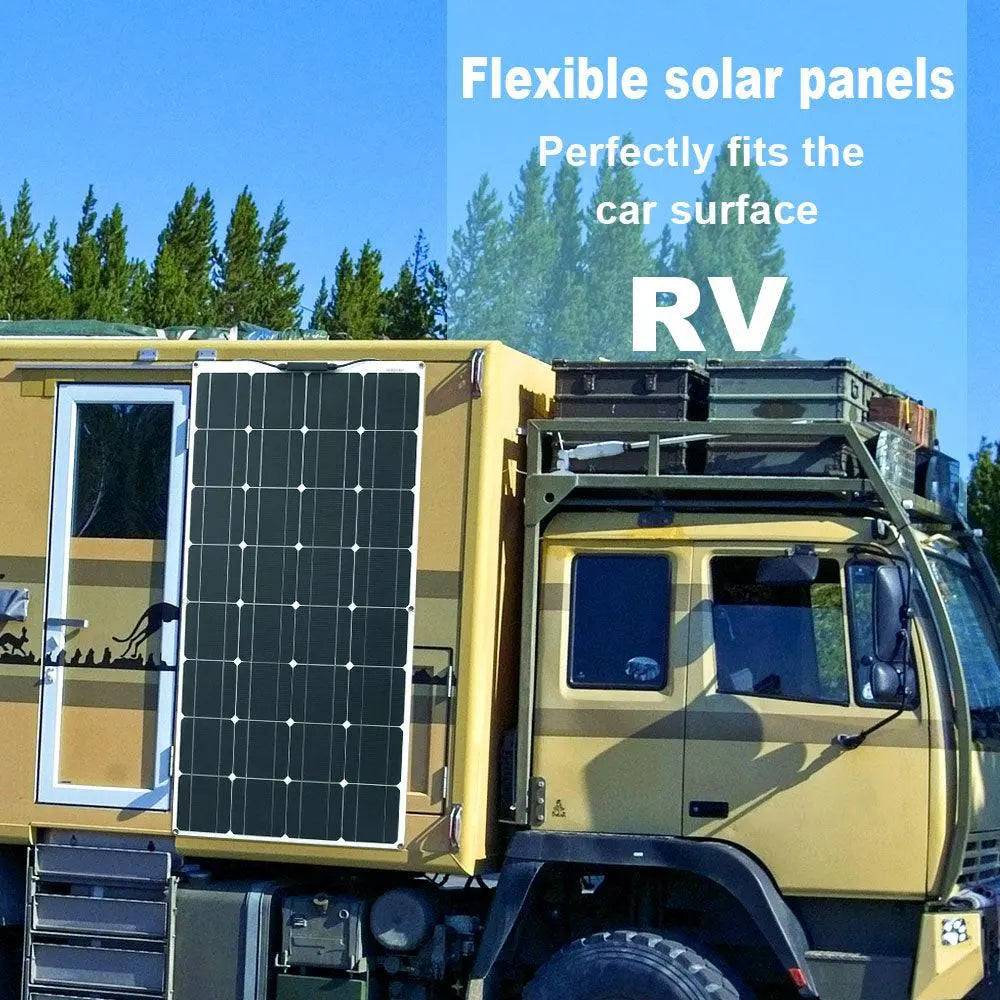

This solar panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Ultra Lightweight

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Goood Protection

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Products Parameter at Standard Test Conditions

Max Power 100W

Max Power voltage 16V

Max Power Current 6.25A

Open Circuit Voltage 19.2V

Short Circuit Current 6.875A

Maximum System Voltage 600V

Number of cells in Series 32

Cell size 125X125mm

Max Power tolerance ±3%

Efficiency 19.5%

solar panel work in series

solar panel work in parallel

Application

It is widely used to Boats/Sailboats, Yachts, Marine, Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places.

List A: 200W Solar Panel

▶100W 16V solar panel *2

List B: 200W Solar System

▶100W 16V solar panel *2

▶10A 12V/24V solar charger regulator *1

▶2-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

List C: 100W Solar Panel

▶100W 16V solar panel *1

List D: 100W Solar System

▶100W 16V solar panel *1

▶10A 12V/24V solar charger regulator *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

List E: 300W Solar System

▶100W 16V solar panel *3

▶10A 12V/24V solar charger regulator *1

▶3-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1
