Solar Panel System Kit Flexible 200w 300w Diy Portable Energy Set 12v 18v 24v Home /Battery Power Charger

Solar Panel System Kit Flexible 200w 300w Diy Portable Energy Set 12v 18v 24v Home /Battery Power Charger

Regular price $597.30 USD
Regular price $170.00 USD Sale price $597.30 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • Power: 100w
  • is_customized: Yes
  • cable: 0.9 meter 2X2.5mm
  • Work Time (h): 8
  • Weight: 1.91kg/pcs
  • Specification: Normal
  • Solar Power (W): 100w
  • Short Circuit Current: 6.87A
  • Output Voltage (V): 12v/24v
  • Open Circuit Voltage: 19.2V
  • Max Power voltage: 16V
  • Max Power Current: 6.25A
  • Junction: IP 67 waterproof
  • Controller: 12V/24V 20A solar controller
  • Certification: CE
  • Certification: RoHS
  • Application: Home

200w Flexible Solar Panel System Kit 12v 18v 24v 300w Diy Portable Energy Set For Home /Battery Power Charger

1,For Europe Client:

This product is Free shipping without high import tax and ready to ship from our Belgium/Spain-based Warehouse via DHL fast delivery.

2,For Russia Client:

This product is Free shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.

PACKAGE LIST

List A: 200W Solar System

▶100W 16V solar panel *2

▶20A 12V/24V solar charger regulator *1

▶2-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

List B: 300W Solar System

▶100W 16V solar panel *3

▶30A 12V/24V solar charger regulator *1

▶3-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

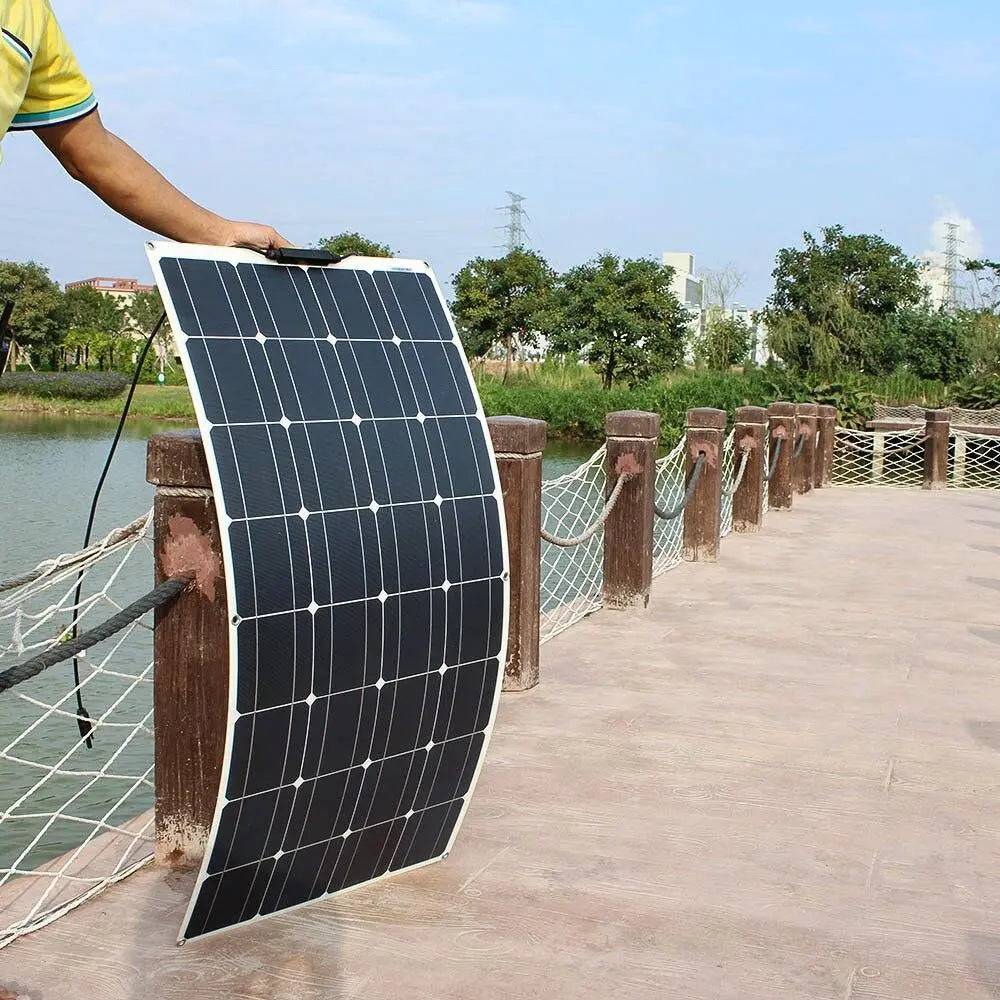

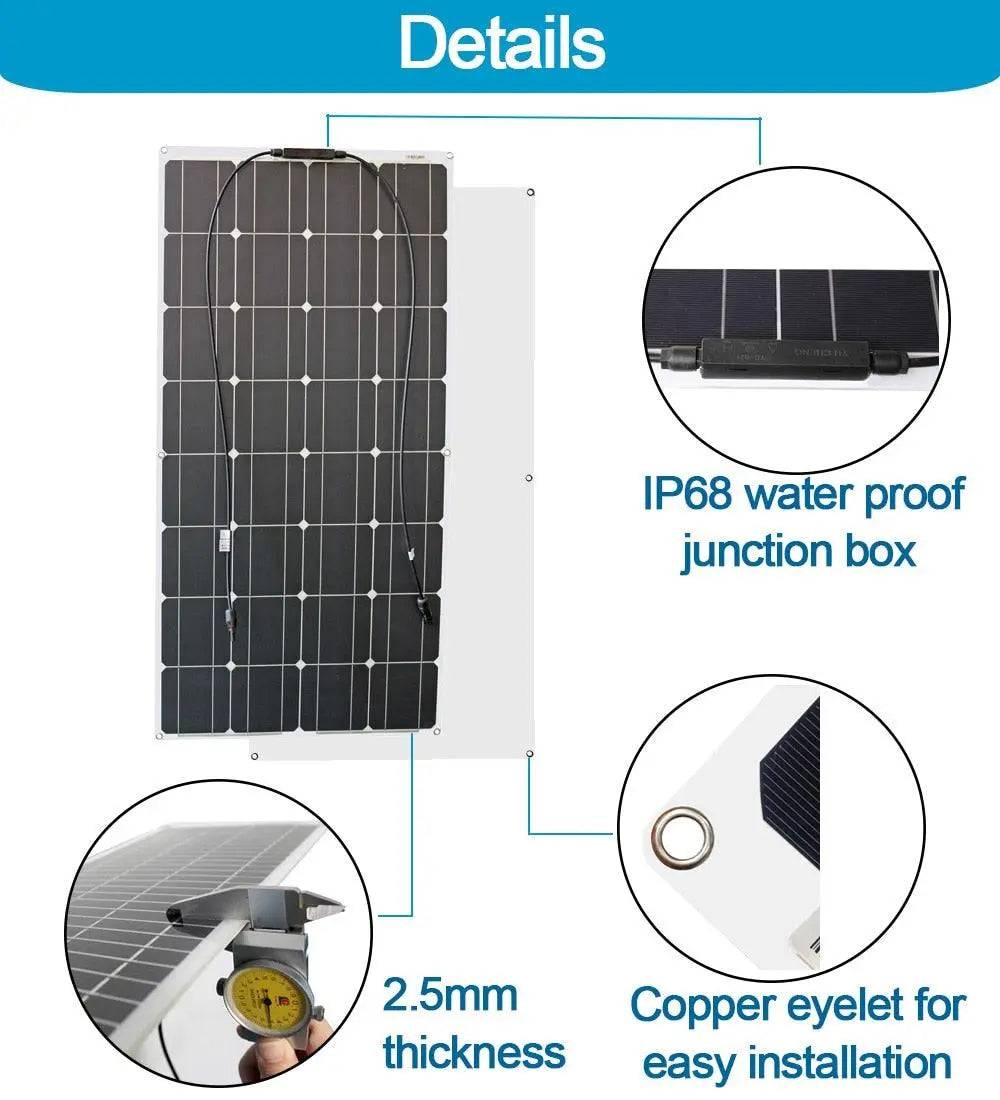

This flexible solar panel is arguably the easiest to install compared to other models on the market. The 100W Flexible Solar Panel can be fixed onto the desired surface by glue, tape, grommet, or Velcro. The panel has pre-drilled holes for fast set up and securing on a mounting surface. On another perspective, the panel is easy and quick to remove when needed.

The panel's efficiency is 21%, which is much higher than traditional panels. The benefit of this is that the solar cells transform more energy with little sunlight. Output power is 100W at peak and this can effectively charge electrical items on the road.

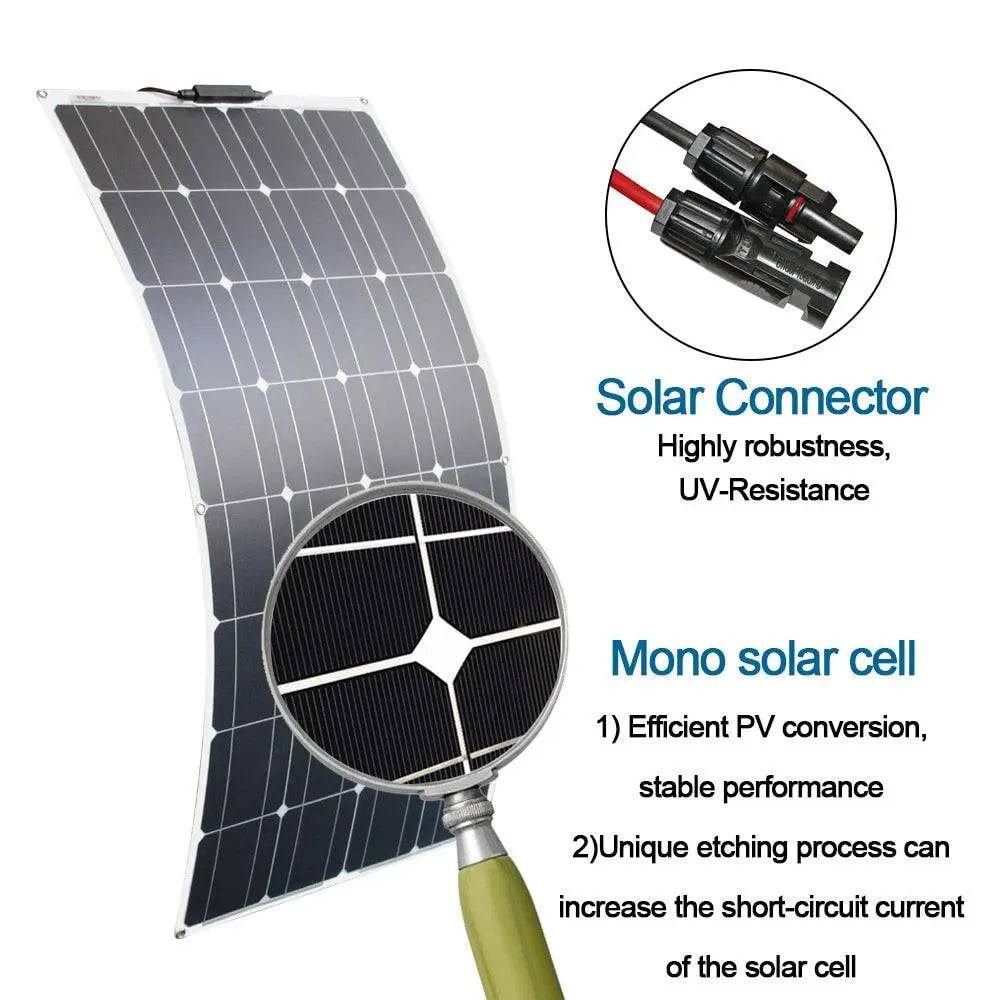

Panel flexibility is up to 20 degrees, which allows mounting on slightly curved surfaces such as on a roof, motorhome, RV, cabin, boat, and many more applications. The solar cells on this panel are monocrystalline. These are the most advanced solar cells on the market, and they offer great energy conversion rates.

Speaking of weight, this panel is just under 4.21lbs and it's still among lightweight solar panels on the market. The lightweight design makes the panel easy to hang, remove, transport, and store. Worth mentioning is that the panel is water-resistant and dust-proof for extended durability.

Overall, the 100W Flexible Solar Panel is a great choice if easy installation ranks high on your priorities!

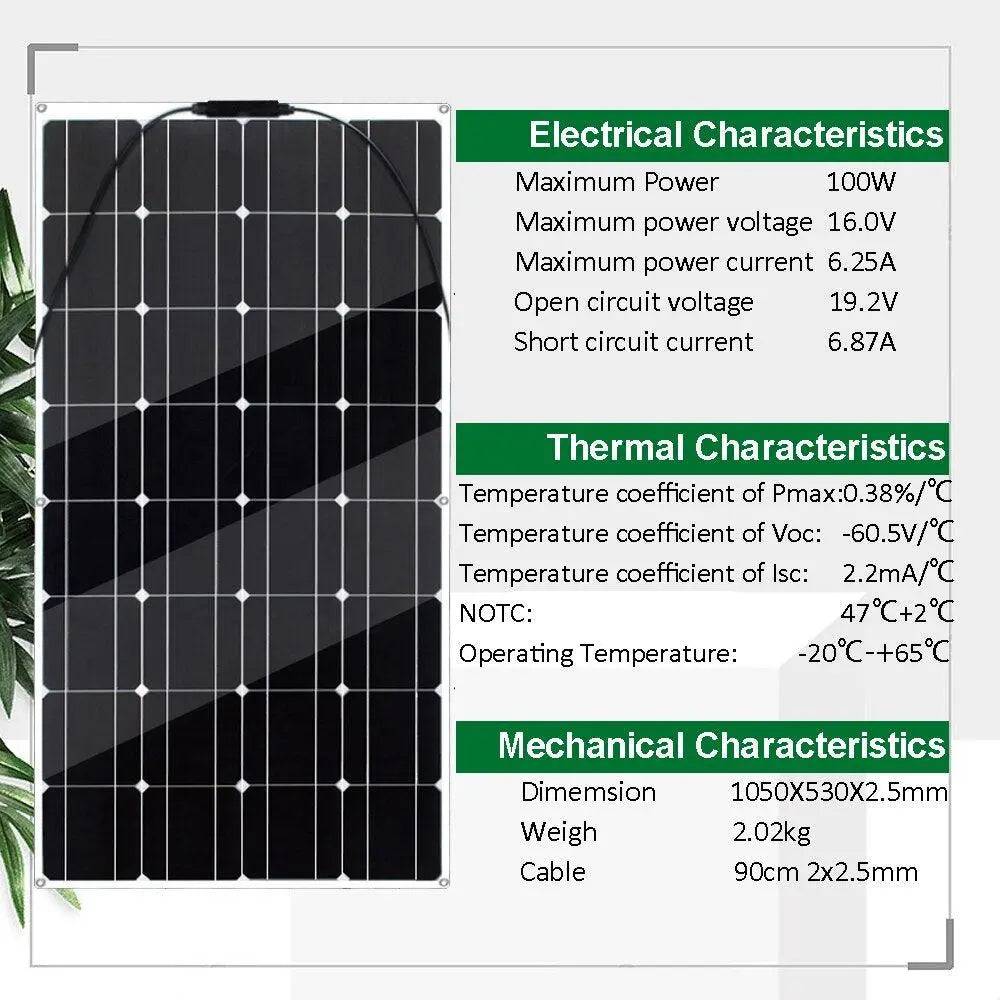

Products Parameter at Standard Test Conditions

Electrical Characteristics

  • Max Power         Pmax         100W
  • Max Power voltage   Vmp  16V
  • Max Power Current   Imp  6.25A
  • Open Circuit Voltage  Voc  19.2V
  • Short Circuit Current  Isc  6.875A
  • Maximum System Voltage  600V
  • Number of cells in Series  32
  • Cell size                                  125X125mm
  • Max Power tolerance           ±3%

Mechanical Characteristics

  • Dimension                          1050X530X2.5mm
  • Weight                                  2.04kg
  • Cable                                  0.9 meter 2X2.5mm
