Solar System 200w 300w Power Generator 12v Off Grid Outdoor Spot Battery Charger Complete Kit for Home Carport

Solar System 200w 300w Power Generator 12v Off Grid Outdoor Spot Battery Charger Complete Kit for Home Carport

Regular price $433.50 USD
Regular price $255.00 USD Sale price $433.50 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Shipping & Returns

The shipping cost varies between $ 0 and 29 USD. The shipping cost is calculated at checkout.

Ships From
Color

SPECIFICATIONS

  • Power: 100w
  • is_customized: Yes
  • cable: 0.9 meter 2X2.5mm
  • Work Time (h): 8
  • Weight: 2.02kg/pcs
  • Specification: Normal
  • Solar Power (W): 600w
  • Short Circuit Current: 6.87A
  • Output Voltage (V): 12v/24v
  • Origin: CN(Origin)
  • Open Circuit Voltage: 19.2V
  • Max Power voltage: 16V
  • Max Power Current: 6.25A
  • Junction: IP 67 waterproof
  • Controller: 12V/24V PWM solar controller
  • Certification: CE,RoHS
  • Application: Home
  • Solar System 300w Power Generator 200w Off Grid Outdoor Spot Battery Charger 100w 12v Complete Kit for Home Carport

Dear buyer, please kindly notice:

1,For Europe Client:

This product is Free shipping without high import tax and ready to ship from our Belgium/Spain-based Warehouse via DHL fast delivery.

2,For Russia Client:

This product is Free shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.

Description

Made from Monocrystalline solar cell, the 16V100W Flexible Solar Panel is light weight, just 2kg, bendable up to 30 degree for curved surface, with waterproof connector, just plug and play. The flexible solar panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panels can charge the 12V & 24V Gel battery, lead acid battery, flood battery or charge the 3.7V, 6V, 9V lithium battery and other DC devices with a regulator.

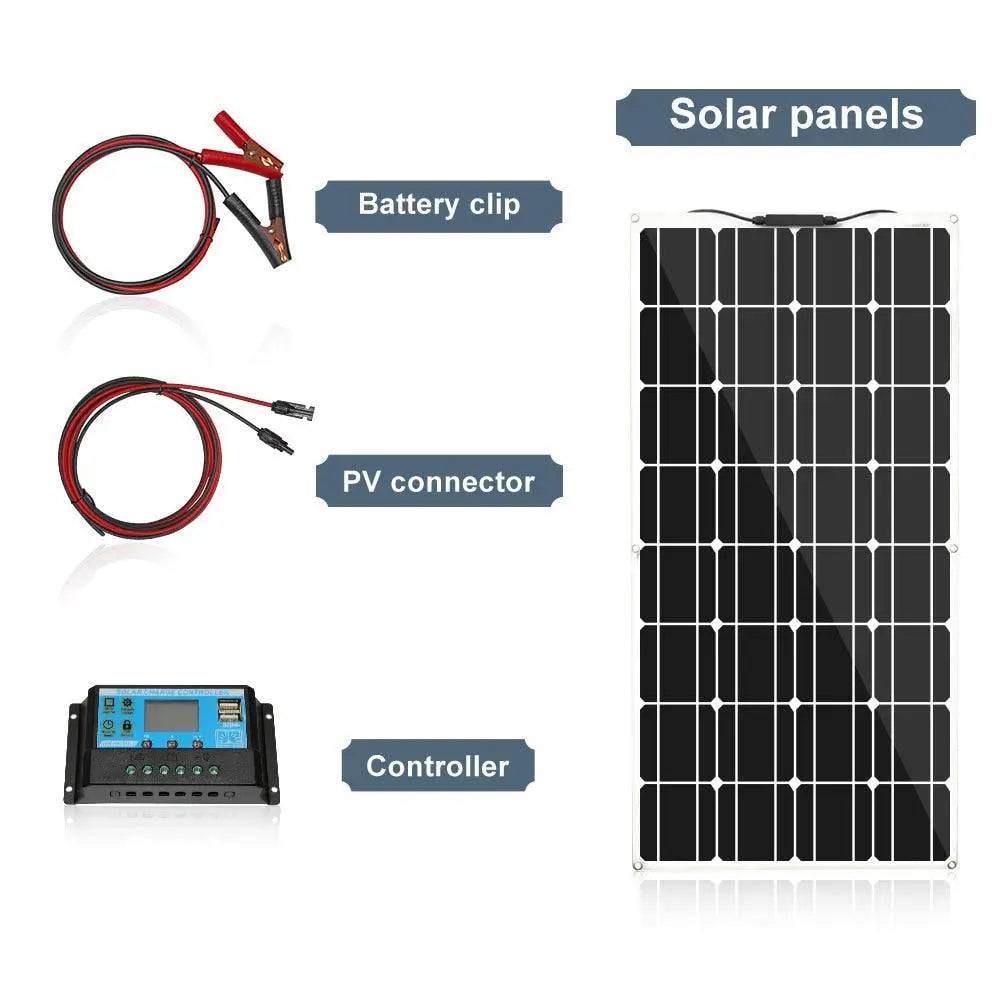

PACKAGE LIST

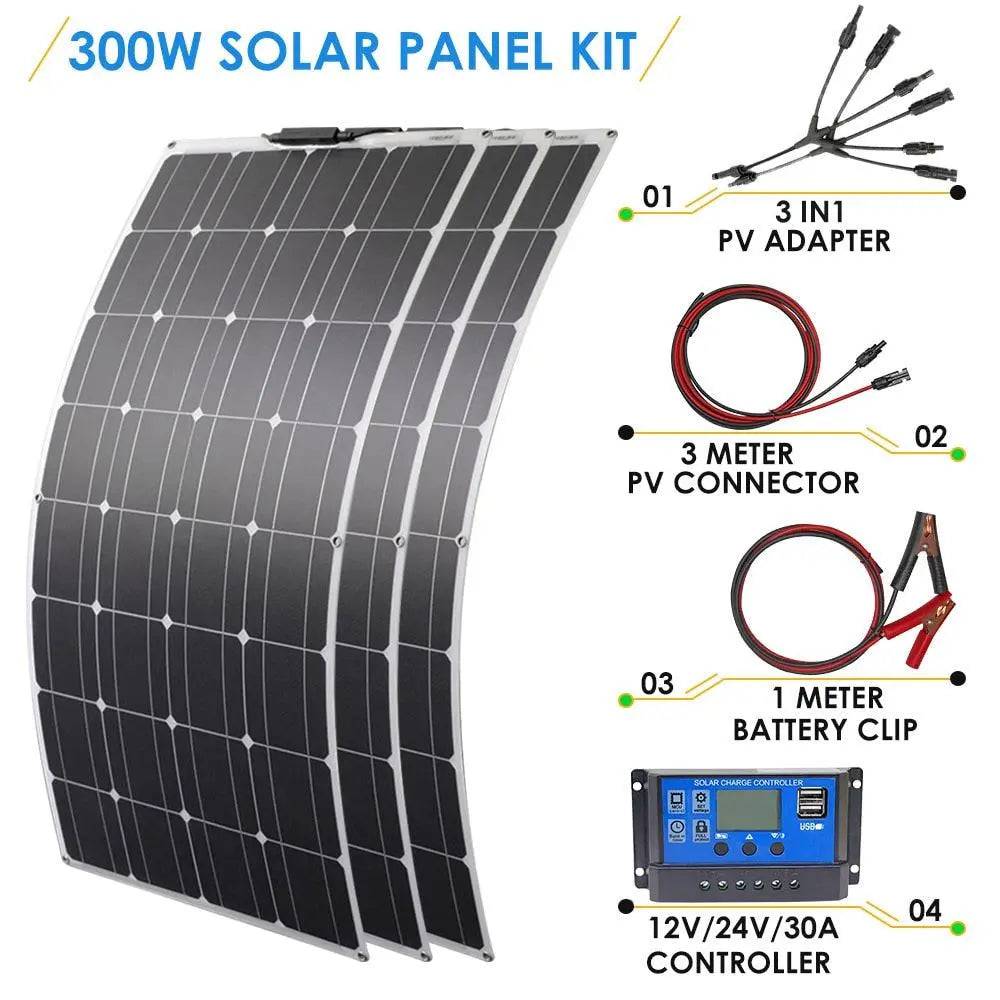

List A: 300W Solar System

▶100W 16V solar panel *3

▶30A 12V/24V solar charger regulator *1

▶3-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

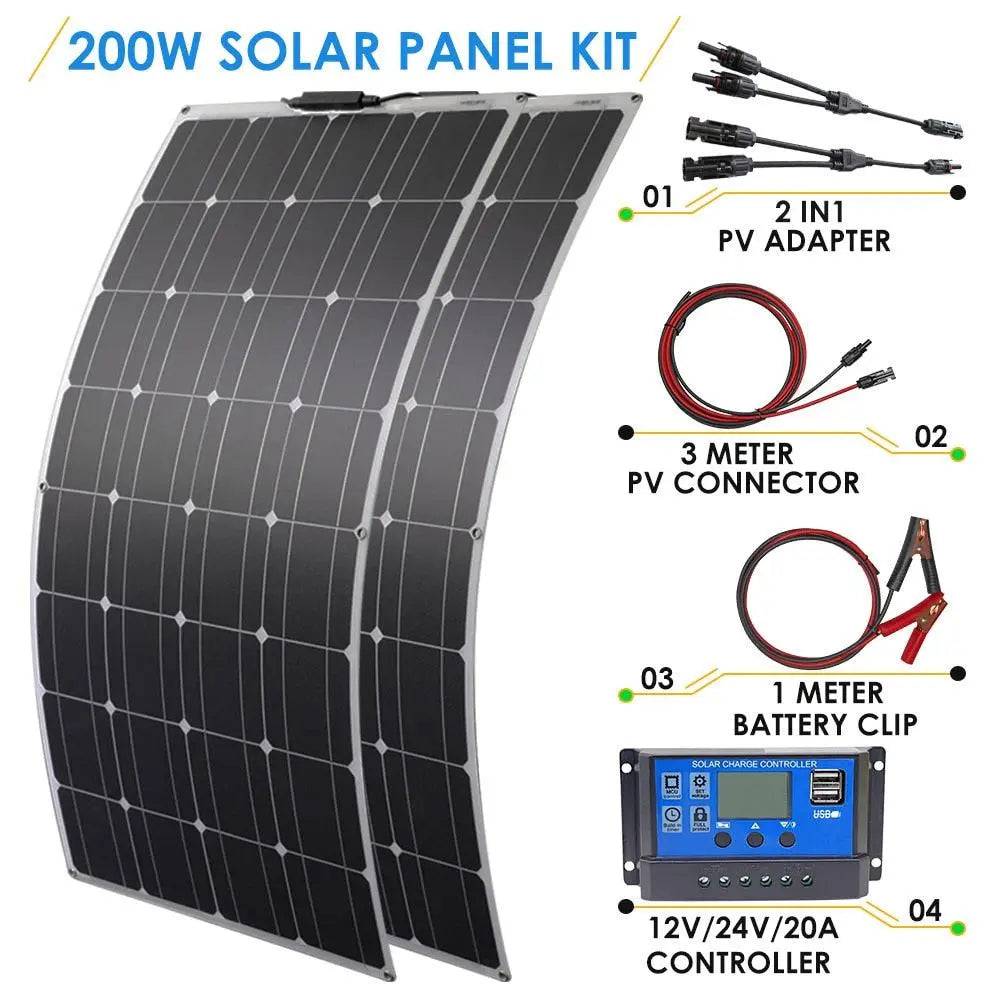

List B: 200W Solar System

▶100W 16V solar panel *2

▶20A 12V/24V solar charger regulator *1

▶2-in-1 PV adapter *1

▶39.37”cable with alligator clips *1

▶118.11”extend cable *1

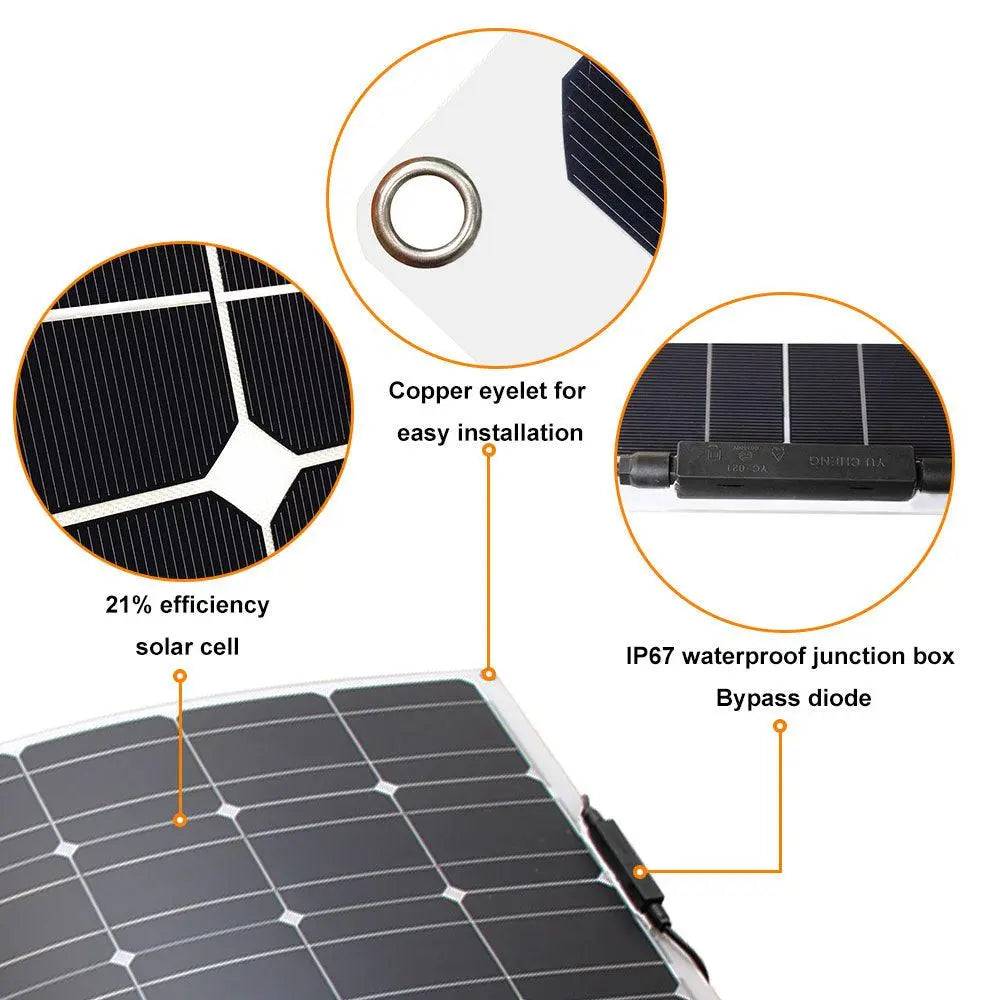

Advantages

High Efficient

High solar cell efficiency: Monocrystalline 21%.Anti-reflective PET to absorb more sunlight keeping higher output

Protection

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Extremely Flexible

This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Ultra Lightweight

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup

Easy to install

Metal holes in the corners of the product for fixing screws and mounting.

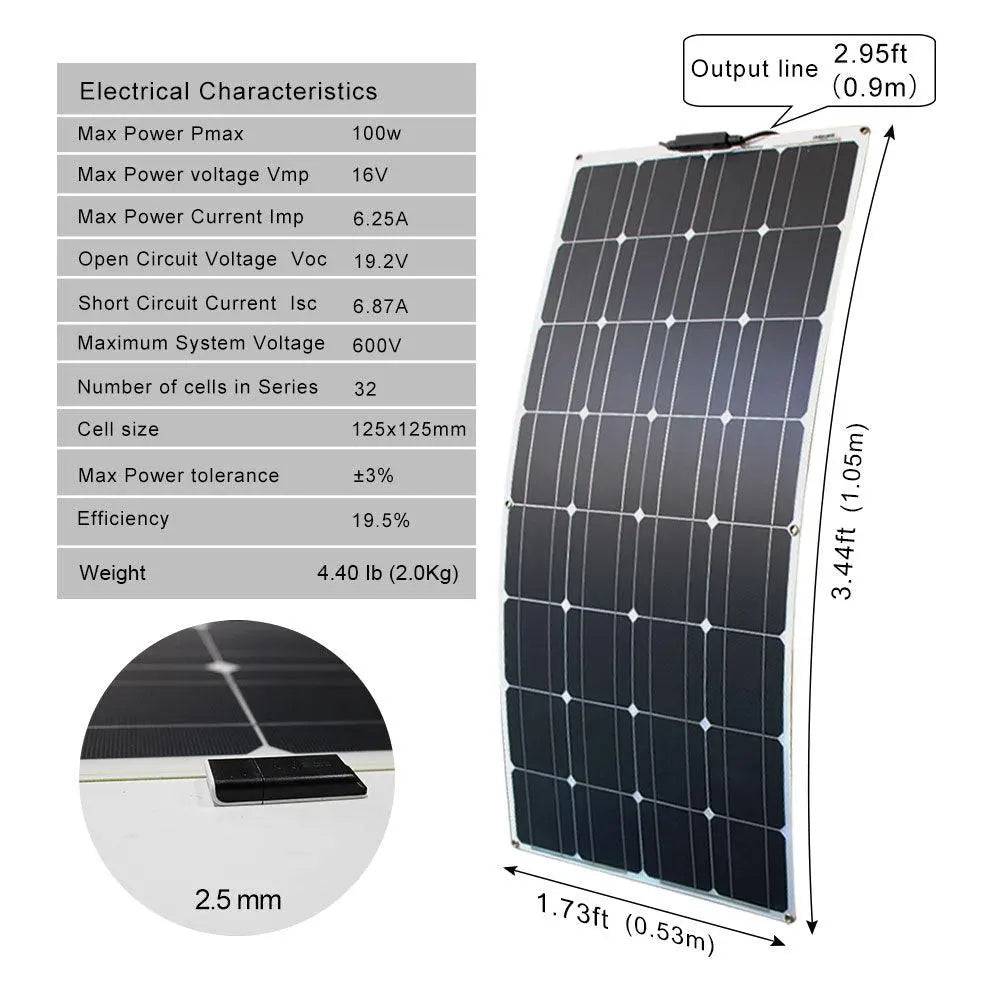

Products Parameter at Standard Test Conditions

  • Electrical Characteristics
  • Max Power Pmax 100W
  • Max Power voltage Vmp 16V
  • Max Power Current Imp 6.25A
  • Open Circuit Voltage Voc 19.2V
  • Short Circuit Current Isc 6.875A
  • Maximum System Voltage 600V
  • Number of cells in Series 32
  • Cell size 125X125mm
  • Max Power tolerance ±3%
  • Mechanical Characteristics
  • Dimension 1050X530X2.5mm
  • Weight 2.04kg
  • Cable 0.9 meter 2X2.5mm

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.
