Split-phase Pure Sine Wave Solar Inverter Power 9000W Battery 24V/36V/48V/96V DC to 110/220V,120/240V AC Converter Wired Control

Name: Split-phase Pure Sine Wave Solar Inverter Power 9000W Battery 24V/36V/48V/96V DC to 110/220V,120/240V AC Converter Wired Control
Brand: 54 Energy - Renewable Energy Store
SKU: 1005006467531121-Europe-48V-120V 240V-CHINA
Price: 2050 USD
Availability: InStock

Regular price $2,050.13 USD

Regular price Sale price $2,050.13 USD

Unit price / per

Sale Sold out

Shipping calculated at checkout.

Socket Type EuropeVariant sold out or unavailable AUVariant sold out or unavailable FranceVariant sold out or unavailable U.KVariant sold out or unavailable USAVariant sold out or unavailable UniversalVariant sold out or unavailable

Input Voltage 48VVariant sold out or unavailable 36VVariant sold out or unavailable 60VVariant sold out or unavailable 24VVariant sold out or unavailable 72VVariant sold out or unavailable 110VVariant sold out or unavailable 96VVariant sold out or unavailable

Output Voltage|Ships From 120V 240V | CHINAVariant sold out or unavailable 110V 220V | CHINAVariant sold out or unavailable

Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Efficiently convert DC power from solar panels to AC power with the Split-phase Pure Sine Wave Solar Inverter. With a power output of 9000W, this inverter allows for battery charging at 24V/36V/48V/96V and provides 110/220V,120/240V AC power for your appliances. Take control with its wired control feature.

SPECIFICATIONS

Type: DC/AC Inverters
Size: 534*304*157 MM
Output Frequency: 50HZ or 60HZ
Output Type: DUAL
Output Current: depends on the voltage
Output Power: 9000 Watts
Weight: 17KGS
Inverter Type: Off Grid DC to AC Split Phase Inverters Converters Transformer
Efficiency: >95%
Color: Black
Socket Type: Full Type
Packing Type: Carton Packing
Shell Type: Iron Shell
Output Voltage: 110V/220V, 120V/240V
Input Voltage: 24V or 36V or 48V or 60V or 72V or 96V or 110V
Input Voltage Range: 21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC
Energy Type: Solar Power, Battery, Car Power,Wind Power

CE/EMC Certified, High Efficiency Full Power 18000 Peak Power 9000W Off Grid Pure Sine Wave Solar Power Split-phase Inverters Converters DC TO AC Voltage Transformer LED Display Iron Shell With Two Output Voltages With Wired Control

About avantage of our inverter:

High quality transformer As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.
Imported capacitor Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.
True copper inductance High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.
EMC tested No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.
Radiating flange With the big radiating flange, better cooling performance, ensure the best inverter working condition.
Big mosfet All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.
Earth line connection Earthe connection for both PCB board and output, more safe for the load and the usage.
PCB thickness The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.

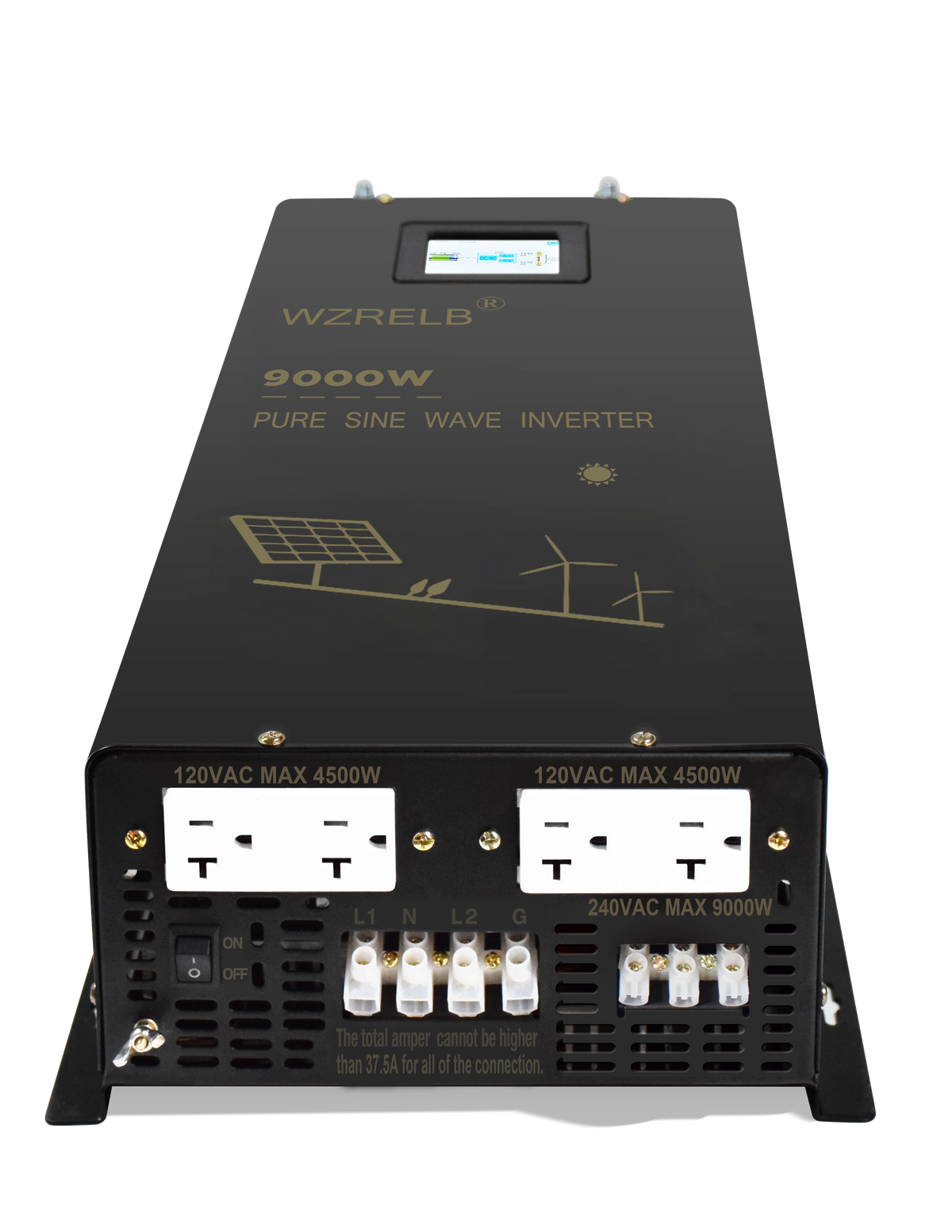

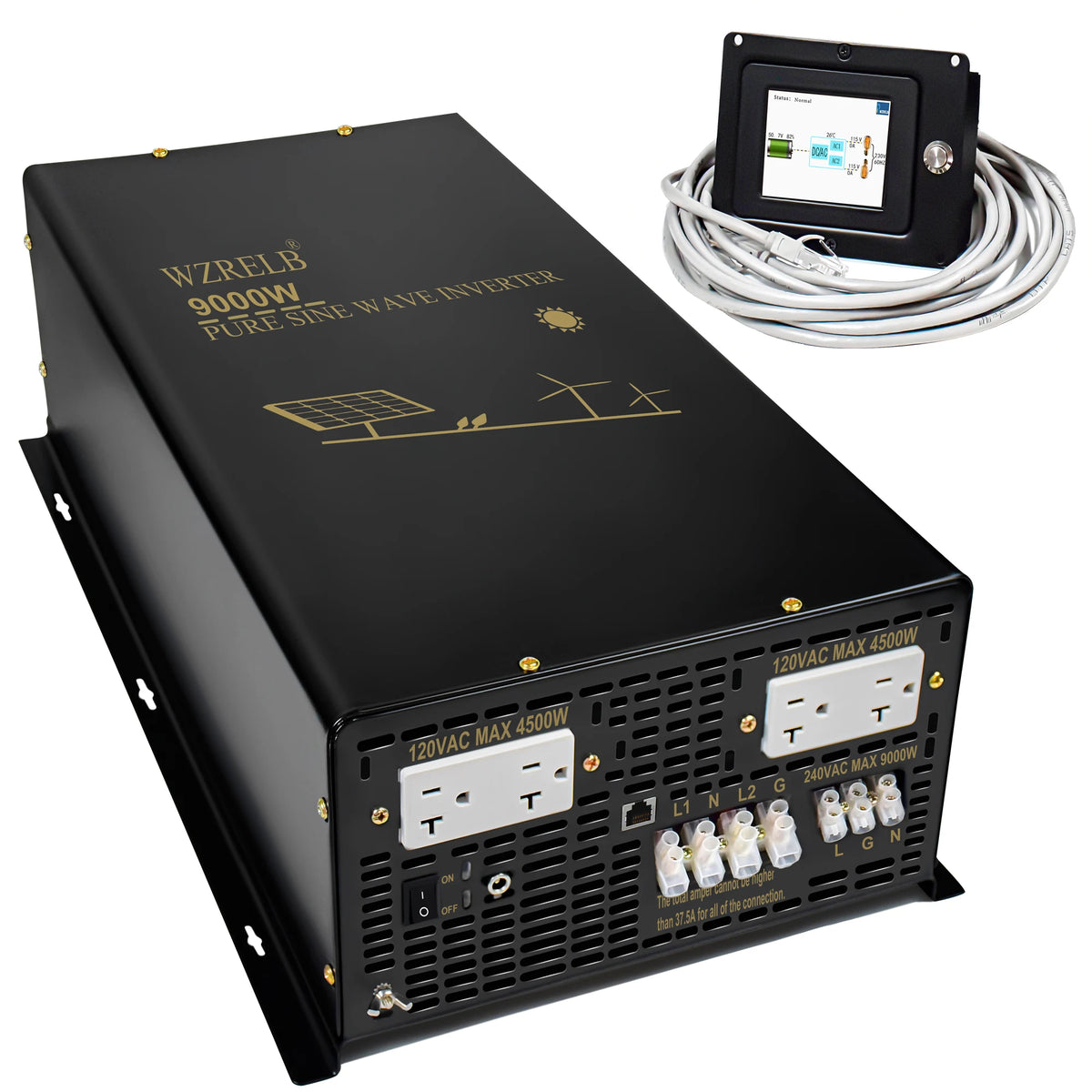

Split-phase inverter with two output voltages, suitable for different voltage devices

Applications of Our Customers:

Product Detail Parameters

DC Voltage	24V or 36V or 48V or 60V or 72V or 96V or 110V
Voltage Range	21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC
NO Load Current Draw	<2A
Efficiency	>90%
DC Connector	Cables With Clips or Car Adaptor
AC Voltage	220VAC or 240VAC
Continuous Power	9000W
Surge Power	18000W
Waveform	Pure Sine Wave
Frequency	50±2Hz/60±2Hz
AC Regulation	3%
Low Voltage Alarm	20.5DC±1V or 32.5VDC±1V or 44.5VDC±1V or 55.5VDC±1V or 68VDC±1V or 92VDC±1V or 105VDC±1V
Low Voltage Shut Down	19.5DC±1V or 31VDC±1V or 42VDC±1V or 55VDC±1V or 60VDC±1V or 84VDC±1V or 100VDC±1V
Over Load	Shut Off Output
Over Voltage Shut Down	30.5V or 45.5V or 55.5V or 75.5V or 90.5V or 110.5V or 120.5V
Over Thermal	Shut Off Output Automatically
Fuses	Short Circuit
Working Temperature	Between -10centi and +50centi
Working Humidity	20%~90%RH non-condensing
Storage Temperature	Between -30centi and +70centi
Start	Soft Start
Cooling Ways	Cooling Fan
Total Harmonic Distortion THD	<5%
Machine Size(mm)	534304157
Packing Size(mm)	710390290
Net Weight(kgs)	17KG
Gross Weight(kgs)	21KG
Packing Type	Carton Packing

Feartures:

Pure Sine Wave, as good as the grid power
Full Power
Core Technology, German Design
Most Advanced Program in Software
Complete Protection Non Defect Rate,
Better EMC - Electro Magnetic Compatibility,
No Noise for TV or Stereo Sound
SMT- Surface Mounting Technology
All Big Imported Mosfet,Strong Driving Capacity
PCB Thickness :2.00m
LED Display
Compact Design, Less Weight, Full Power,
Single Layer Design, Easy to Repair if any.
Earth Connection for Both Inverter and PCB,
Low No Load Current Draw
Durable quality with 10 years usage,

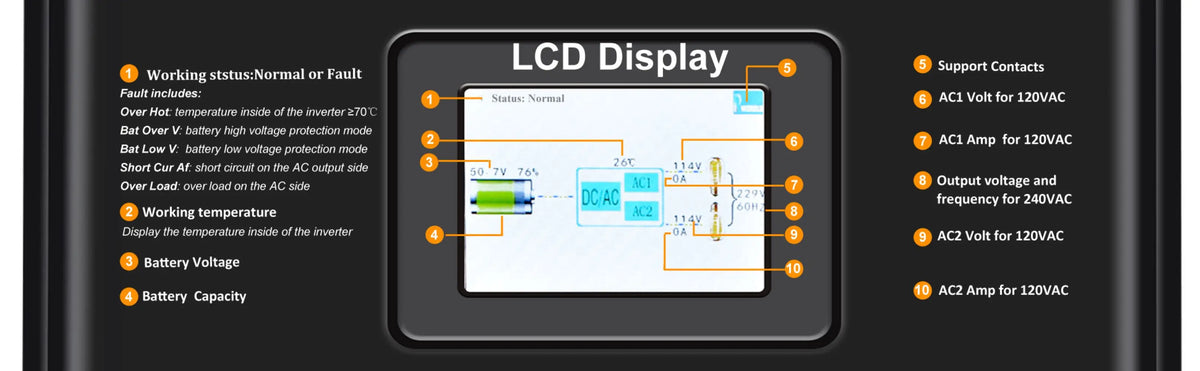

Alarm and LED Indication Light for error warning.New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.
Sufficient Heat Radiation
More Vent Holes on the plates and the bottom for heat radiation
Popular Metal Black Design
Big Current Connector,
All kinds of socket are available
Strong Wiring Row on AC End,
Best quality ever in the market
Factory Price.
Split-phase, one inverter has two output voltages.
