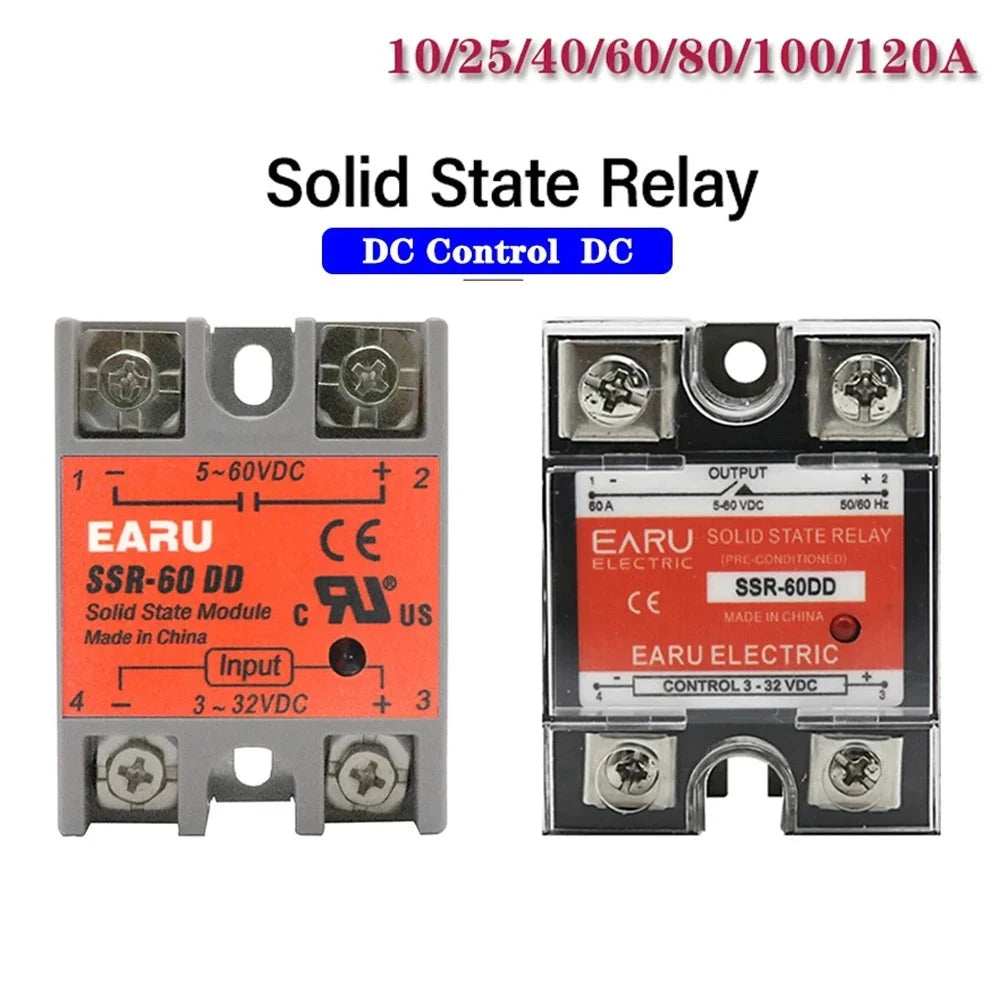

SSR-25DD SSR-40DD SSR 10A 60A 80A 100A Single Phase Solid State Relay Module DC 3-32V Input DC 5-60V Output Voltage Transformer
SSR-25DD SSR-40DD SSR 10A 60A 80A 100A Single Phase Solid State Relay Module DC 3-32V Input DC 5-60V Output Voltage Transformer
Couldn't load pickup availability
This SSR solid state relay module has a wide input and output range, perfect for single phase voltage transformers. With options of 10A, 60A, 80A, and 100A, it provides efficient and reliable power control. Its compact size allows for easy installation and integration into various electronic systems.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Usage: General Purpose
- Theory: Solid State Relay
- Model Number: SSR 10DD
- Protect Feature: Epoxy
- Power Source: DC
- Contact Load: High Power
- Usage: Protective
- Texture of Material: Metal base plate
- Power Source: DC

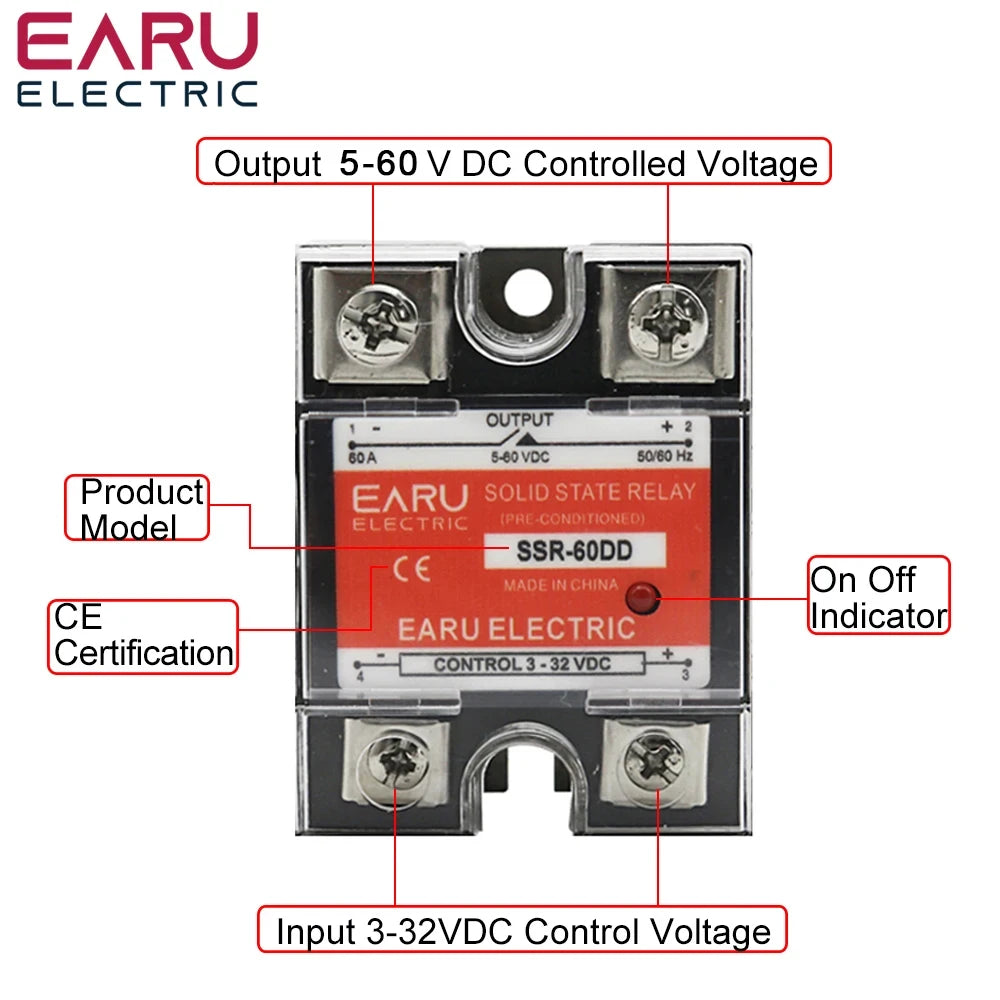

- Input: 3-32V/DC
- Output: 5-60V/DC

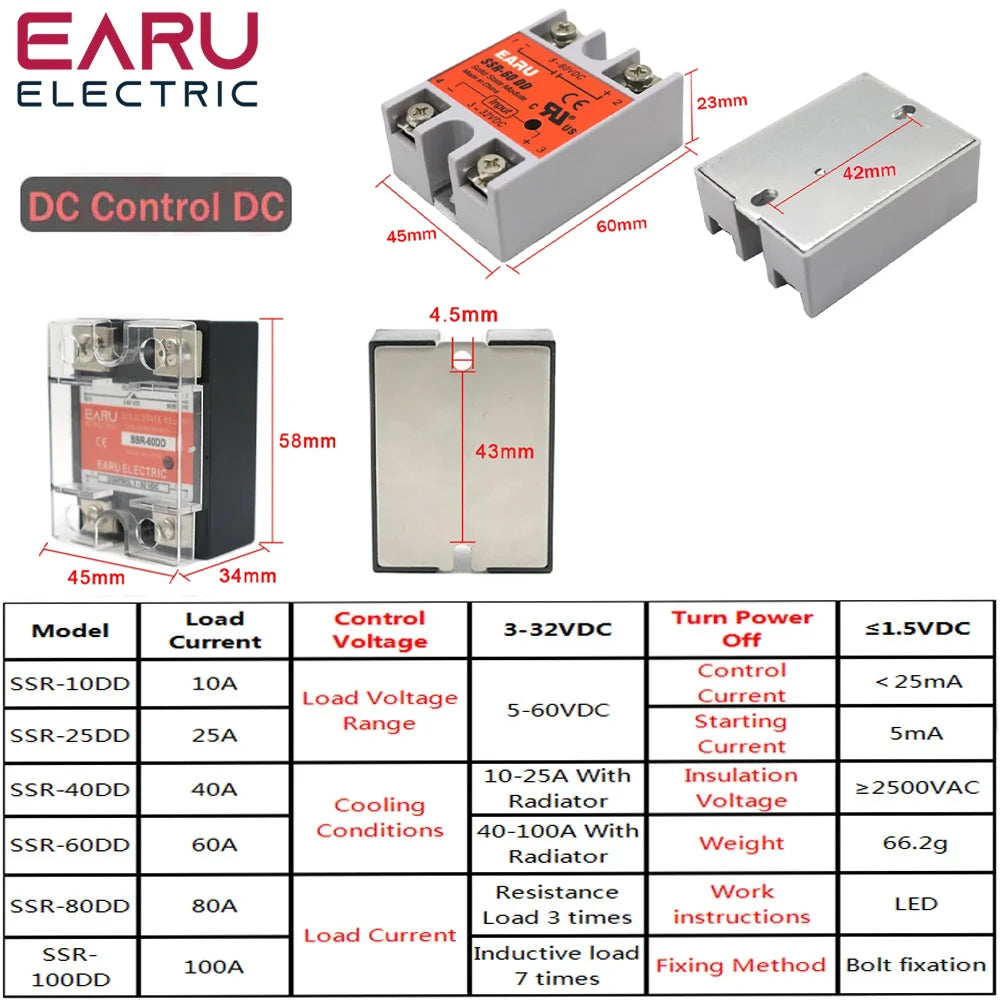

- Model Number 1: SSR 10DD/SSR 25DD/SSR 40DD
- Model Number 2: SSR 60DD/SSR 80DD/SSR 100DD
- Model Number 3: SSR120DD
We can provide OEM service to print your logo on the relay, if you get any need, feel free to contact us to send us message. SSR-60DD Solid State Module Relay DC-DC Single Phase SSR 1-120A 60A 80A 120A Current 3-32V 5V 12V DC to 5-60V DC Load Without Cover You need choose the correct type (the current and the control Mode) Also a suitable radiator(to dissipate heat of SSR) is improtant.

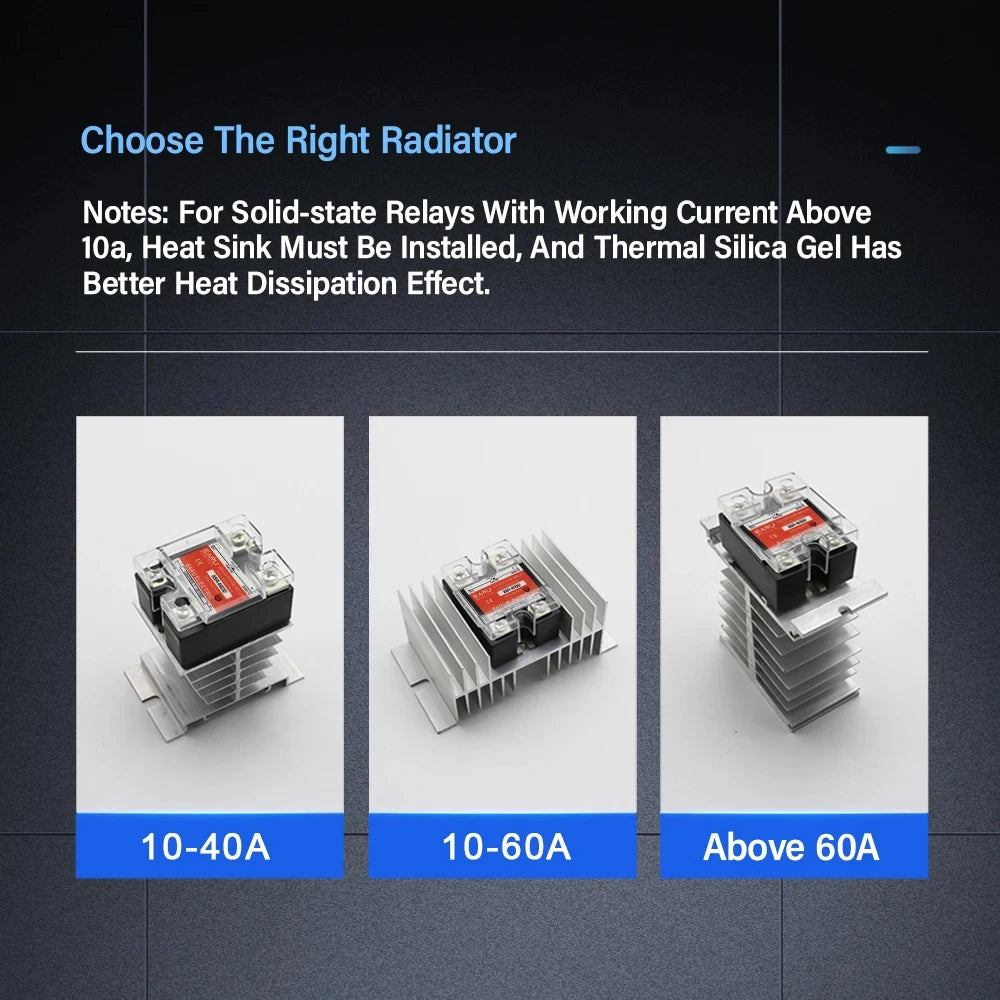

Notice: As the generate heat of SSR is too high,SSR must be loaded on Radiator when the current of load is over 10A.And there are must put the thermal Grease Compound between SSR and Radiator.
- In meanwhile, the cooling fan is necessary when the current is over 60A.
- The Ratio depend on The kind of loading for your Equipment.
- Resistive load: 60% Inductive load: 30%
