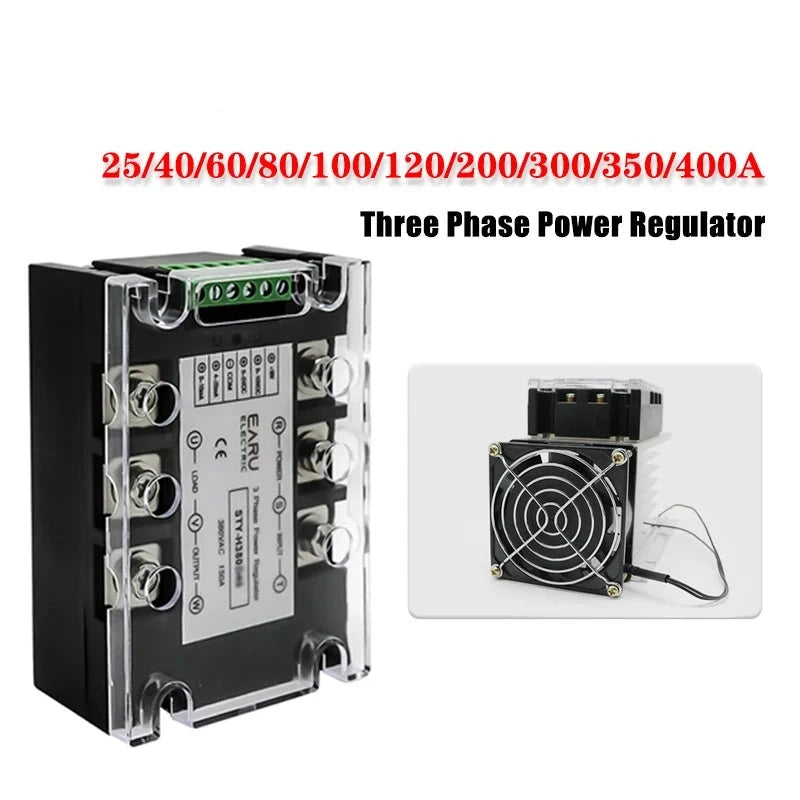

Three Phase AC Voltage Regulating Module Power Regulator Thyristor 380V Solid State Relay Dimming 25A-400A Potentiometer Control
Three Phase AC Voltage Regulating Module Power Regulator Thyristor 380V Solid State Relay Dimming 25A-400A Potentiometer Control
Couldn't load pickup availability
Efficiently regulate voltage with our Three Phase AC Voltage Regulating Module. Featuring a solid state relay and thyristor, this module is capable of dimming between 25A-400A using a potentiometer control. Perfect for precise and customizable power regulation in a variety of settings.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Voltage: 380V
- Model Number: STY-H380
- Theory: Solid State Relay
- Protect Feature: Sealed
- Usage: Protective
- Contact Load: High Power
- Power Source: AC

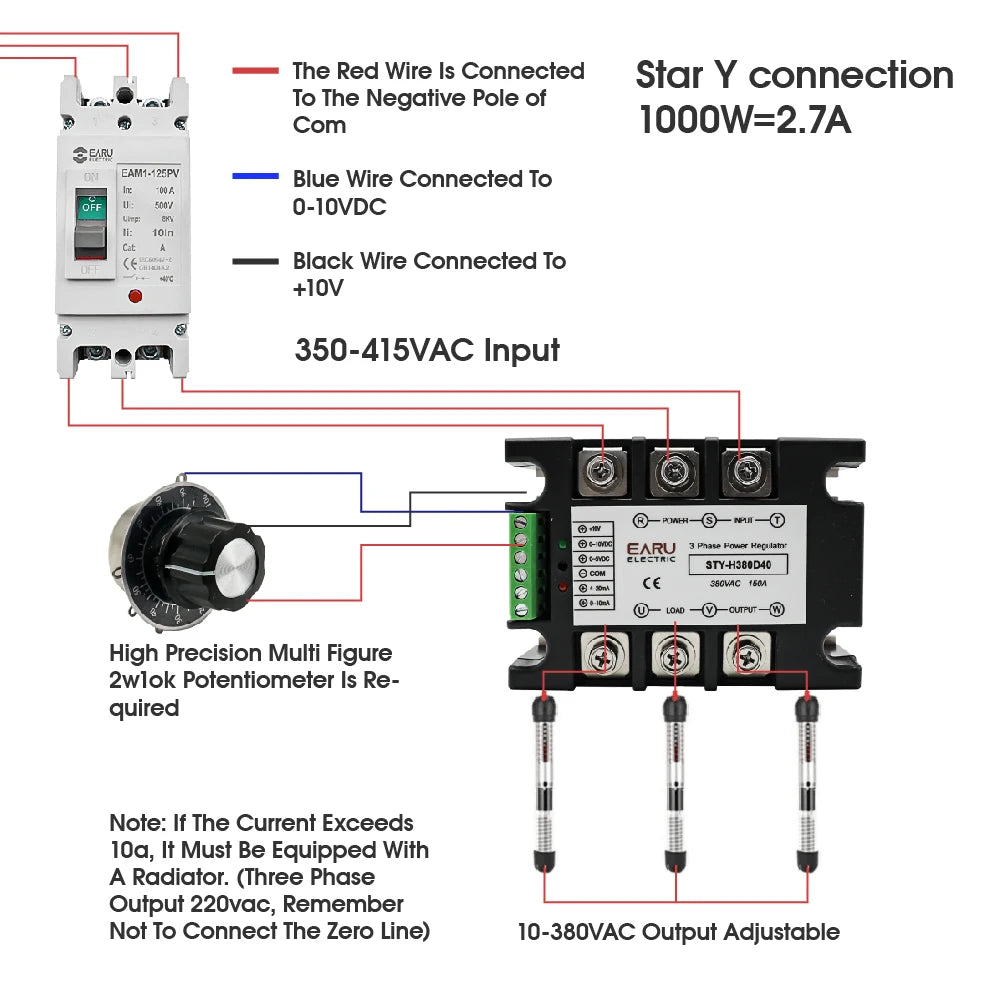

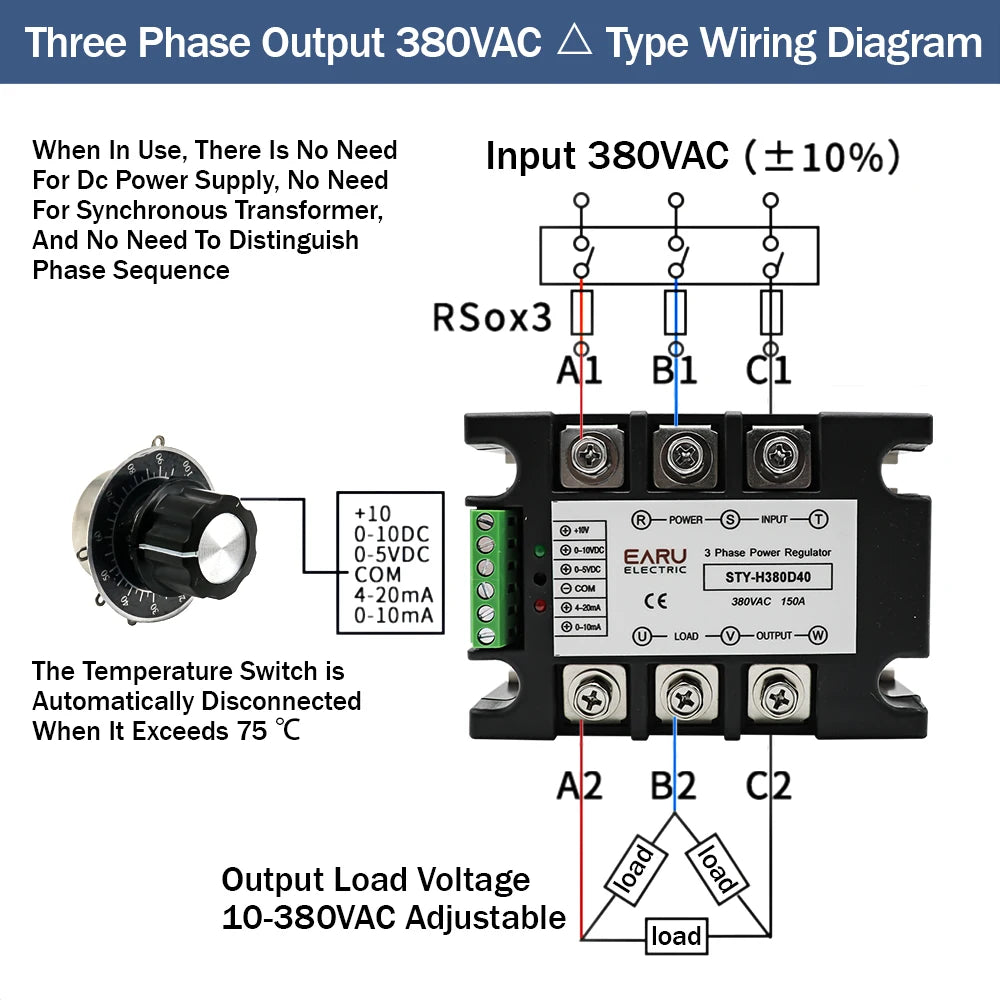

Three-phase intelligent AC voltage regulator module, containing three potential detection, constant current source, linear amplifier, phase shifter, PI control, power amplifier, pulse shaping, high frequency pulse transformer isolation trigger and three sets of inverse parallel controllable silicon chip integration, control loop (weak electric part) and the load loop (high voltage) implementation full isolation, you can use the 10K potentiometer or (1~5V)(4-20mA) voltage signal control, to change the conduction angle of the thyristor, can realize three-phase load voltage from 0V to full voltage adjustable stepless.
Technical Parameters
- Circuit Voltage: 380VAC
- Power Supply: 10VDC
- Adjustment Range: 0~180 °
- Potentiometer : 10K

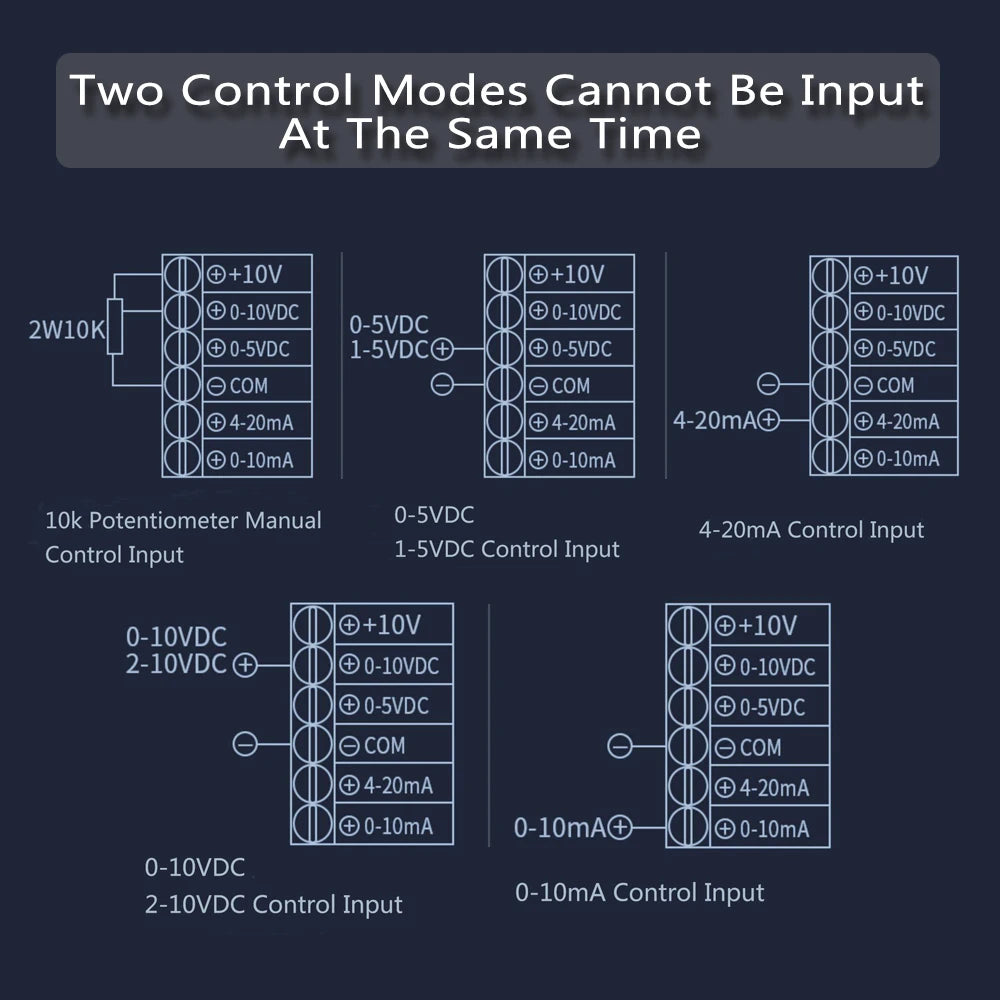

- input control: 0~5VDC 4-20mA
Note: The type of voltage regulating module is not suitable for inductive loads such as transformers and motors.
