Tuya APP 1P+N AC110V 220V 16A WiFi Smart Circuit Breaker RCBO Timer Relay Switch Remote Control kWh Energy Power Meter Monitor

Tuya APP 1P+N AC110V 220V 16A WiFi Smart Circuit Breaker RCBO Timer Relay Switch Remote Control kWh Energy Power Meter Monitor

Regular price $45.42 USD
Regular price $0.00 USD Sale price $45.42 USD
Sale Sold out
Shipping calculated at checkout.
Rated Current

This WiFi smart circuit breaker allows you to remotely control your energy usage and monitor your power consumption with the Tuya app. Its timer and relay functions make it a convenient and efficient way to manage your electricity. Available for 1P+N AC110V 220V and 16A.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Type: Mini
  • Rated Voltage: 220V
  • is_customized: Yes
  • Type: Circuit breaker
  • Model Number: ATMS16C12
  • Is Smart Device: YES
  • feature: Remote control at anytime from anywhere
  • connect: WIFI
  • feedback: real time status feedback
  • Share: Share with all family mebmer
  • set: Scene Set/go out home / arrive home
  • APP: Tuya/ Smart Life
  • function: smart switch
  • Working Voltage: AC 100-240V
  • Working Current: 16A
  • Frequency: 50/60Hz
  • Ambient temperature range: -10℃-+60℃
  • Function 1: Smart Energy Meter WiFi
  • Function 2: Coundown Time Control
  • Function 3: WiFi Smart Timer Control
  • Support: WiFi 2.4GHz
  • Programs: max. 100 on/off each day
  • Max Operating Current: 19A & Under
  • Measuring Energy Range: 99999.99
  • Timing Switch: Schedule ON/OFF
  • Phase: single phase
  • Accuracy Class: 1
  • Countdown time: from 1 Min to 23 Hours 59 Mins
  • Mounting: Din Rail 35mm
  • key type: Touch Button
  • Function 4: kWh
  • Function 5: Current Ele(mA)
  • Function 6: Current Power(W)
  • Function 7: Current Voltage(V)
  • Function 8: Total Ele(KWh)
  • Function 9: Residual current protection
  • Leakage response time: ≤0.1S
  • Rated residual operating curren: 30mA

We can offer OEM service to manufacture the circuit breaker with your logo, if you need,feel free to contact the seller!



Product Descriptions :

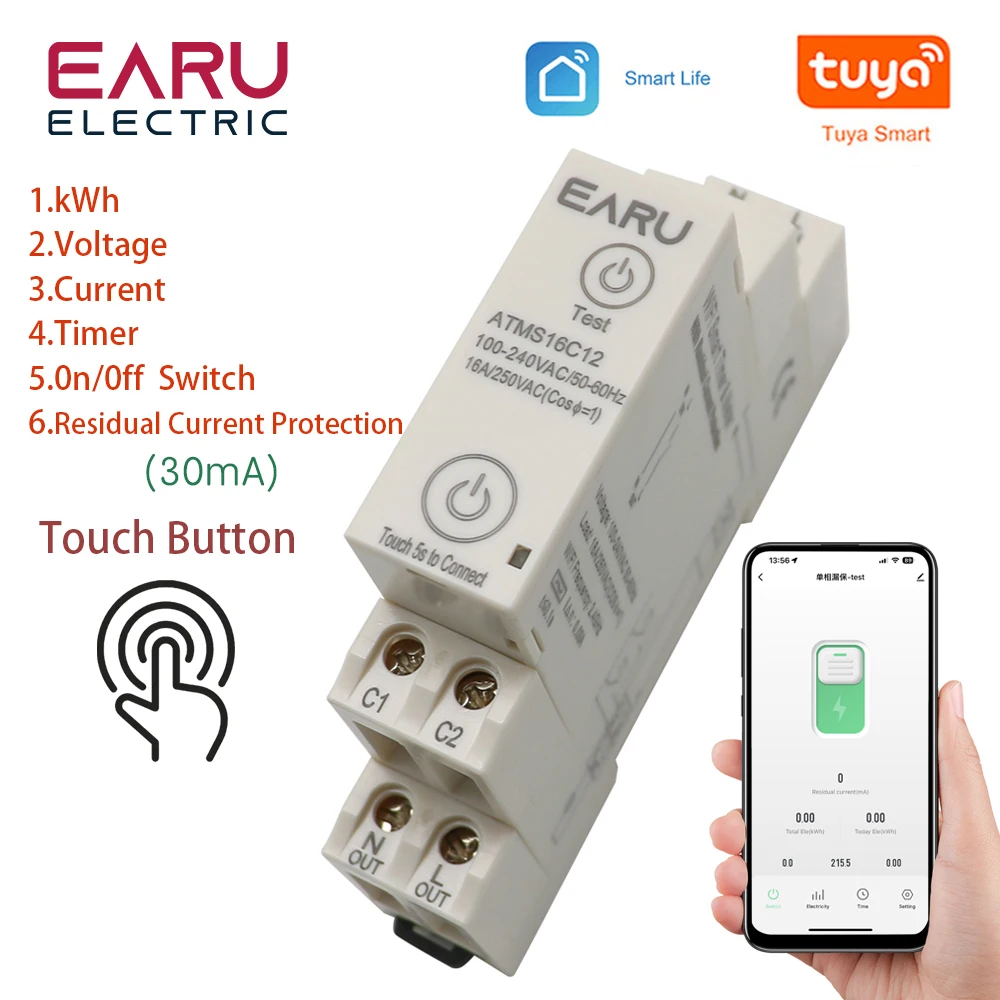

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere
2. In the mobile APP can display: Today Energy KWh,Voltage,Current,Power,Total Energy KWh. Residual current protection
3. Schedule Time / Timer, 30 kinds of timer models
4. Related Voltage: 100-240V AC 50/60Hz
5. Rated Current: 16A

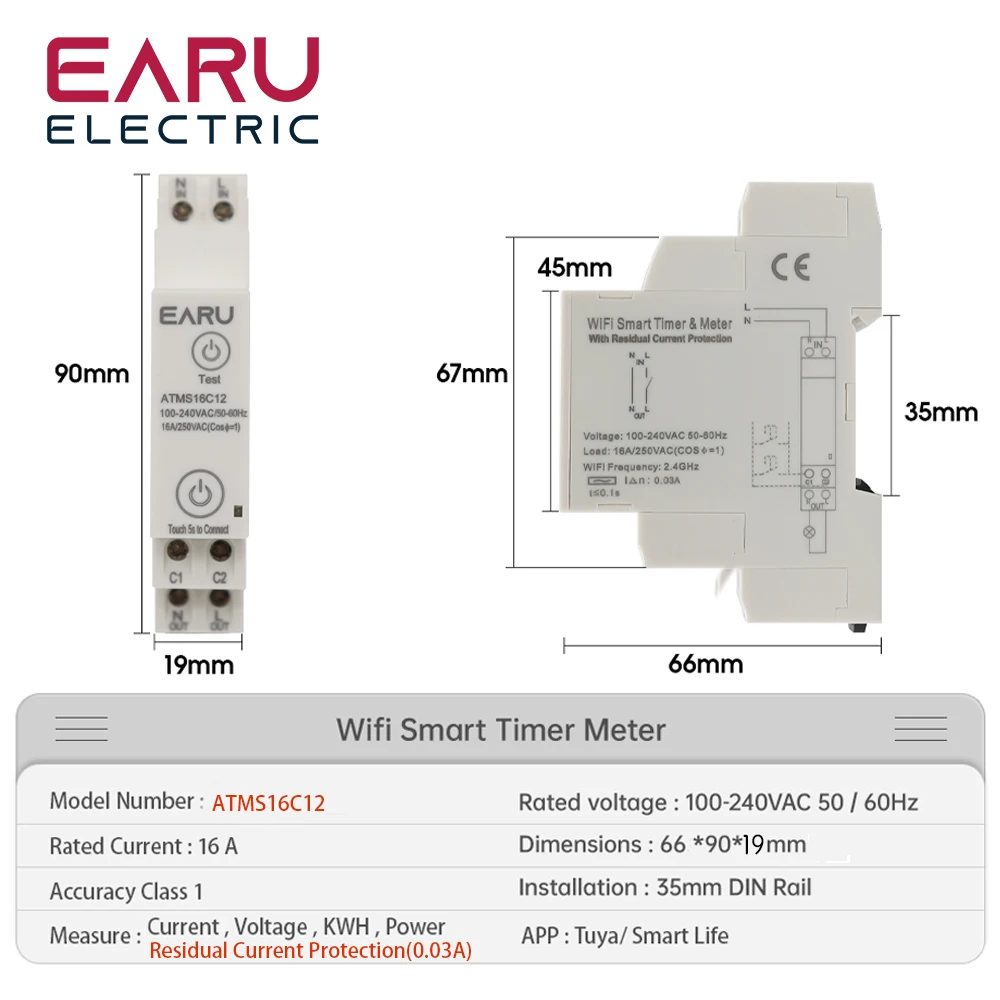

6. Dimensions: 66*90*19mm

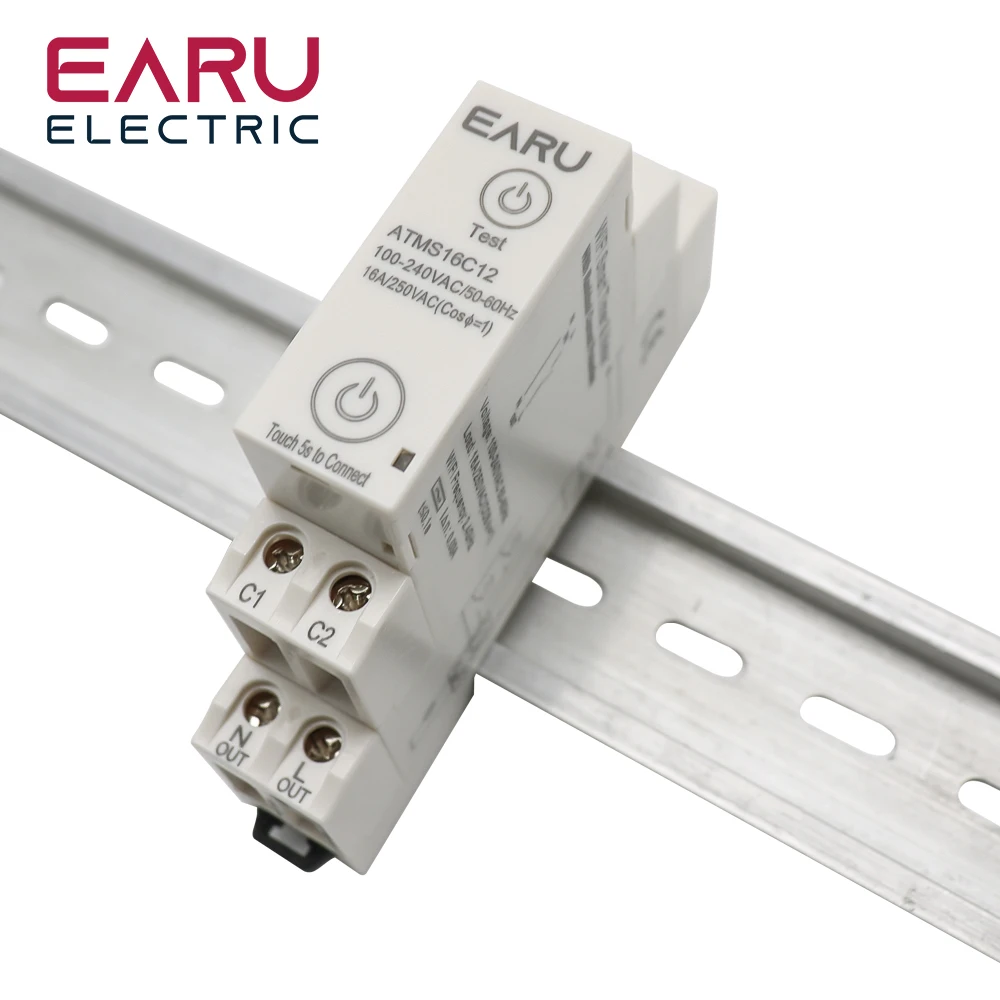

7. Mounting: Din Rail 35mm
8. Contact configuration: 1NO (SPST-NO)
9. Wifi Frequency: 2.4GHz
10. Ambient temperature range: -10℃-+60℃

11. Can set 100 On/Off programs one day or per week.
12. Countdown time, from 1 Min to 23 Hours 59 Mins.
13. If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.
14. With Memory function, when the product contact is in the closed state, after the power failure,and then power resumed,the product contacts still keep the closed state.

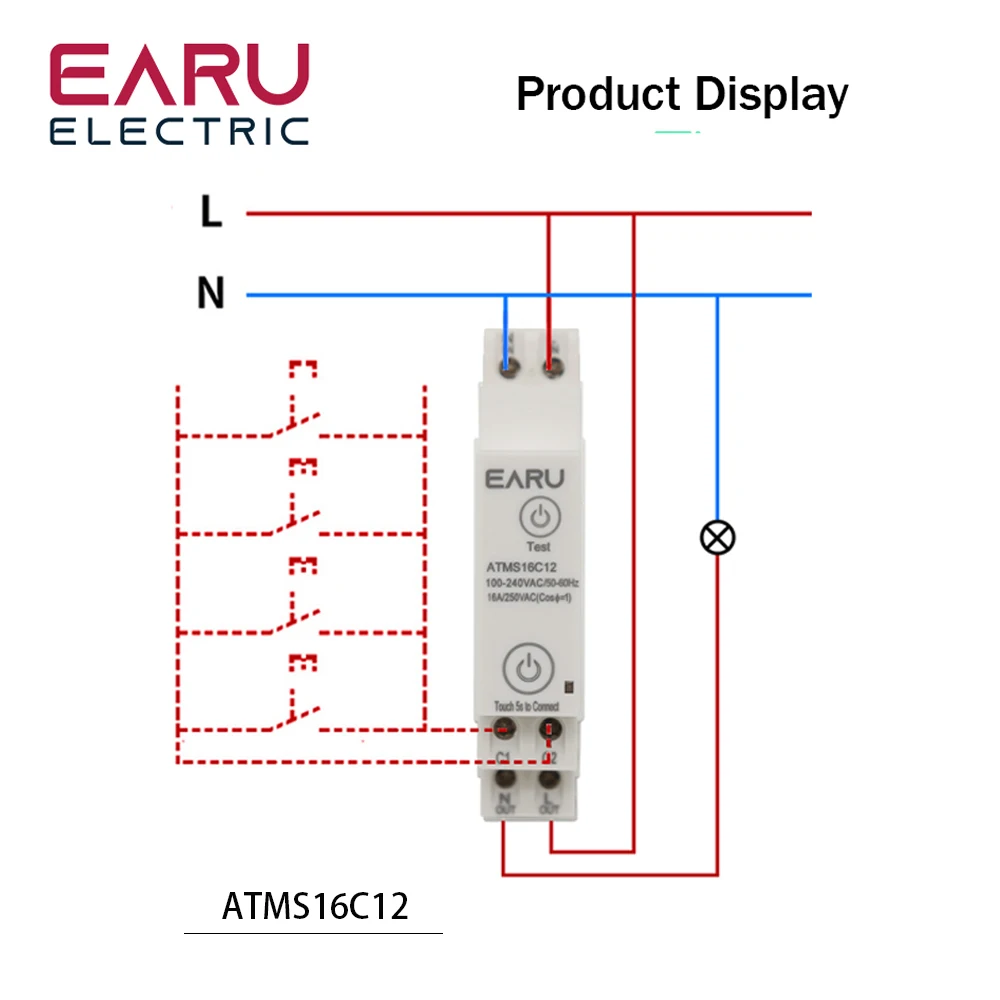

15. Also can controlled by Tact Switch from terminals C1 and C2 .
16. Can be shared with 100 peoples by Mobile App.
17. Limit current 16A, if load exceeds 18A, the product will automatically disconnect load circuit.

Note: This meter have no short circuit ,overload protection

            Only supports 2.4G Wireless Network,  NOT for 5G





1.Download APP
Search"TuyaSmart”or "Smart Life"in APPstore and download APP,register an accountand create family.
