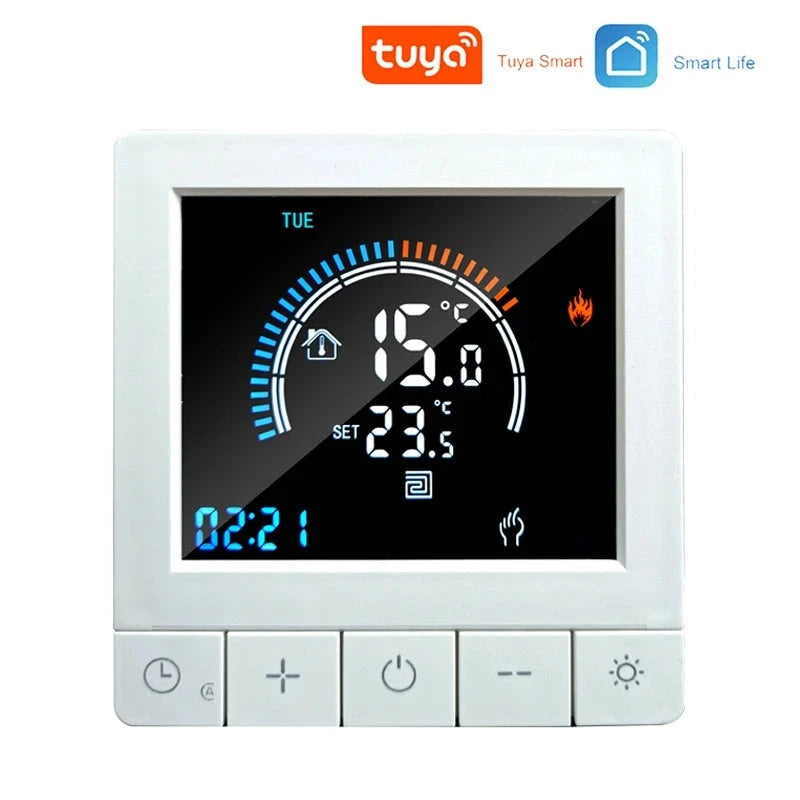

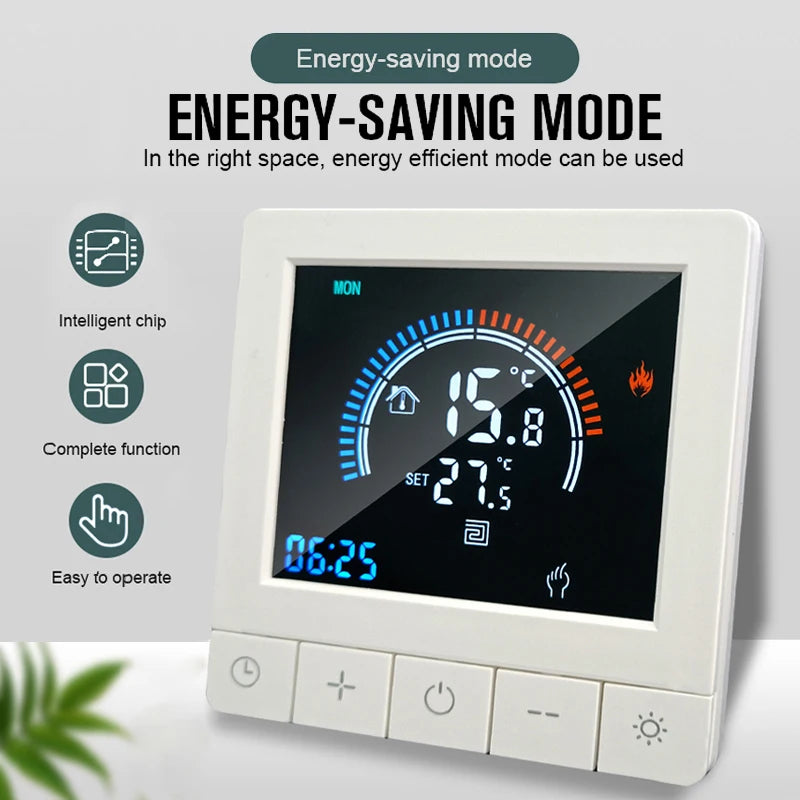

TUYA WiFi Smart Thermostat Temperature Controller For Electric Floor Heating Water Gas Boiler Digital LCD Display Wall Mounted

TUYA WiFi Smart Thermostat Temperature Controller For Electric Floor Heating Water Gas Boiler Digital LCD Display Wall Mounted

$41.52 USD
$0.00 USD $41.52 USD
Sale Sold out
Shipping calculated at checkout.
Color

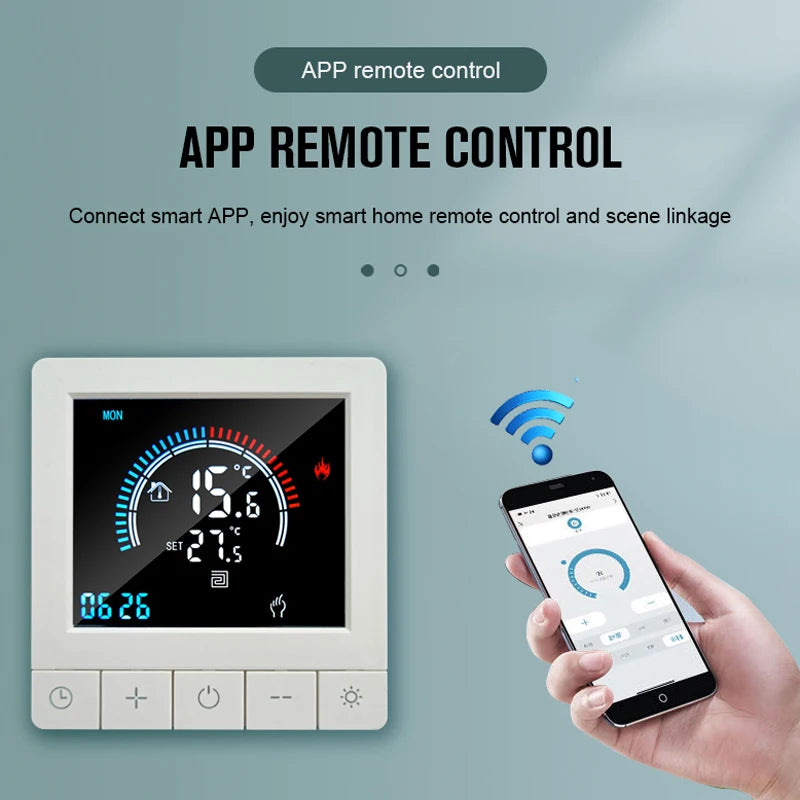

Efficiently control and monitor your home's heating with the TUYA WiFi Smart Thermostat. This wall-mounted device boasts a digital LCD display and is compatible with electric floor heating, water, and gas boilers. With its TUYA app integration, you can easily adjust and set precise temperatures for optimal comfort and energy savings. Enjoy a smarter, more comfortable home with this advanced thermostat.

SPECIFICATIONS

  • Temperature Sensor: NTC
  • Temperature Accuracy: ±1℃
  • Display: LCD
  • Working Environment: -5~50℃
  • Power Consumption: <1W
  • Temperature Setting: 5~60℃
  • Display Range: 0~50℃
  • Input Voltage: AC 90-240V

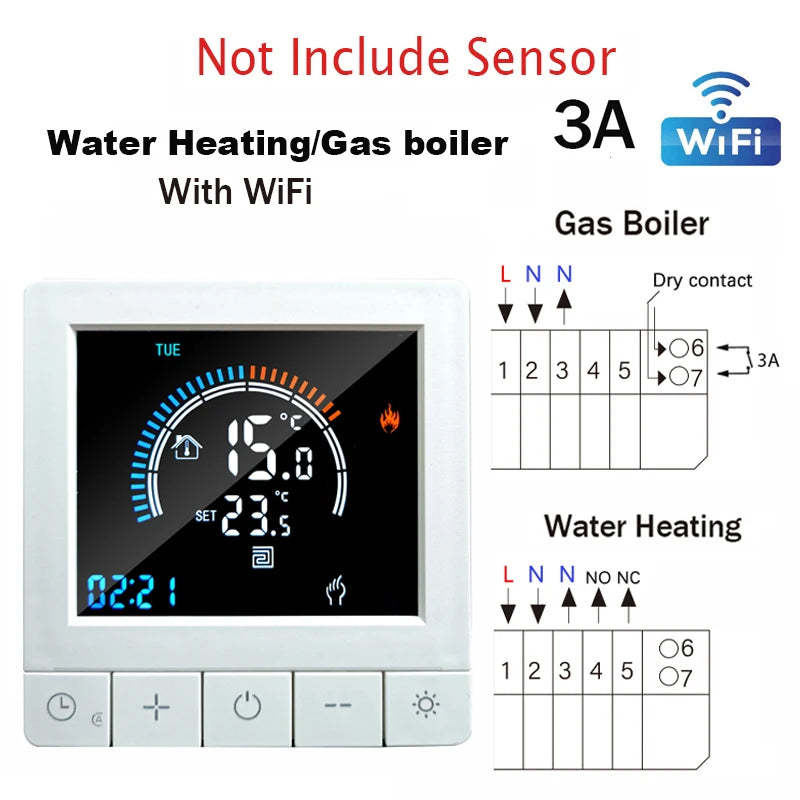

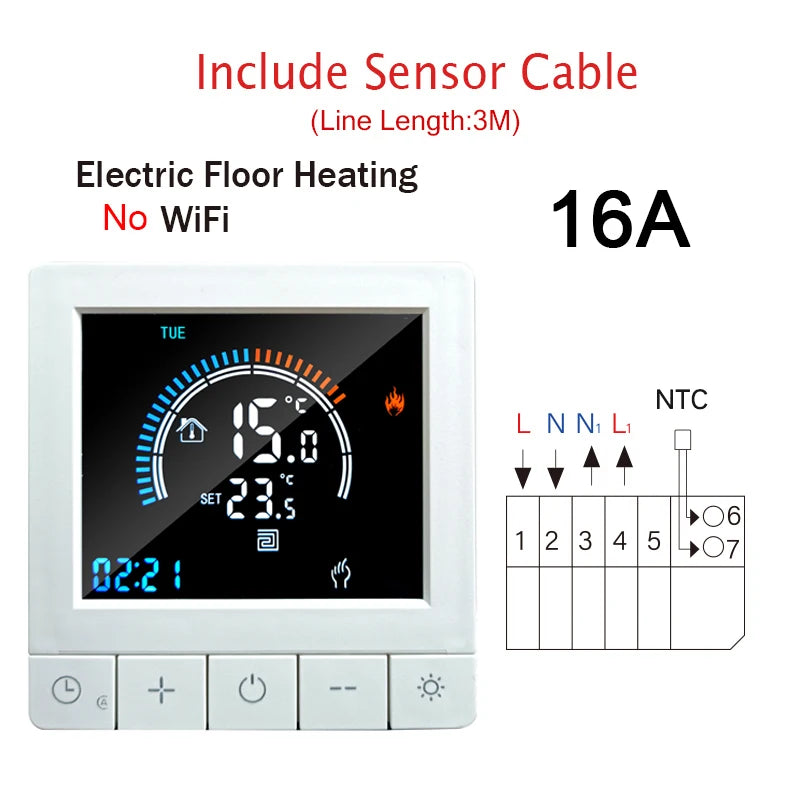

  • Load Current: Plumbing 3A(resistive),electric heating 16A 20A

Specification

  • Material:Anti-flammable PC
  • Voltage:AC 230V,50/60Hz
  • Max. Current Load: 3A/16A
  • Temperature Accuracy: ±1℃
  • Temperature Setting: 0-80℃
  • Item Size: 86 * 86 *mm/ 3.4 * 3.4in
  • Power Consumption:＜1W
  • Temperature Sensor:NTC

User Operation

  • Power on/off: Press key to turn on/off the thermostat
  • Press M key to switch between manual and automatic modes.
  • In automatic mode, press key or key to enter automatic temporary mode, which only runs for several minutes.
  • Press key to enter the clock setting, and press keys to adjust the value of each parameter.
  • Note: WiFI model will automatically obtain the Internet time.
  • The child lock is off by default at the factory. If you want to use this function, you need to enter the advanced option to enable the child lock function. Long press button for 5 seconds to temporarily turn off it.

Mode Description

  •  ＋floor heating manual mode
  • 🕐+ floor heating automatic mode

Period Programming Instructions

In the power-off state, long press key M+🕐 key, then press M key to switch options, press 🔼 key or🔽 key to adjust the parameters, and press key to exit with saving.

Advanced Option Settings

  • In the power-off state, press M key and🔽 key simultaneously for 5 seconds to enter advanced option setting.
  • Press M key to enter the next option, press🔼key and🔽 key to adjust, and press key to exit advanced option.
