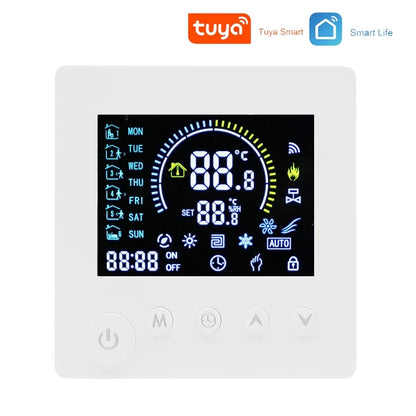

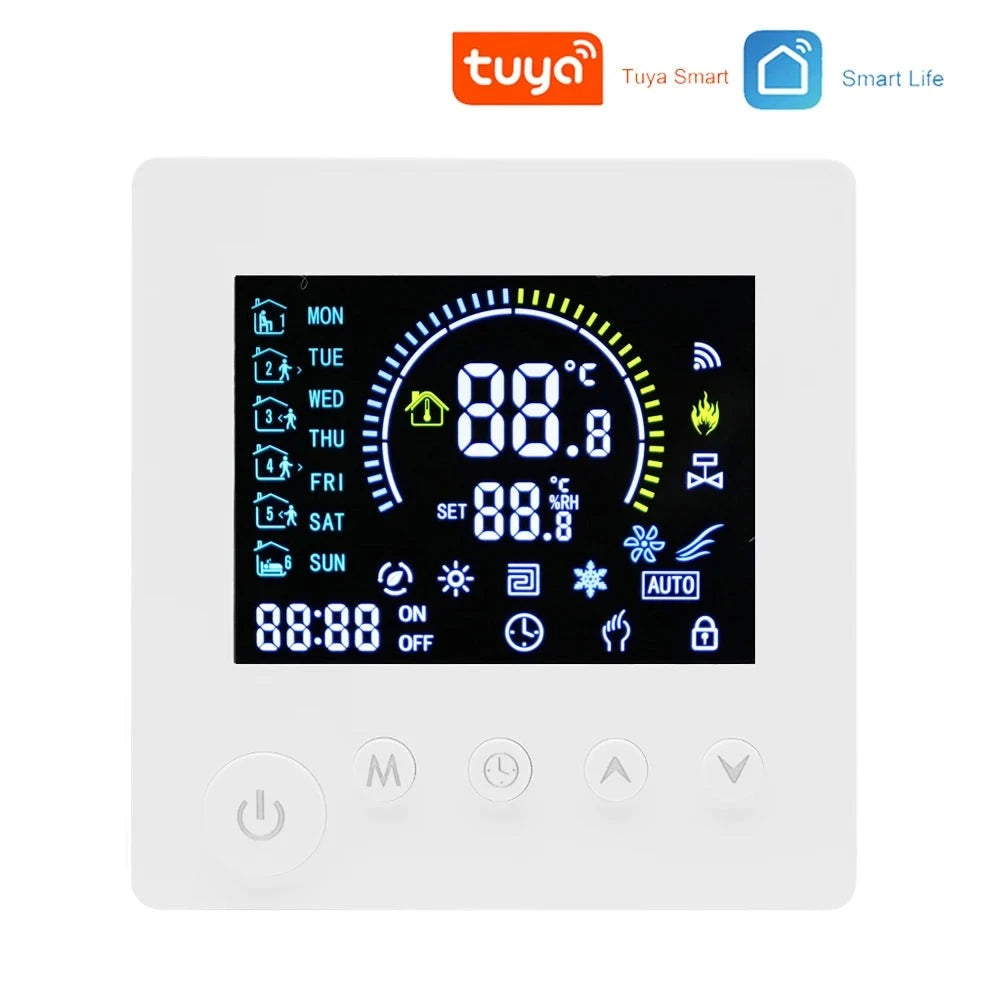

TUYA WiFi Thermostat Temperature Controller Water Electric Floor Heating TRV AC90V-240V 3A 16A Digital LCD Display Wall Mounted

TUYA WiFi Thermostat Temperature Controller Water Electric Floor Heating TRV AC90V-240V 3A 16A Digital LCD Display Wall Mounted

Regular price $34.34 USD
Regular price $0.00 USD Sale price $34.34 USD
Sale Sold out
Shipping calculated at checkout.
Color

Efficiently and remotely control the temperature of your water or electric floor heating with the TUYA WiFi Thermostat. With a wide range of AC voltage compatibility and a high current capacity, this thermostat is designed for optimal performance and convenience. Its clear LCD display and wall-mounted design make it easy to use and integrate into any home.

SPECIFICATIONS

  • Temperature Sensor: NTC
  • Temperature Accuracy: ±1℃
  • Display: LCD
  • Working Environment: -5~50℃
  • Power Consumption: <1W
  • Temperature Setting: 5~60℃
  • Display Range: 0~50℃
  • Input Voltage: AC 90-240V

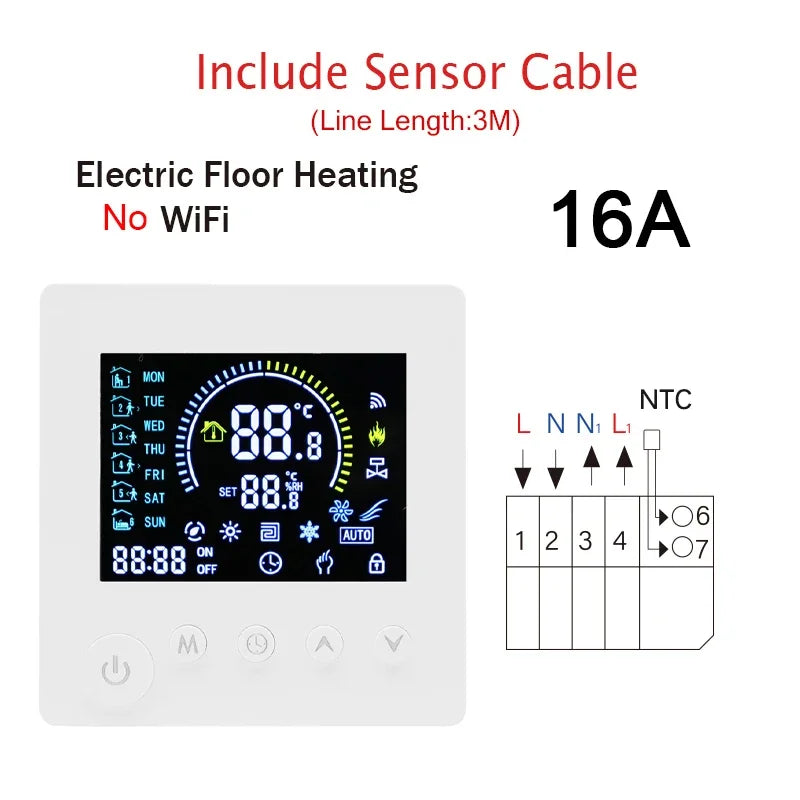

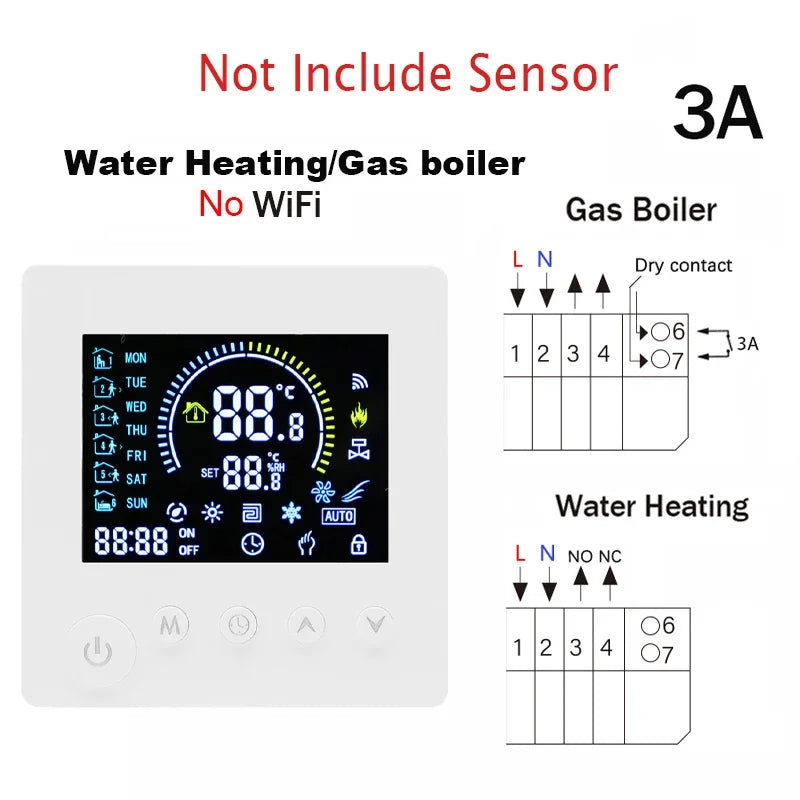

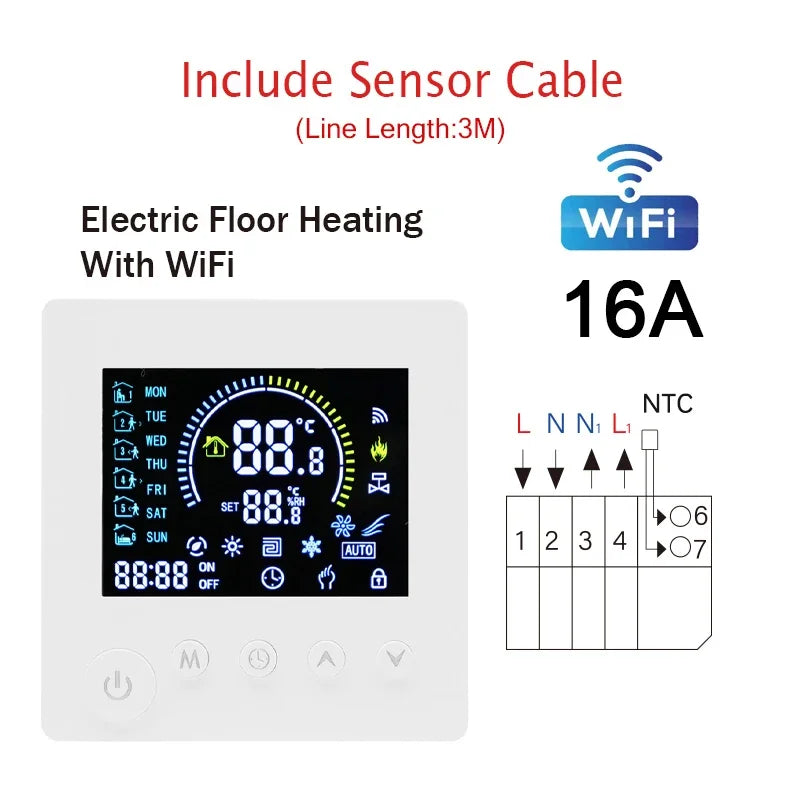

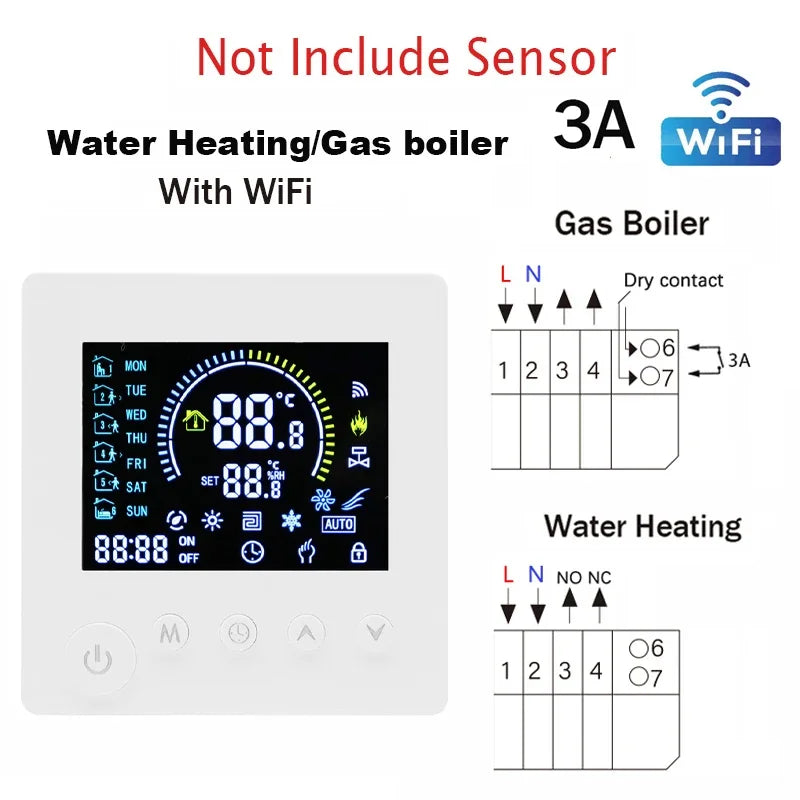

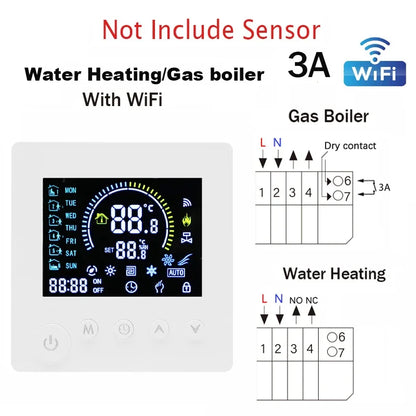

  • Load Current: Plumbing 3A(resistive),electric heating 16A 20A
  • Brand Name: NoEnName_Null
  • Model Number: K1MH16A-WiFi



Specification

  • Material:Anti-flammable PC
  • Voltage:AC 230V,50/60Hz

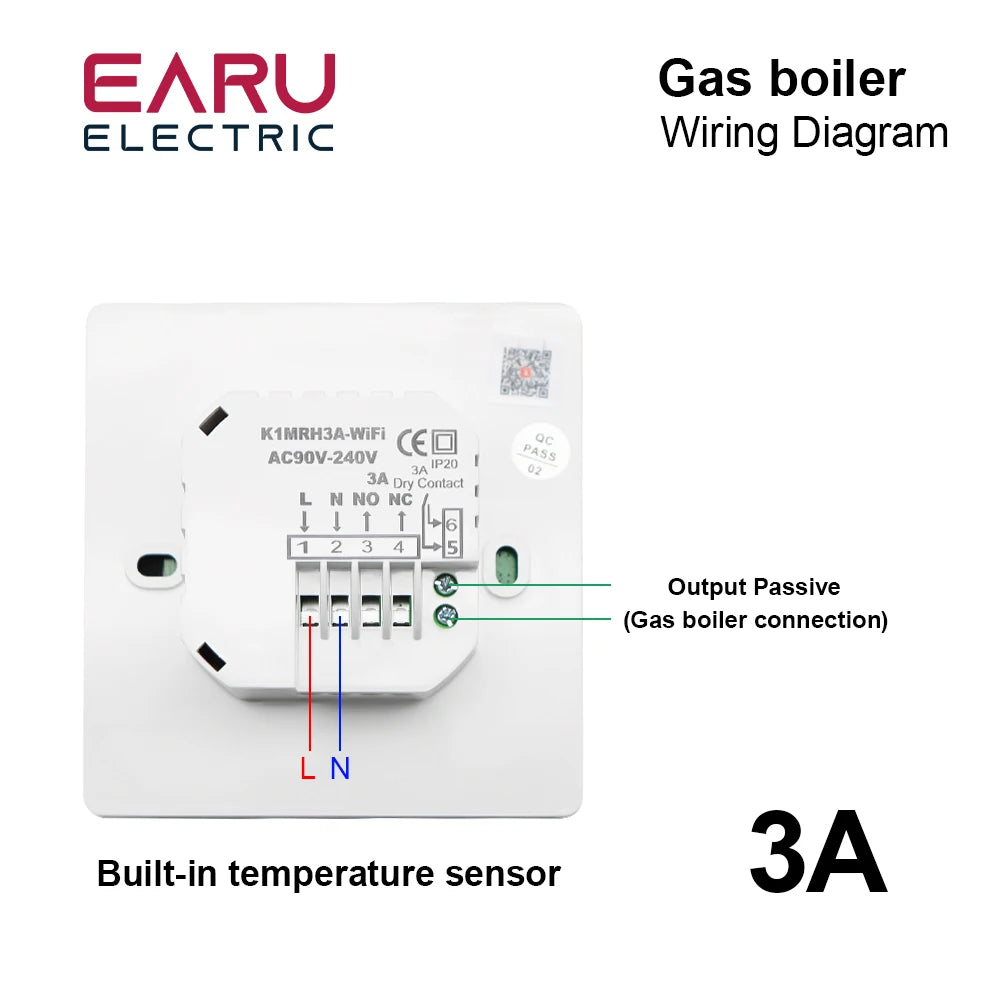

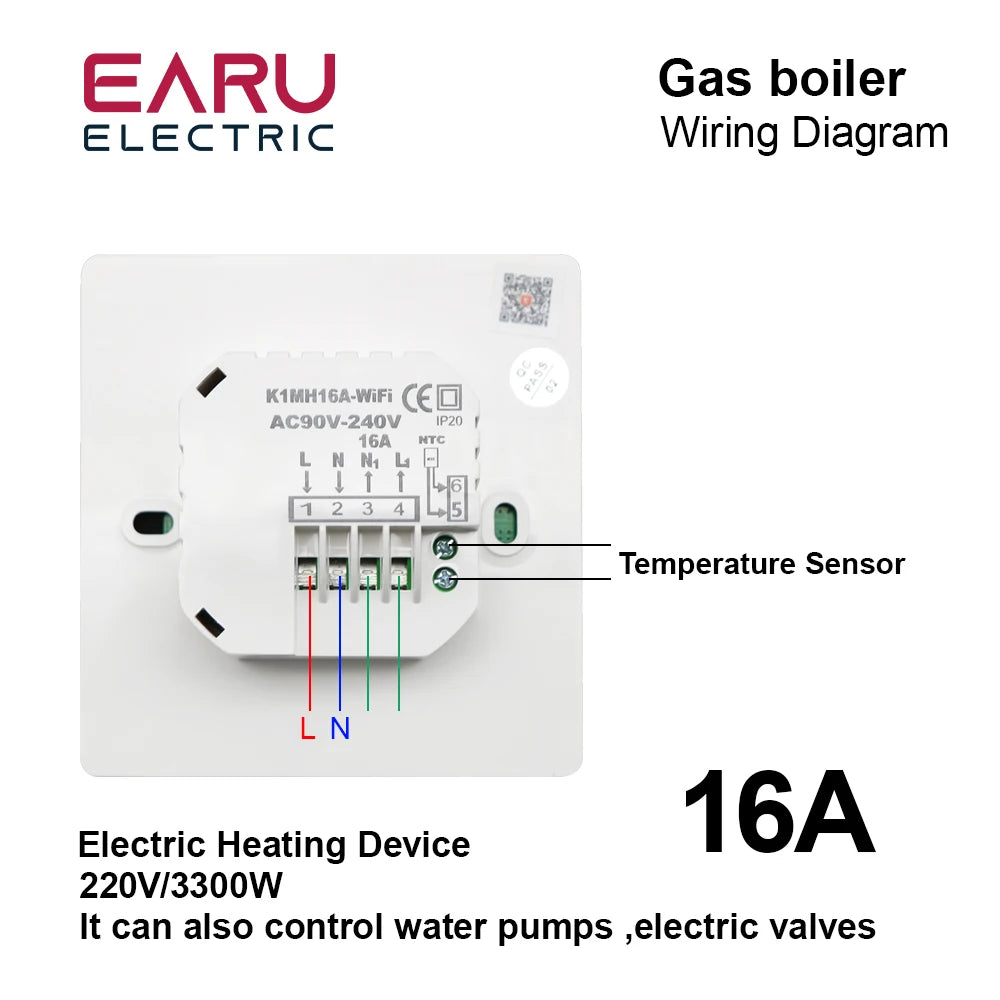

  • Max. Current Load: 3A/16A
  • Temperature Accuracy: ±1℃
  • Temperature Setting: 0-80℃

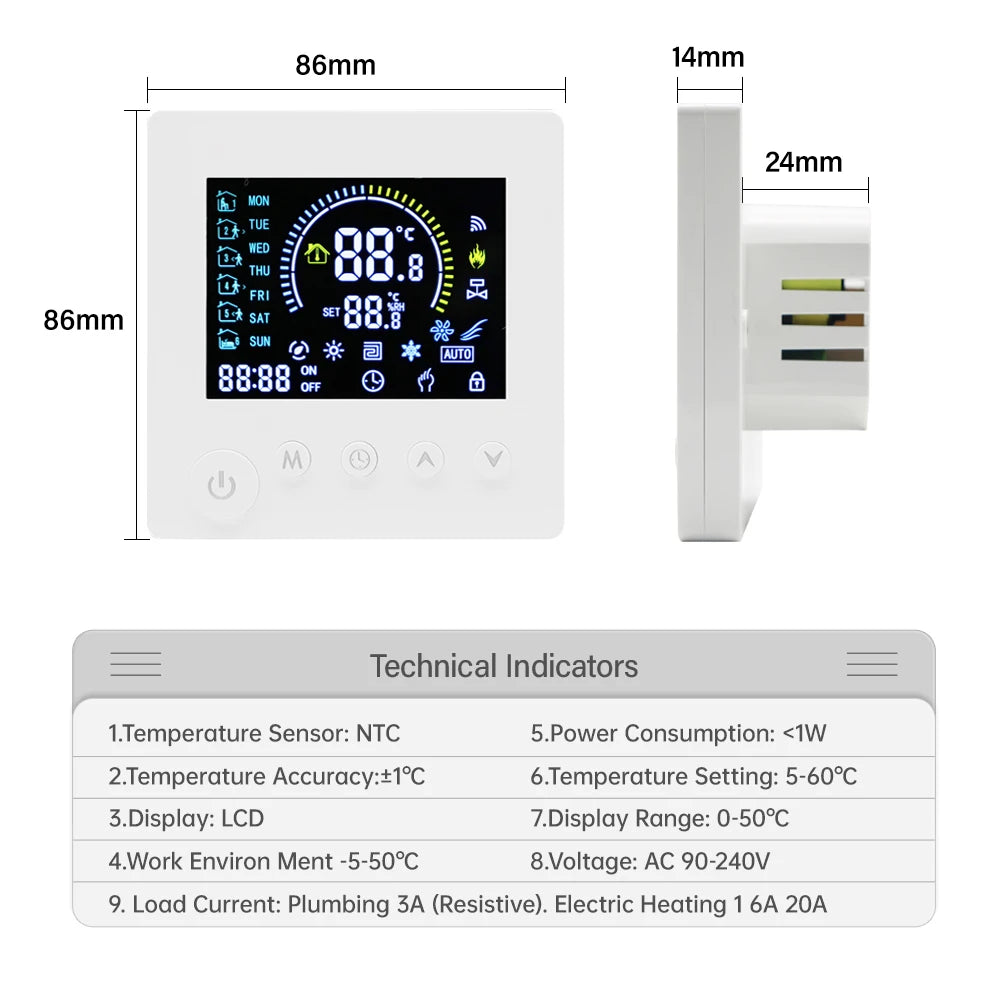

  • Item Size: 86 * 86 *mm/ 3.4 * 3.4in
  • Power Consumption:<1W
  • Temperature Sensor:NTC

User Operation

  • Power on/off: Press  key to turn on/off the thermostat
  • Press M key to switch between manual and automatic modes.
  • In automatic mode, press �� key or �� key to enter automatic temporary mode, which only runs for several minutes.
  • Press�� key to enter the clock setting, and press ����keys to adjust the value of each parameter.
  • Note: WiFI model will automatically obtain the Internet time.
  • The child lock is off by default at the factory. If you want to use this function, you need to enter the advanced option to enable the child         lock function. Long press  button for 5 seconds to temporarily turn off it.
  • Mode Description
  • 1. +floor heating manual mode
  • 2.��+ floor heating automatic mode

Period Programming Instructions

In the power-off state, long press key M+�� key, then press M key to switch options, press �� key or�� key to adjust the parameters, and press key to exit with saving.

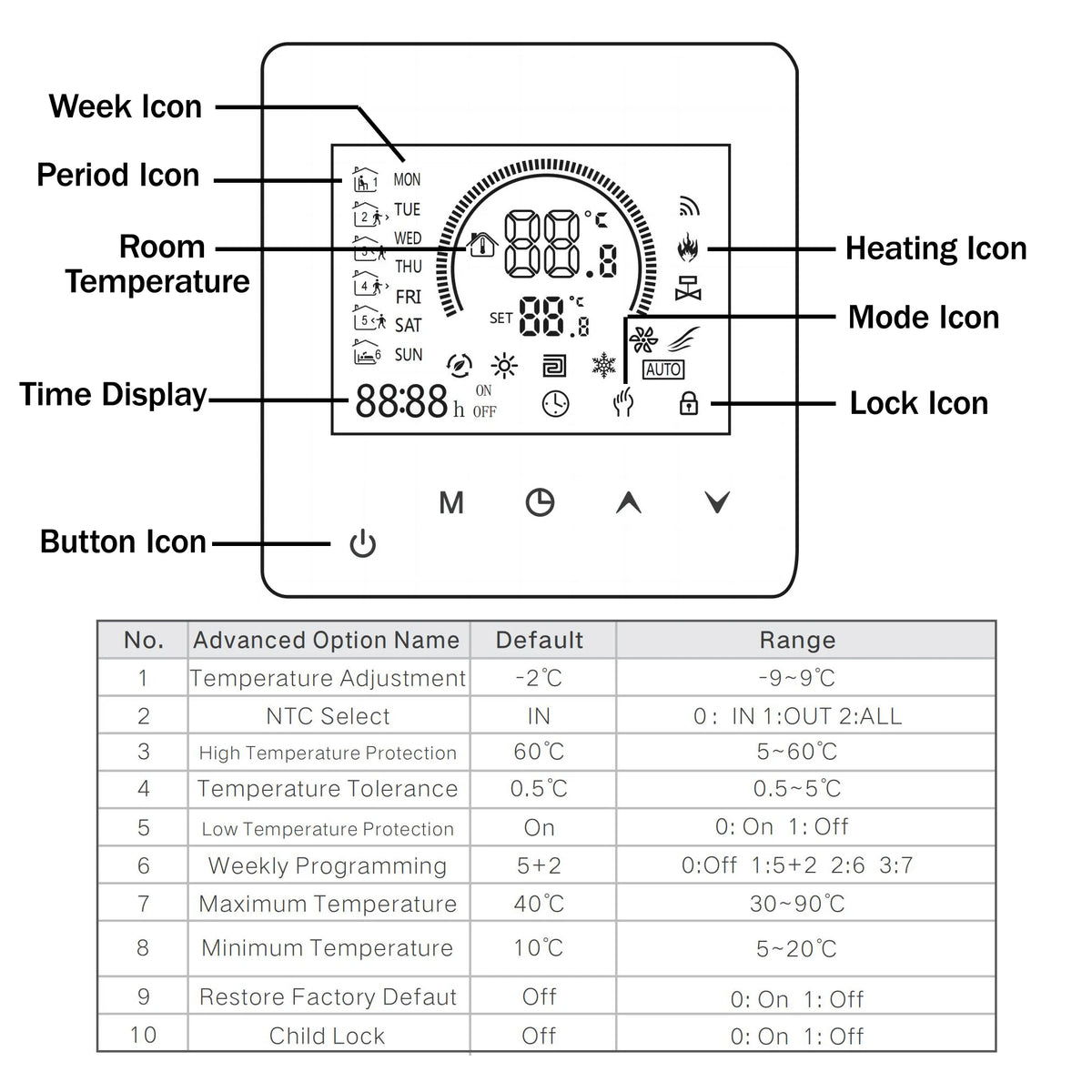

Advanced Option Settings

  • In the power-off state, press M key and�� key simultaneously for 5 seconds to enter advanced option setting.
  • Press M key to enter the next option, press��key and�� key to adjust, and press key to exit advanced option.
