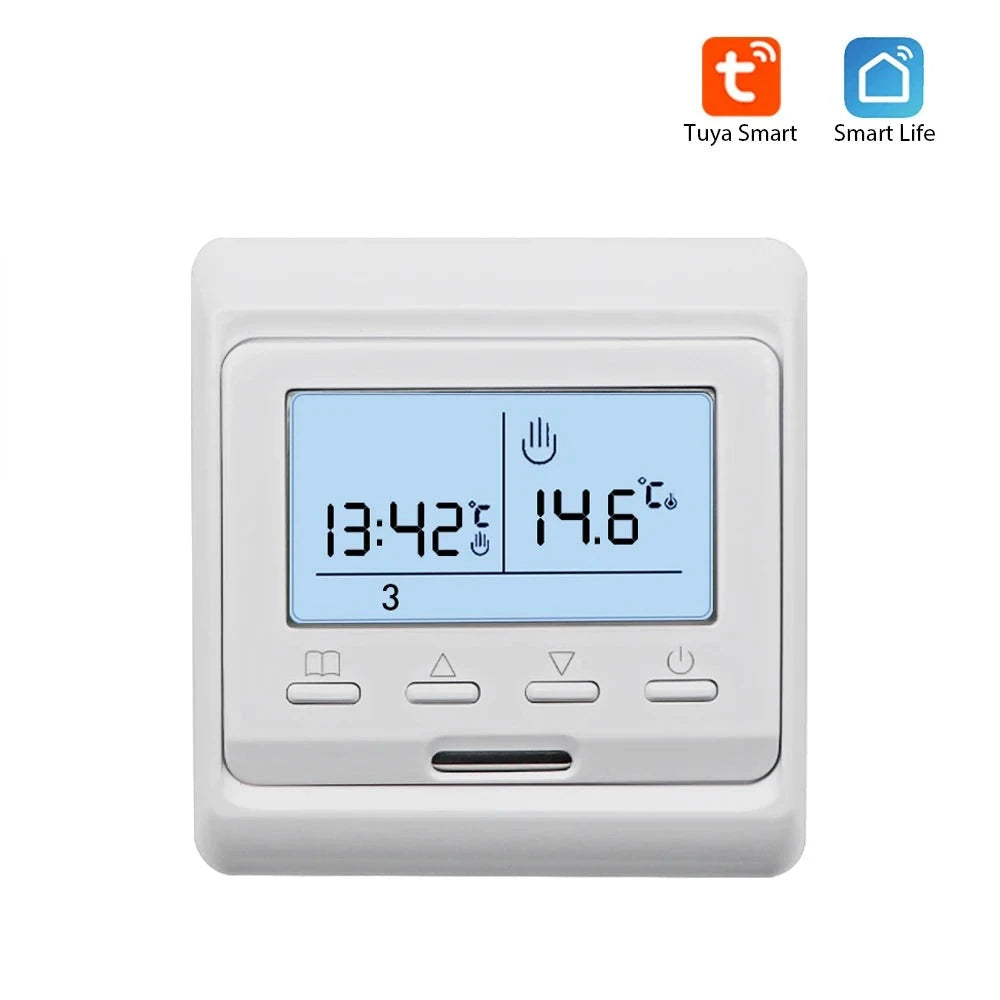

WiFi Smart Thermostat Temperature Controller Electric Floor Heating TRV Water Gas Boiler Remote Control Tuya Alexa Google Home

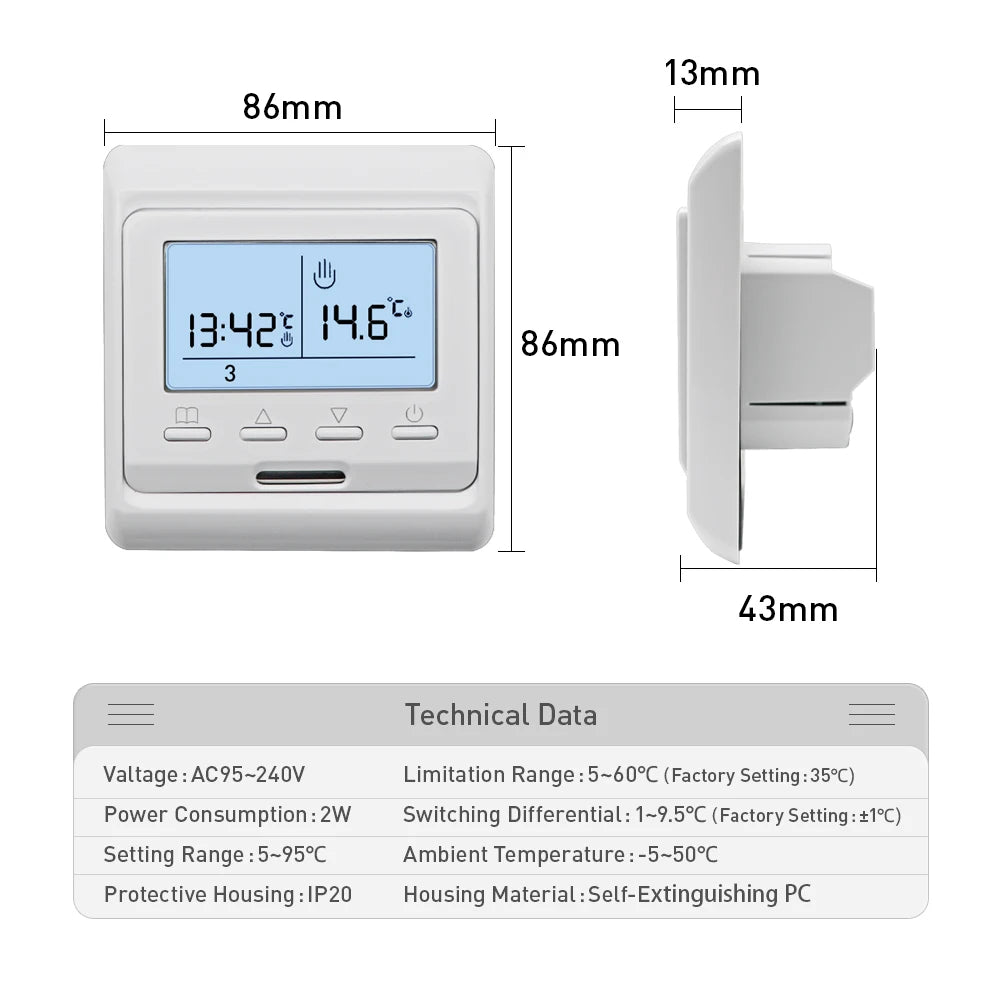

Specification

• Type: WiFi Thermostat Temperature Controller

• Material:Anti-flammable PC

• Voltage:AC 95~240V, 50/60Hz
• Power consumption :2w

• Max. Current Load: 16A

• Temperature Setting: 5~95℃
• Limitation range:5-60℃
• Switching differential:1~9.5℃
• Ambient temperature:-5℃ ~ 50℃
• Protective housing:IP20

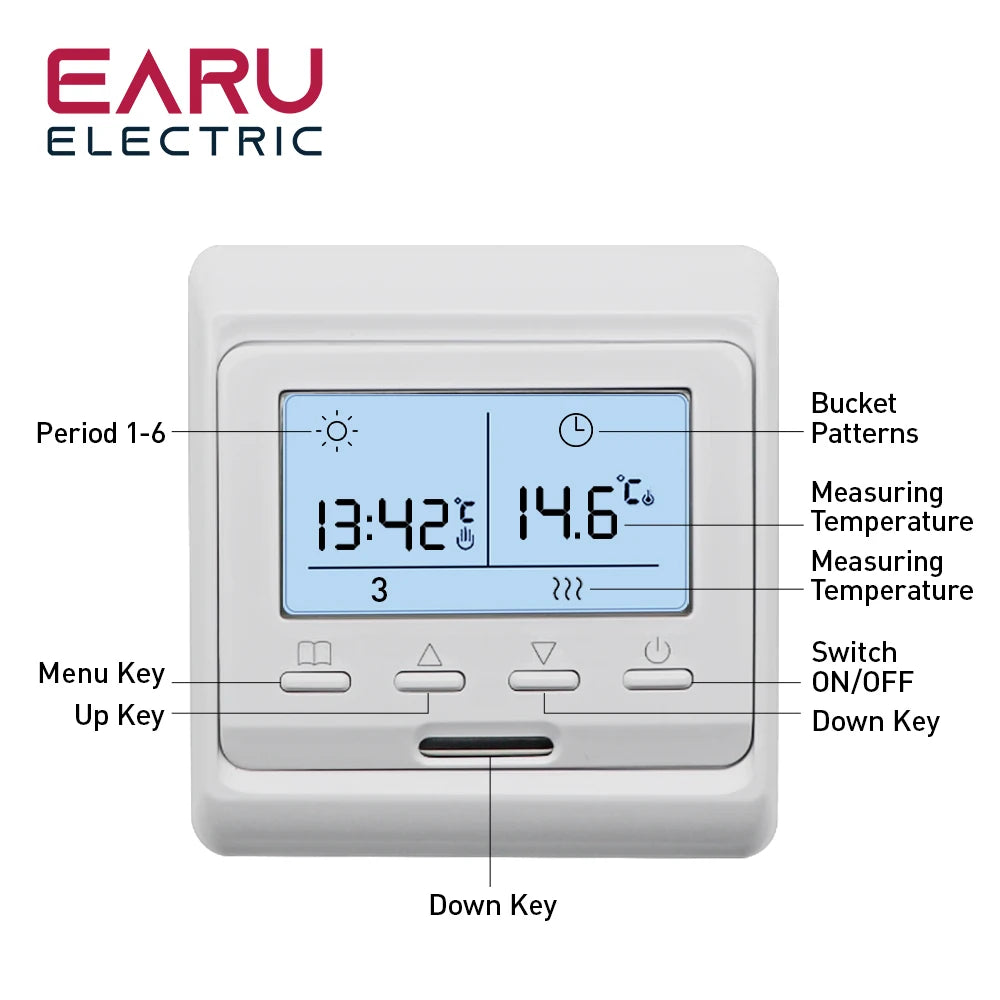

User Operation

1.Press"⊙"button,power on/poweroff.

2.In time slot mode,press"▲"or"▼"button will enter temporary mode。

3.Long press "■"and"▲"button 5s will enter time setting mode.press"■"button toggle setting options,press"▲"or"▼"to adjust value.

4.Hold on "■" button 5s will enter manual mode or time slot .

5.Locking and unlocking-press the"▲"and"▼"at the same time.

6.Networking mode：Hold on "▲" button 5s until WiFi signal flashing.

• Temperature compensation
• Sensor selection
• Limit temperature temperature value setting
• Temperature difference start
• Antifreeze function
• Day off selection and exit week programming
• Primary and secondary reverse selection
• Passive output delay setting
• Set temperature upper limit
• Restore original mode

Packing List

• 1*Thermostat

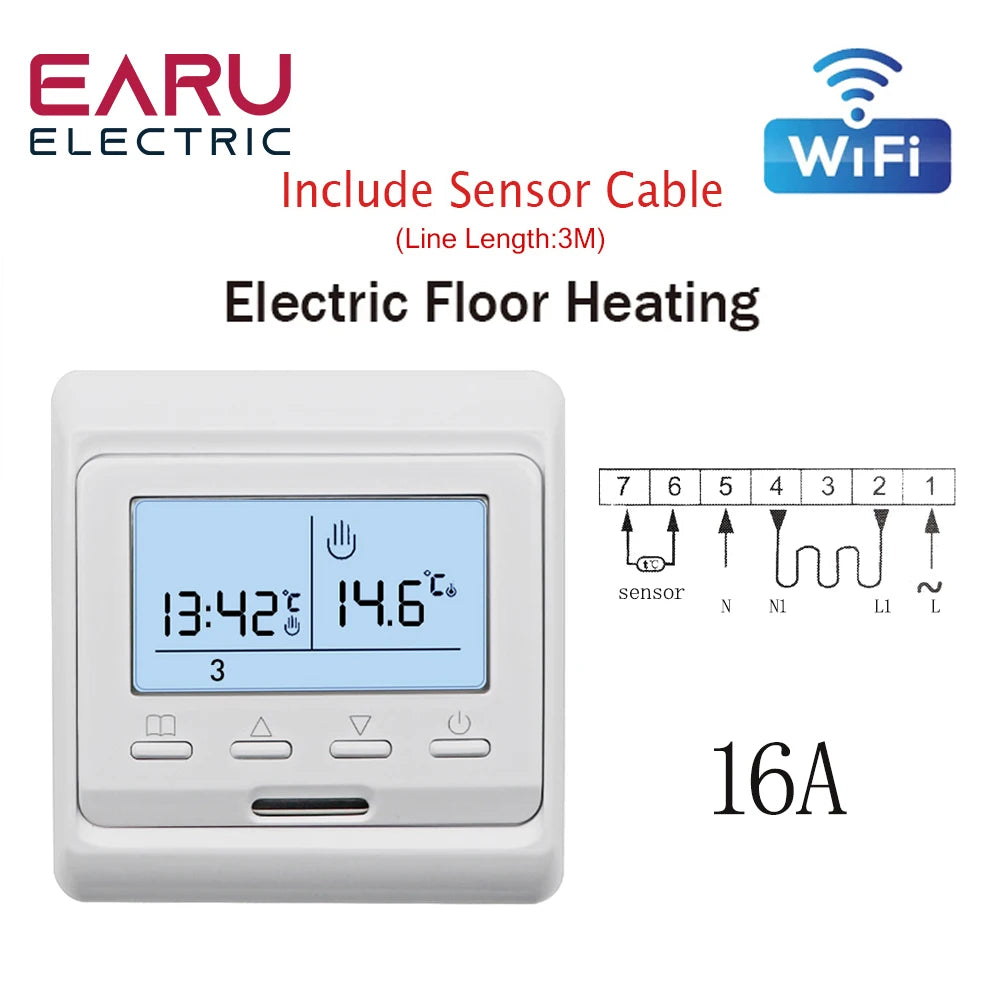

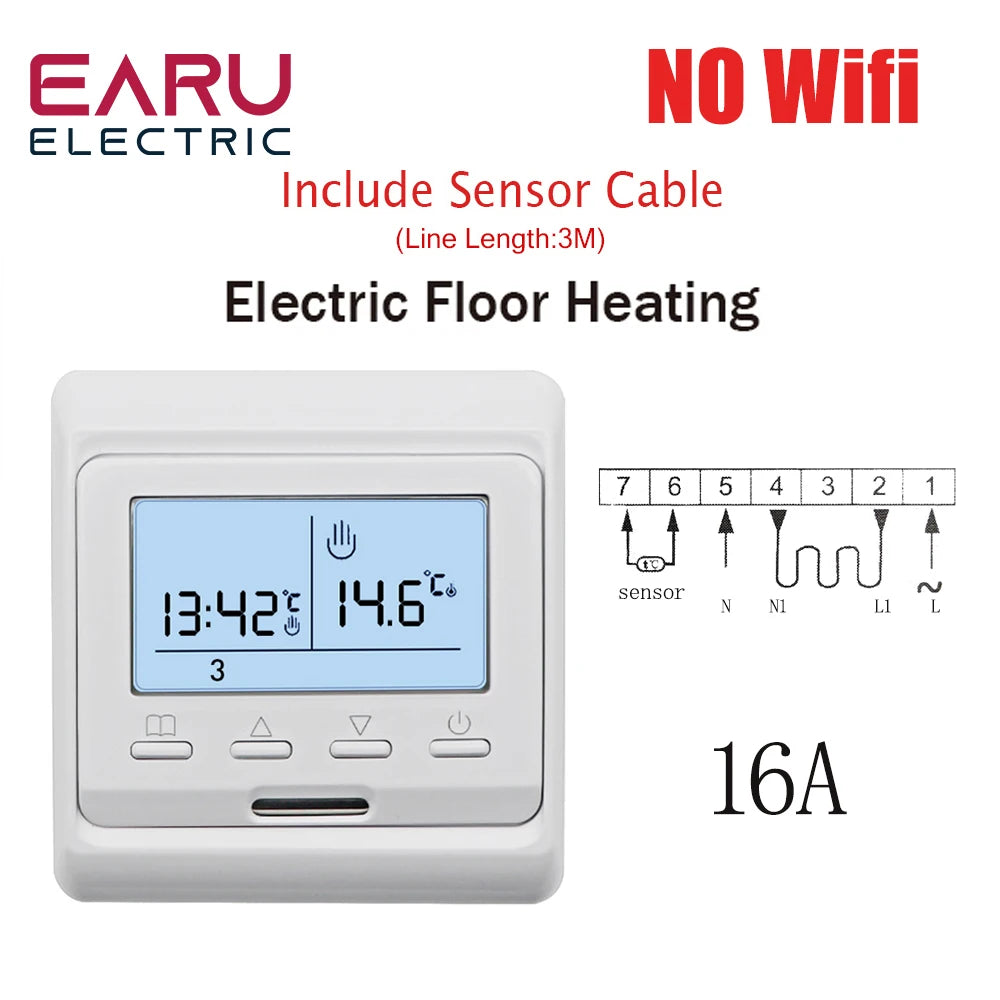

• 1*Sensor probe(only electric floor heating include sensor cable)
• Screws
• Manual
