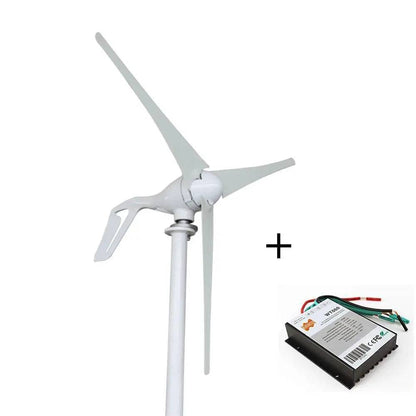

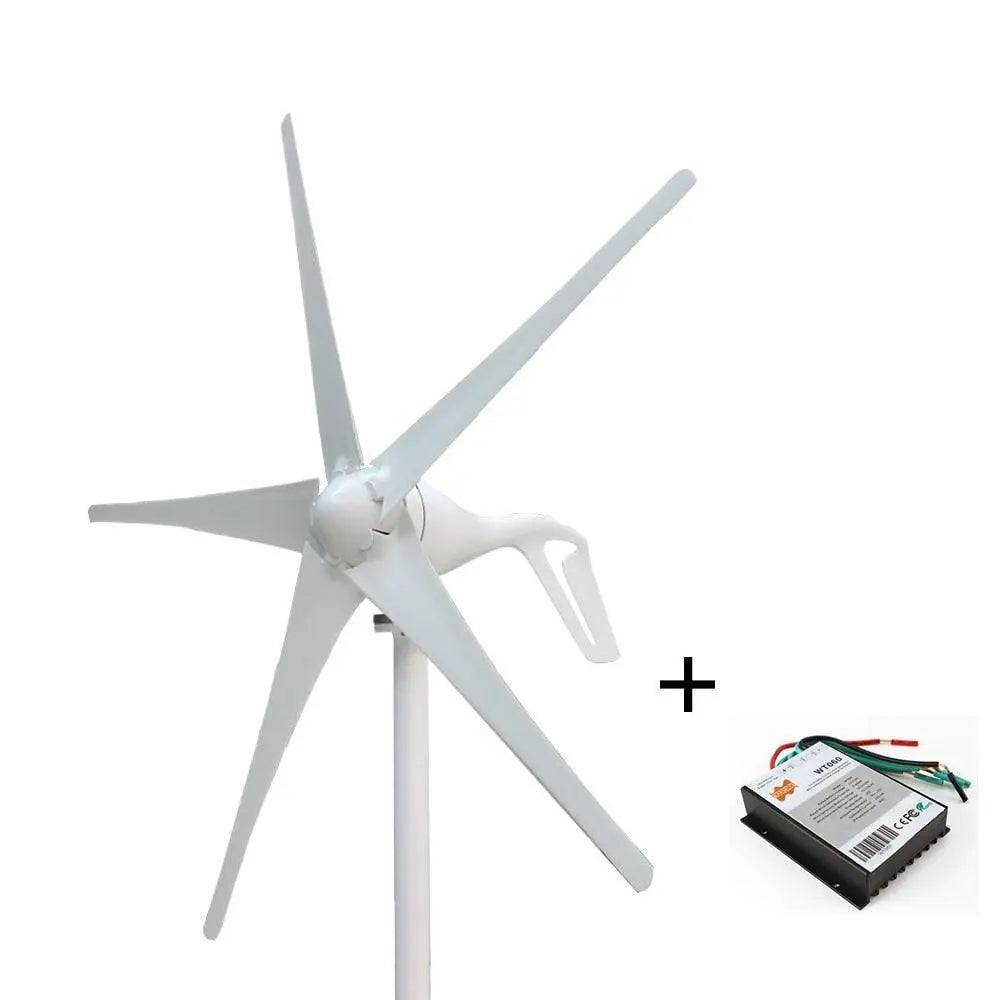

Wind Turbine Generator 400/600W small windmill 12/24V dc charge controller

Wind Turbine Generator 400/600W small windmill 12/24V dc charge controller

Regular price $403.25 USD
Regular price $0.00 USD Sale price $403.25 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Voltage
Color

Wind Turbine 400W 0-600W generator small windmill 12V or 24Vdc charge controller as gift

Specification

  • is_customized: Yes
  • Type: Wind Power Generator
  • Shaft Material: Stainless steel
  • Origin: CN(Origin)
  • Mounting Base: Without Mounting Base
  • Model Number: S3-400
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Brand Name: MARS ROCK
Introduction

Wind turbine generator can transfer wind power to electrity. Wind is an important renewable resources. To meet most of customers' requirements, we promote an economy wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed. 20-year long life-span wind power generator is deserved you to own it.

Wind Turbine Features

1. Starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.

2. Being installed by human design and easy for installation, maintenance and repair.

3. Being molded through precise injection with new process, together with the optimized design of aerodynamic contour and structure, our wind turbine blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design, efficiently decrease resistance torque of the generators. Meanwhile, it makes the wind turbines match the generators quite well and increase the reliability of their operation.



Model

S2-100

S2-200

S2-300

S2-400

Rated power

100W

200W

300W

400W

Maximum power

130W

220W

310W

410W

Rated voltage

12/24V

12/24V

12/24V

12/24V

Start-up wind speed

2.0m/s

2.0m/s

2.0m/s

2.0m/s

Rated wind speed

10m/s

11.5m/s

13m/s

13m/s

Survival wind speed

55m/s

55m/s

50m/s

50m/s

Top net weight

5.0kg

5.2kg

5.6kg

5.8kg

Wheel diameter

1.15m

1.2m

1.3m

1.3m

Number of blades

3 or 5

Blades material

nylon fiber

Generator

Permanent magnet synchronous generator with three-phase alternating current

Magnet

NdFeB

Generator case

Die-casting aluminum

Control system

Electromagnetic/wind turbine hemi lateral

Speed regulation

Automatically adjust windward direction

Working temperature

 - 40°C - + 80°C

Design life

20 Years

Gross weight (3 blades)

8.5kg

8.8kg

9kg

9.5kg

Gross weight (5 blades)

9kg

9.3kg

9.5kg

10kg

Package dimension

70X30X20CM

70X30X20CM

70X30X20CM

70X30X20CM

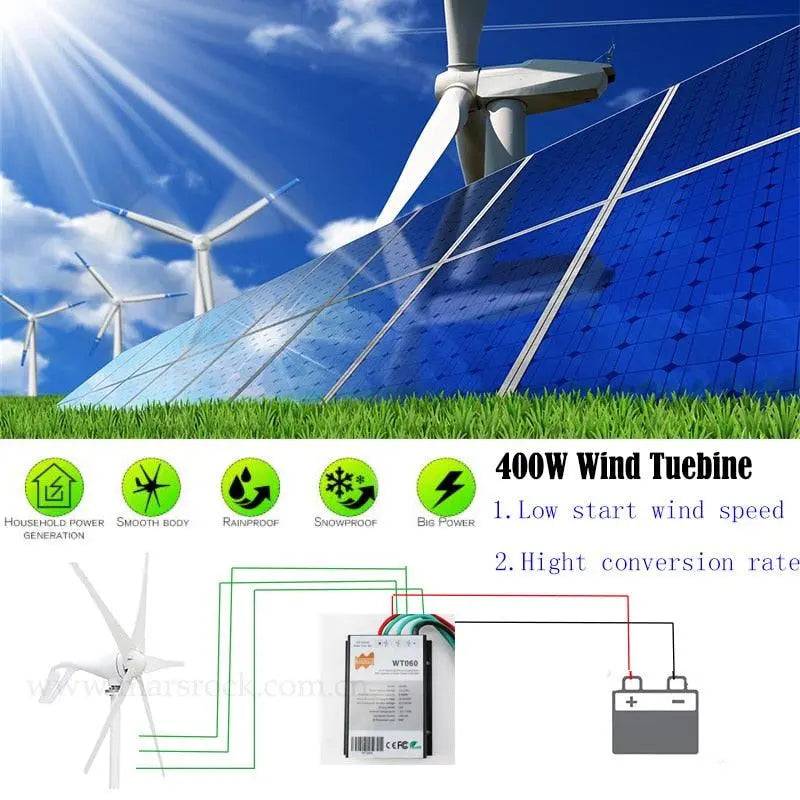

Connection Diagrames
