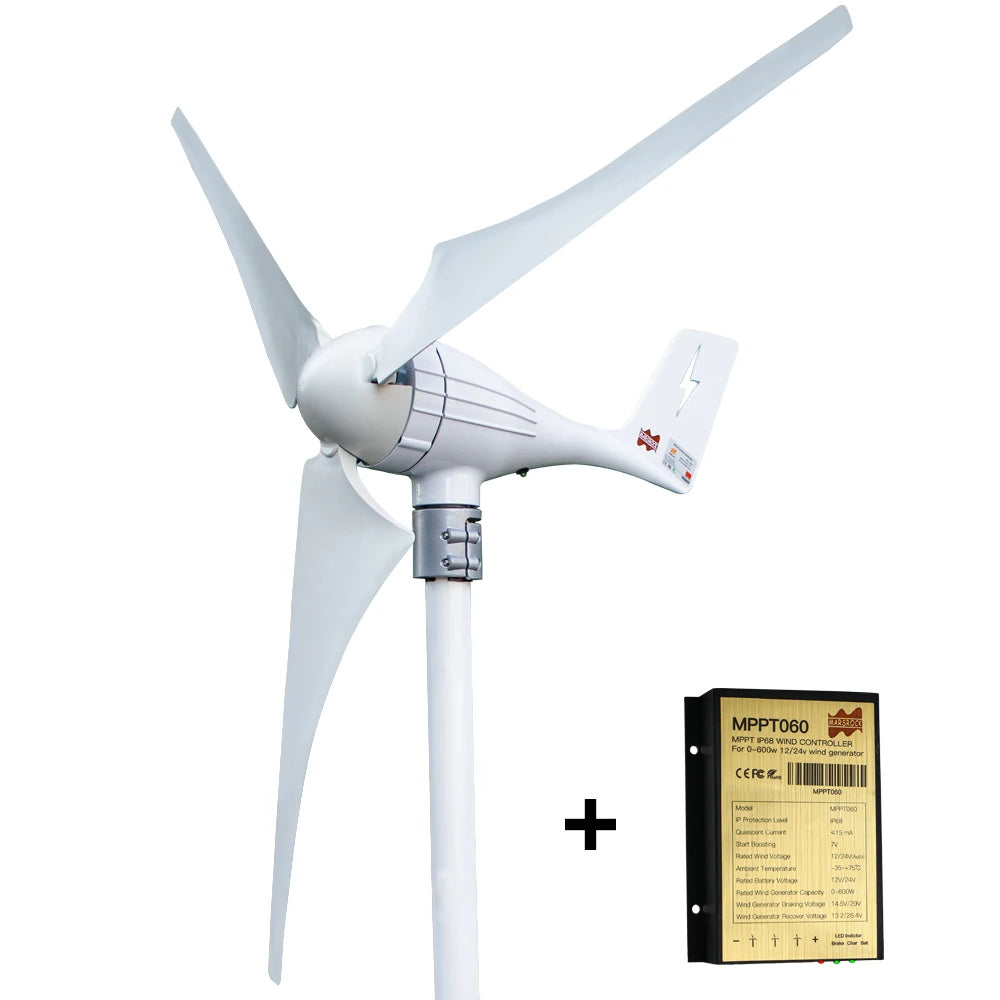

Wind Turbine High Efficient 600W Generator 12V 24V Home Small Windmill LED Indicate Light Free MPPT Charge Controller
Wind Turbine High Efficient 600W Generator 12V 24V Home Small Windmill LED Indicate Light Free MPPT Charge Controller
SPECIFICATIONS
is_customized: Yes
Type: Wind Power Generator
Start-up the lowest Speed: 1.8m/s
Shaft Material: Stainless steel
Rated voltage: 12V or 24V
Rated speed: 10m/s
Rated power: 600W
Origin: CN(Origin)
Mounting Base: Without Mounting Base
Model Number: S4 600W Wind Generator

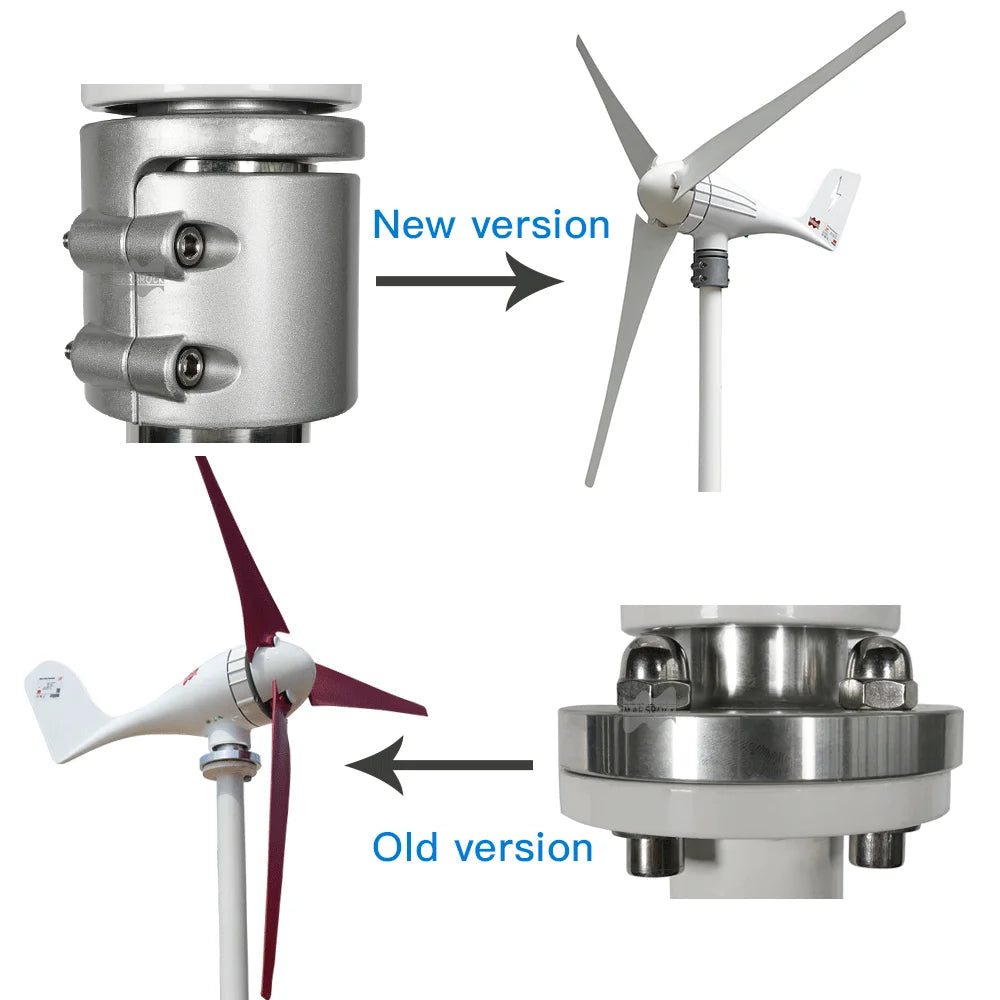

Connector: Hoop(default), Flange to connect with tower pole
Certification: CE, ROHS, FCC, ISO, BIWEI
Brand Name: MARS ROCK
Blades Length: 65cm or 63cm
High Efficient 600W Wind Turbine Generator 12V 24V Home Small Windmill With LED Indicate Light Free600W MPPT Charge Controller Ship From Spain
1.About Wind Generator
Wind turbine generator can transfer wind power to electricity. Wind is an important renewable resources. To meet most of customers' requirements, we promote an economy wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed. 20-year long life-span wind power generator is deserved you to own it.

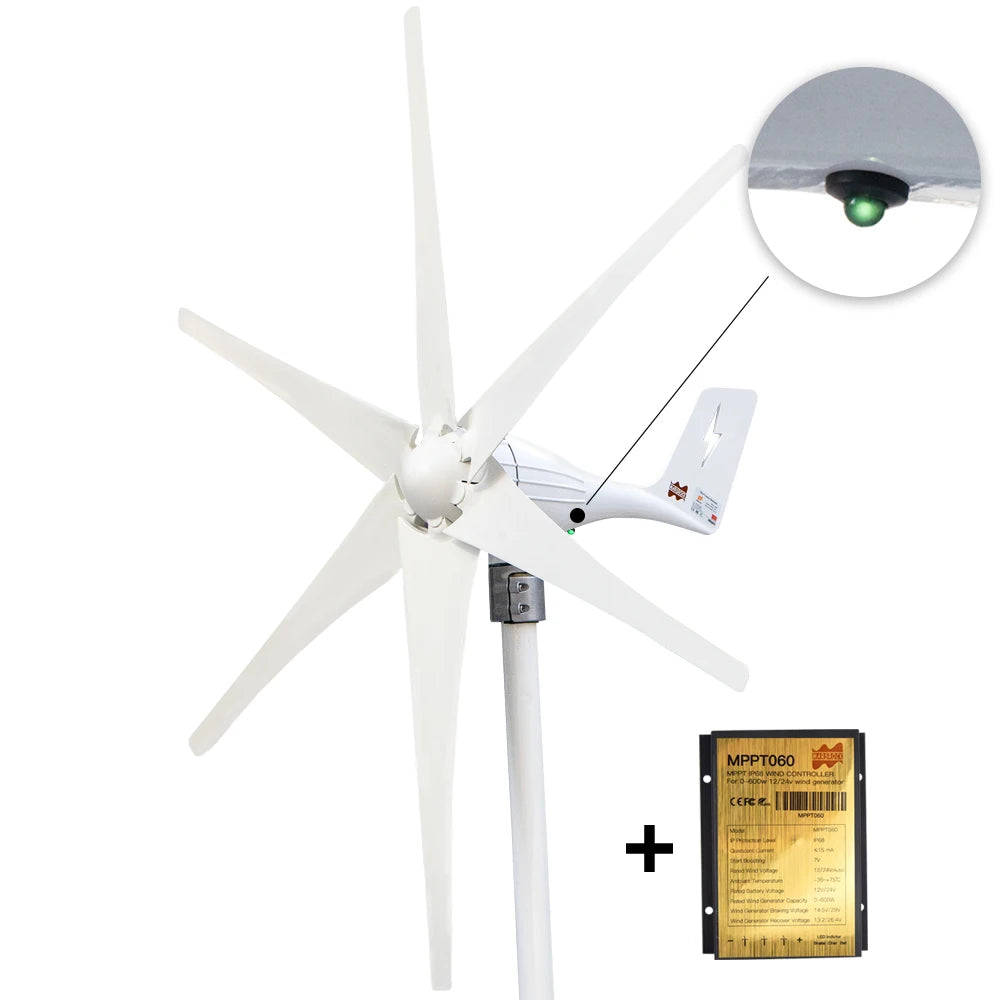

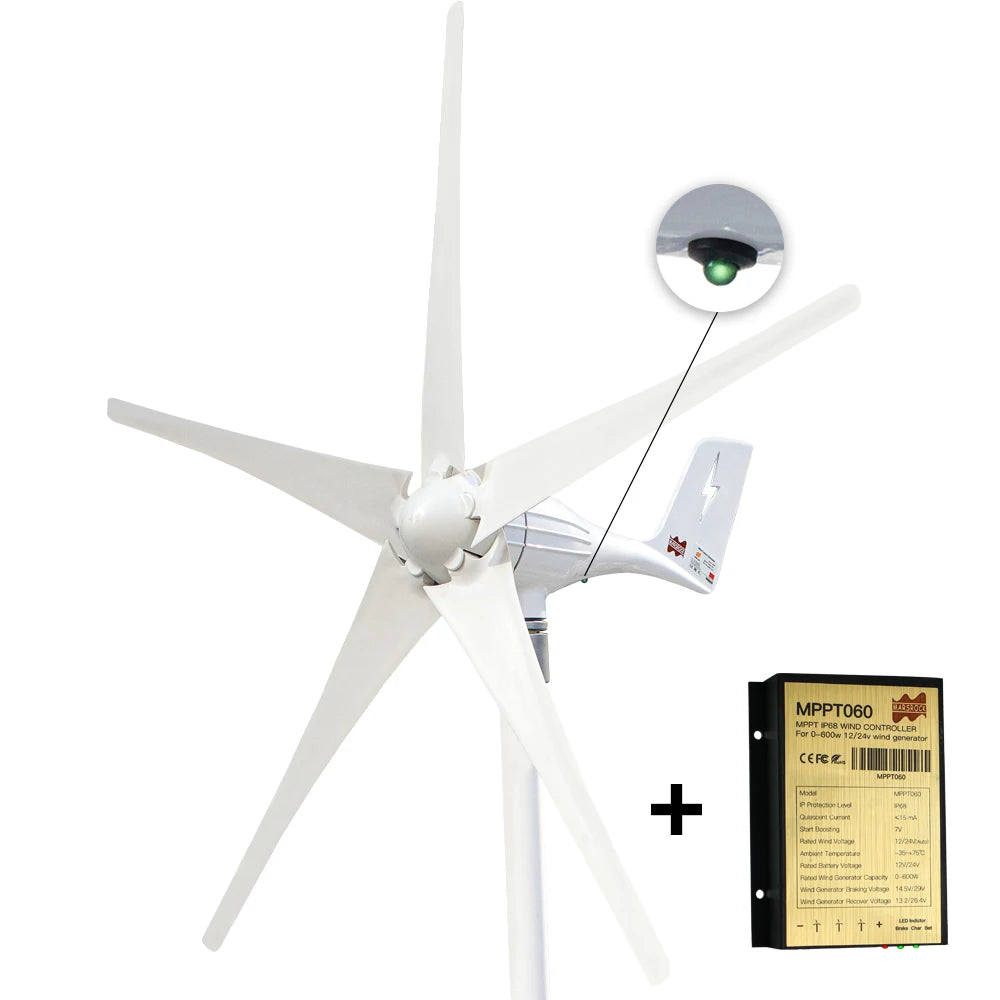

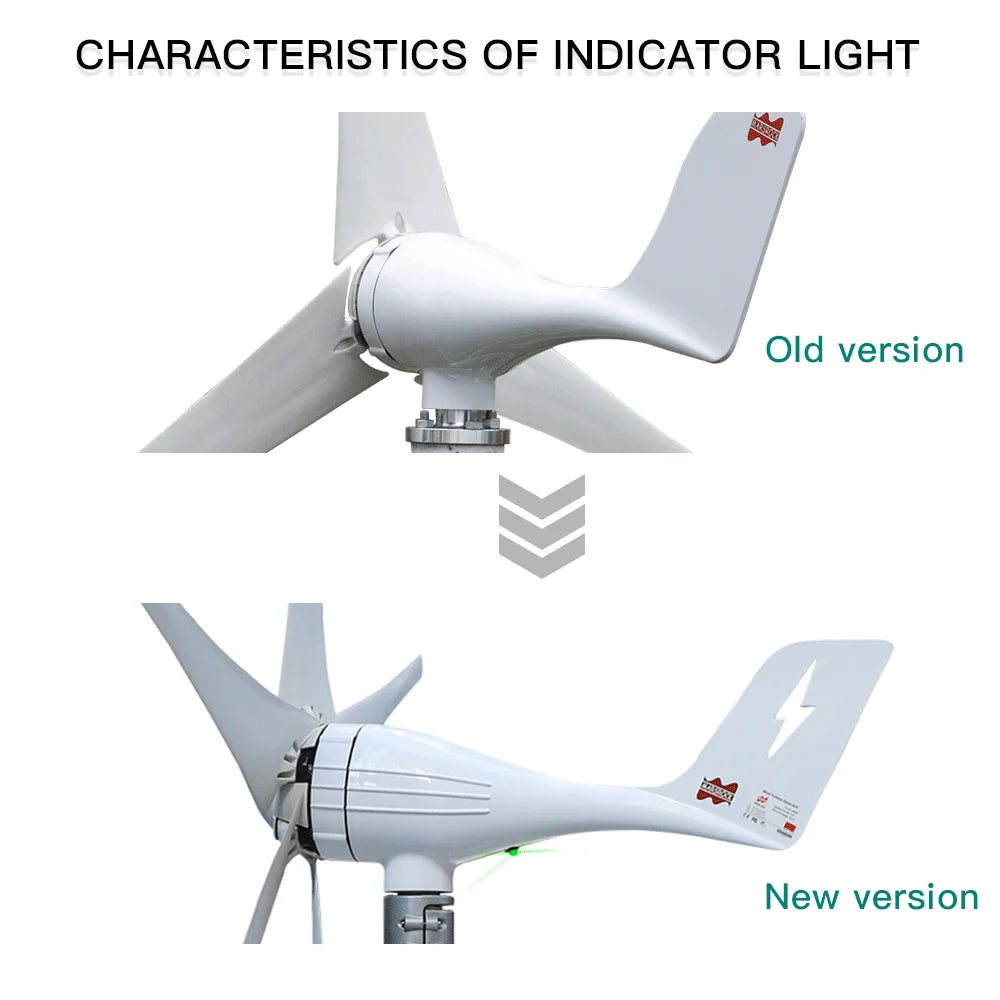

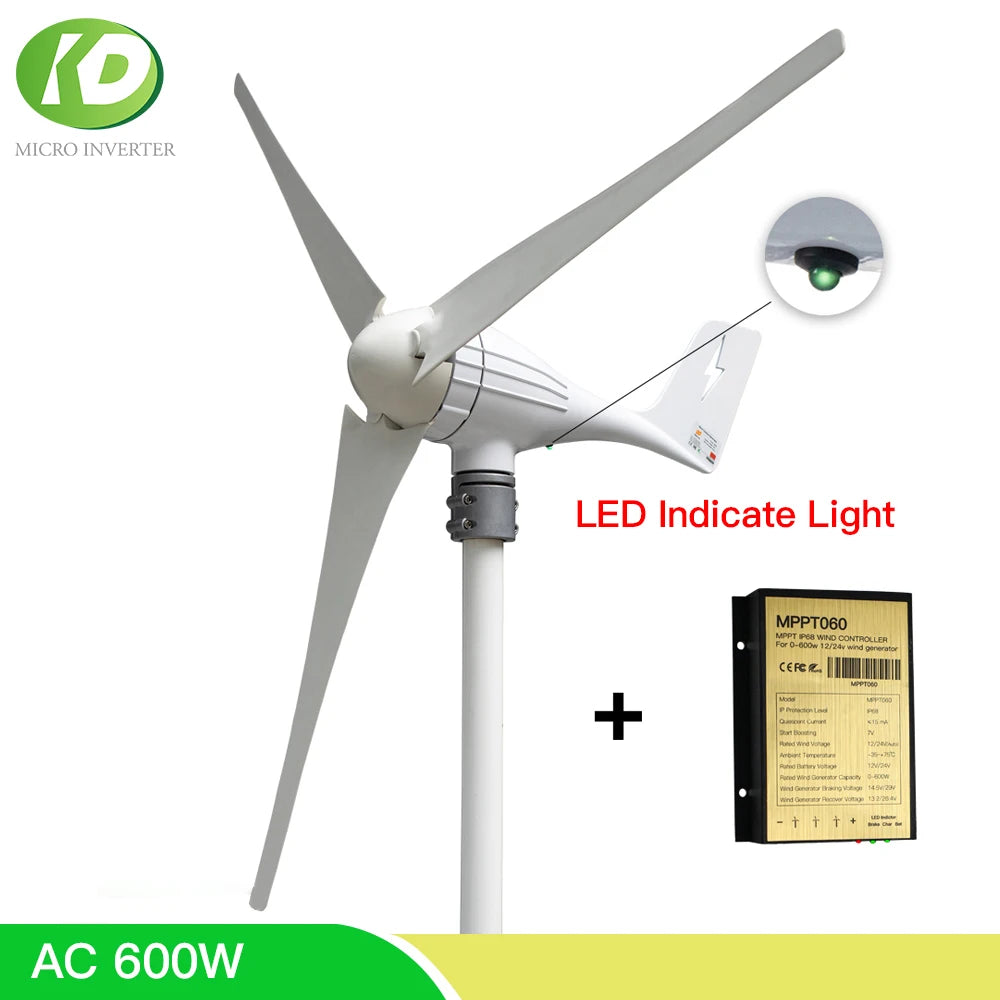

2.About Indicator light
The built-in charging LED indicator can instantly sense the magnetic field current generated by the rotation of the generator shaft. When the wind turbine starts to rotate, the green charging indicator light keeps flashing. When the current is continuously increasing, there can be a significant current output, The green light will get brighter and brighter. Through the change of the charging indicator, you can know whether the generator can work correctly and the strength of the current output. Especially in the dark, the charging indicator can also dress up your home like a firefly, which is visible from a distance.
The charging indicator has a small power consumption, and the output circuit is designed as a whole, with good waterproof performance and long working.
600W Wind Generator Parameter
Power
Rated power
600W
600W
600W
600W
Maximum power
610W
610W
610W
610W
Rated voltage
12/24V
12/24V
12/24V
12/24V
SKU
3S4-600-D
5S4-600-D
3S4-600
5S4-600

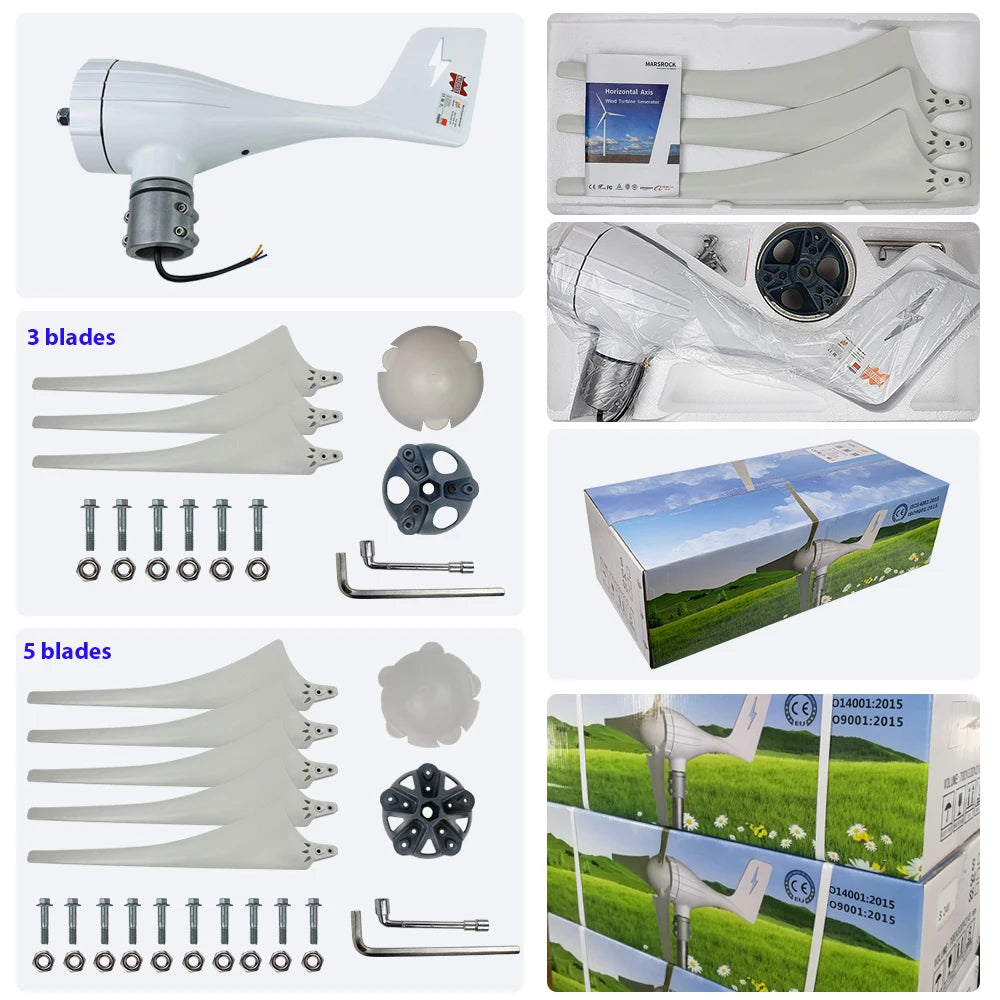

Blades
Blades Length
63cm/25inch
65cm/26inch
Wheel Diameter
135cm/53inch
140cm/55inch

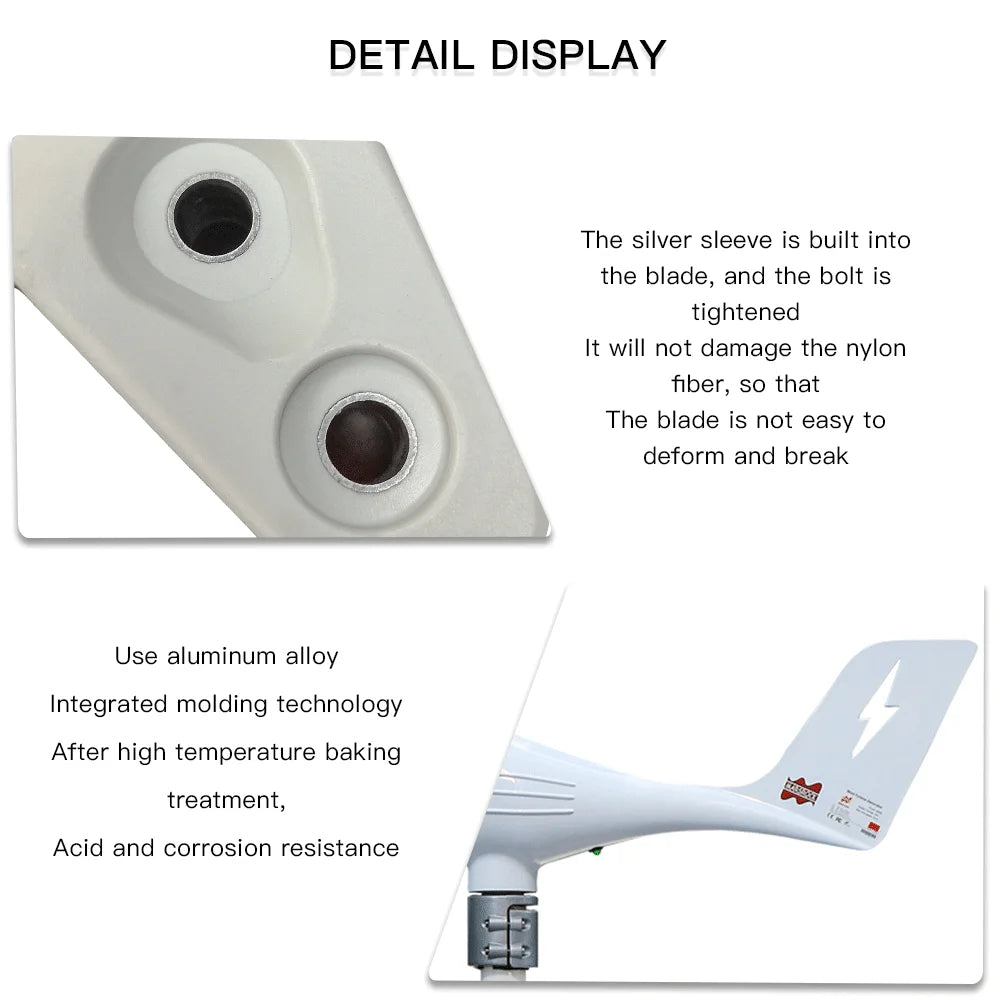

Blades material
High-strength nano-fiber glass fiber
reinforced plastic material design life 15 years
Optional colors
White(default)/Black/Blue/Red/Green/Orange/Yellow/mixed colors
Shape
Delta wing
Ordinary
Blades QTY
3 PCS
5 PCS
3 PCS
5 PCS
Wind
Start-up
2m/s
1.8m/s
2m/s
1.8m/s
4.5mph
4mph
4.5m/s
4m/s
Rated speed
11m/s
10m/s
11m/s
10m/s
25mph
22mph
25mph
22mph
Survival speed
48m/s
45m/s
48m/s
45m/s
107mph
100mph
107mph
100mph
Generator
Type
3 phase permanent magnet synchronous(NdFeB) AC generator
Case
Die-casting aluminum
Control system
Electromagnet
Speed regulation
Automatically adjust windward direction
Operation
- 40°C - + 80°C

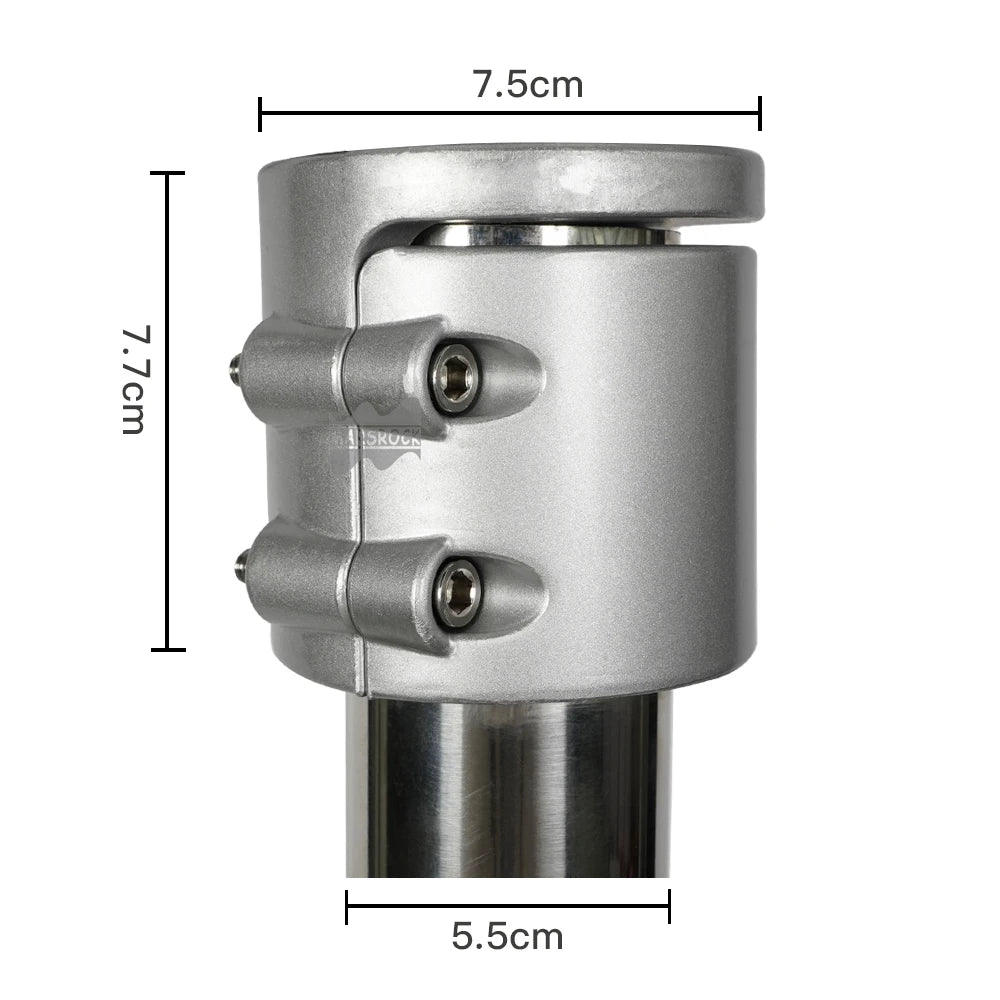

Connector
Hoop(default), Flange to connect with tower pole
Design life
20 Years
Suggest
Cables
Copper 3 core wind AC cable, waterproof and UV resistant
Tower Pole
6 meter hight with Steel cable
Others
Approved
CE, ROHS, FCC, ISO, BIWEI
SKU
3S4-600-D
5S4-600-D
3S4-600
5S4-600
G.W

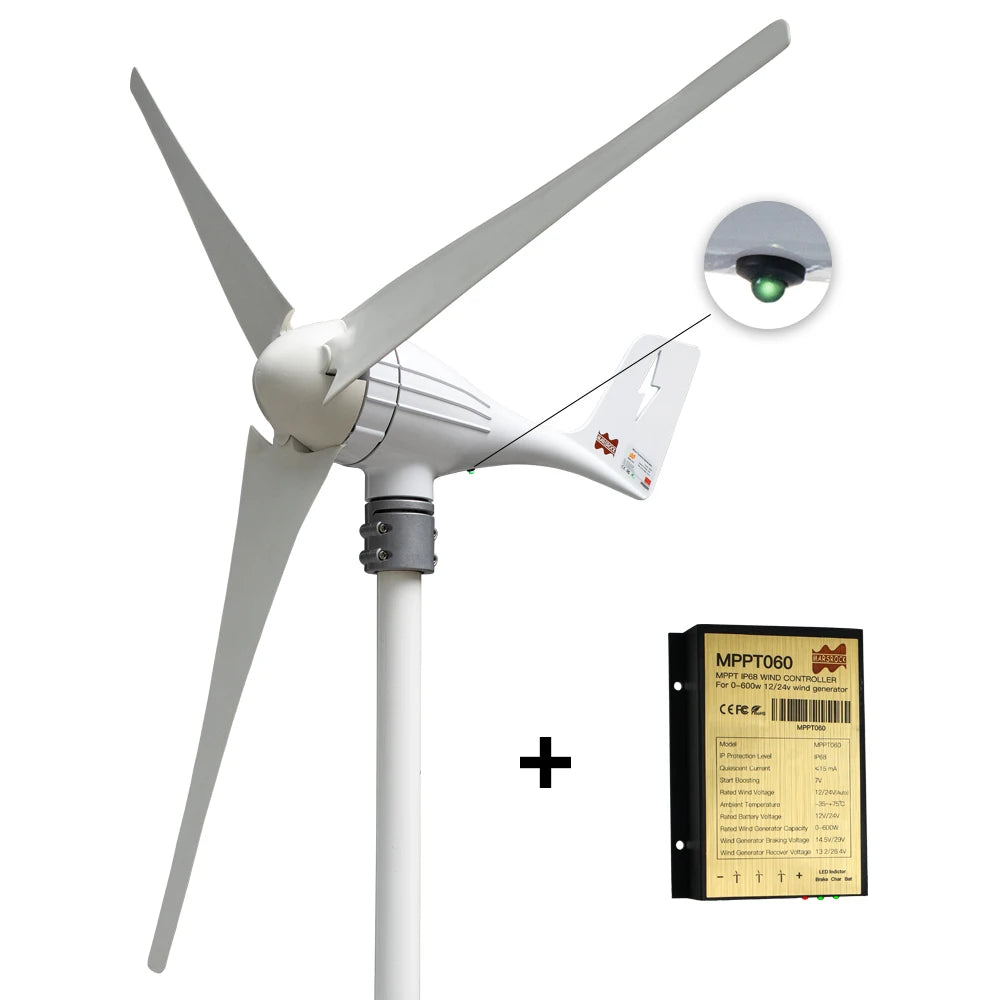

Free 600W MPPT Controller
Controller Parameter
Fit for Voltage: AC12V/24V
Maximum wind-generator power: 0-600W
Waterproof: IP68
Protection: Battery overvoltage protect,wind-generator current limit,wind-generator brake,speed protection
Indicator: LED
Capability: Mode charge
Unloading way: MPPT electrodeless and noiseless unloading
Working temperature: -35℃ +75℃/85%RH(no condensing)
Size: 95 x 65x 20mm
How to install wind generator
