Wind turbine Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery
Wind turbine Solar Inverter 3600W MPPT 100A Solar Charger 220V Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery
Trustify review stars will be displayed here!
Couldn't load pickup availability
SPECIFICATIONS
is_customized: Yes
Weight: 10KG
Wave form: Pure sine wave
Surge Power: 7000VA
Solar Charger Type: MPPT
Size: 565x380x190mm
Power factor: PF1.0
PV Array MPPT Voltage: 120VDC~450VDC
Output Type: Single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz
Output Current: 15.6A
Origin: Mainland China
Nominal Voltage: 220VAC 230VAC
Model Number: SMG-II-3.6K-WIFI
Maxmum solar Charge Current: 100A
Maximum PV Array Power: 4000W
Maximum PV Array Open Circuit Voltage: 500VDC
Is Smart Device: Yes
Communication Interface: USB/RS232/Dry-contact
Certification: CE
Capacity: 3.6KVA/3.6KW
Brand Name: EASUN POWER
Battery voltage: 24VDC
AC Charge Current: 60A

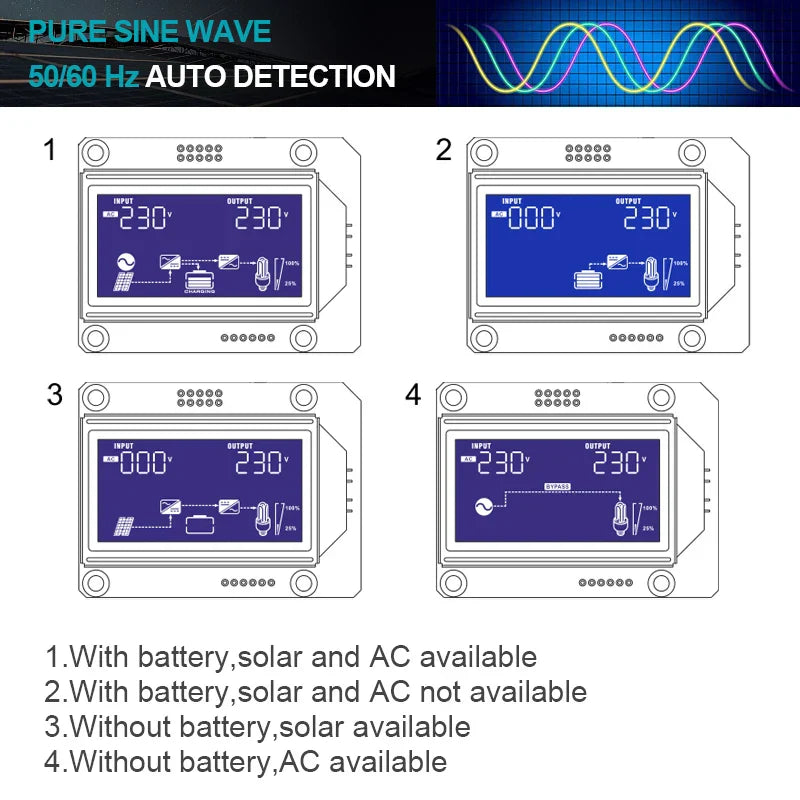

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
*pure sine wave soalr inverter
*Output power factor 1
*High PV input voltage range
*Built-in MPPT soalr controller
*Battery equalization function to optimize
Battery performance and extend lifecycle
*Inverter running without barrery
*Built-in anti-dusk kit for harsh environment
*WIFI-GPRS remote monitoring(Optional)
*Detachable LCD(Optional)
MODEL |
IsolarSMG II 3.6K |
IsolarSMG II 5.6K |
CAPACITY |
3.6KVA/3.6KW |
5.6KVA/5.6KW |
ParallelCapability |
NO |
NO |
INPUT | ||
NominalVoltage |
230VAC |
|
AcceptableVoltageRange |
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances) |
|
Frequency |
50/60Hz(Autosensing) |
|
OUTPUT | ||
NominalVoltage |
220/230VAC±5% |
|
SurgePower |
7000VA |
11000VA |
Frequency |
50/60Hz |
|
Waveform |
PureSinewave |
|
TransferTime |
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances) |
|
PeakEfficiency(PVtoINV) |
96% |
|
PeakEfficiency(BatterytoINV) |
93% |
|
OverloadProtection |
5s@>=150%load;10s@110%-150%load |
|
CrestFactor |
3:1 |
|
AdmissiblePowerFactor |
0.6-1(inductiveorcapacitive) |
|
BATTERY | ||
BatteryVoltage |
24VDC |
48VDC |
FloatinghargeVoltage |
27VDC |
54VDC |
OverChargeProtection |
33VDC |
63VDC |
ChargingMethod |
CC/CV |
|
SolarCharger&ACCharger | ||
SolarChargerTYPE |
MPPT |
|
Max.PVArraypower |
4000W |
5500W |
Max.PVArrayOpenCircuitVoltage |
500VDC |
|
PVArrayMPPTVoltageRange |
120VDC-450VDC |
|
Max.SolarlnputCurrent |
15A |
18A |
Max.SolarChargeCurrent |
100A |
100A |
Max.AC ChargeCurrent |
60A |
60A |
Max.ChargeCurrent |
100 |
100A |
PHYSICAL | ||
Dimensions,DxWxH(mm) |
482x290x113 |
|
PackageDimensions,DxWxH(mm) |
565x380x190 |
|
NetWeight(Kgs) |
9 |
10 |
Communicationlnterface |
USB/RS232/Dry-contact |
|
ENVIRONMENT | ||
OperatingTemperatureRange |
-10℃to50℃ |
|
Storagetemperature |
-15℃to60℃ |
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
