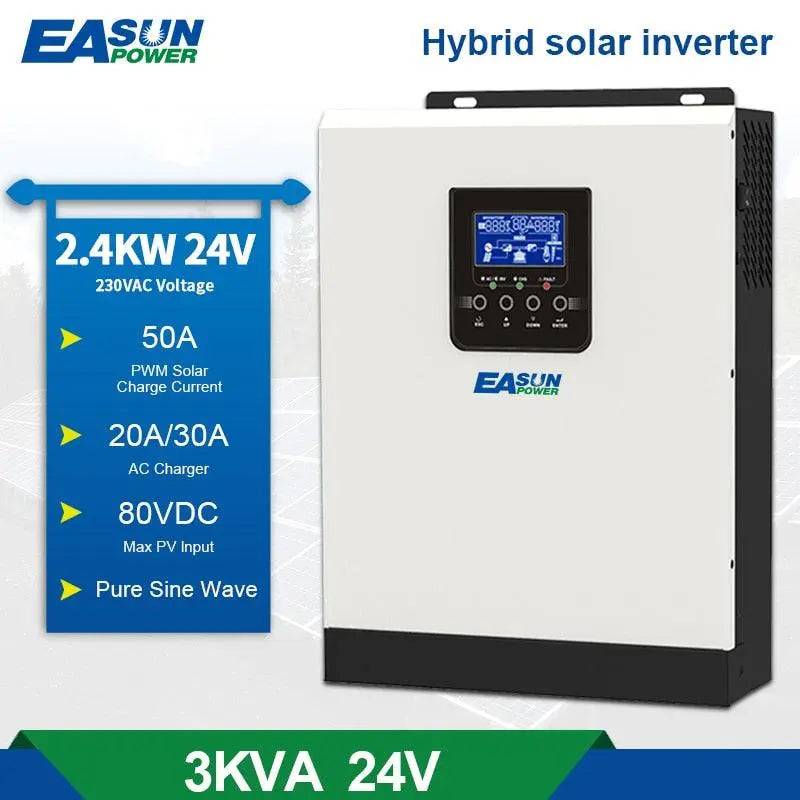

Solar Inverter EASun 3KVA Pure Sine Wave 24V 220V PV Power 1500W Built-in PWM 50A

Solar Inverter EASun 3KVA Pure Sine Wave 24V 220V PV Power 1500W Built-in PWM 50A

Regular price $310.85
Regular price $182.85 Sale price $310.85
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

  • Is_customized: Yes
  • Weight: 6.5KG
  • Usage D: pure sine wave inverter
  • Usage B: Solar Inverter 24V
  • Type: DC/AC Inverters
  • Size: 305*272*100mm
  • Output Voltage: 220~ 240Vac
  • Output Type: Single
  • Output Power: 1 - 200KW
  • Output Frequency: 50HZ/60HZ
  • Output Current: 50A
  • Model Number: SOLAR INVERTER 3K 24V
  • Maximum PV Array Power: 1500W
  • Maximum PV Array Open Circuit Voltage: 36VDC
  • Input Voltage: 24Vdc
  • Function 1: inverter 24v 220v
  • Feature: Solar Inverter 220V
  • Description 2: pure sine wave inverter charger
  • Description 1: inverter charger
  • Certification: CE

3KVA Pure Sine Wave Solar Inverter 24V 220V PV 1500W POWER Built-in PWM 50A Solar Charge Controller and AC Charger for Home Use

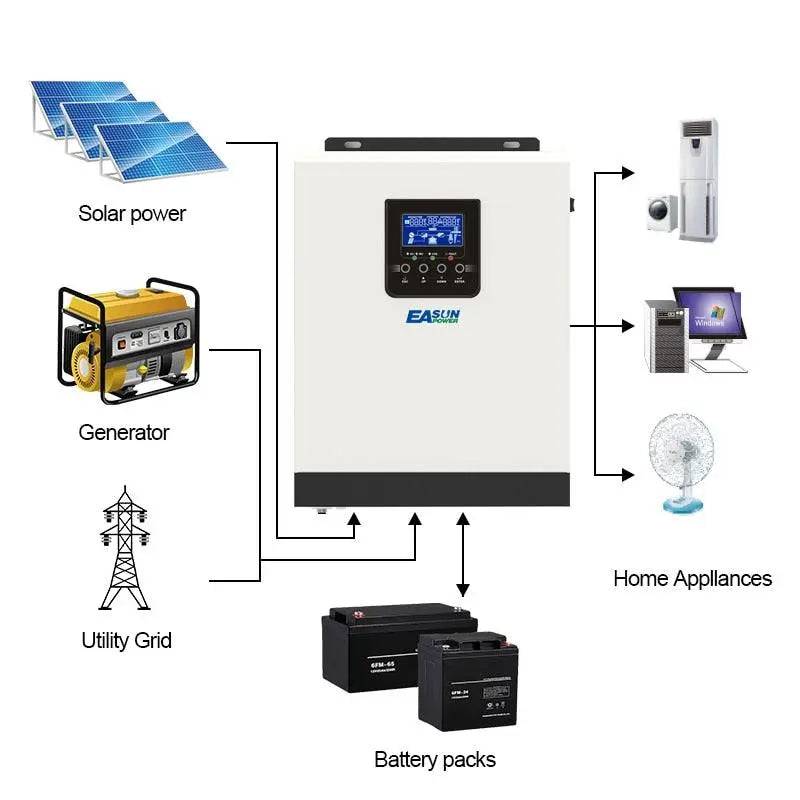

This is a multi-function inverter/chargei; combining functions of inverter solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications

Features:

1)Pune sine wave inverter

2)Configurable input voltage range for home appliances and personal computers via LCD setting

3)Configurable battery charging current based on applications via LCD setting

4)Configurable AC/Solar Charger priority via LCD setting

5)Compatible to mains voltage or generator power

6)Auto restart while AC is recovering

7)Overload/ Over temperature/ short circuit protection

8)Smart battery charger design for optimized battery performance

9)Cold start function

MODEL

3KW 24V

RatedPower

3000VA/2400W

INPUT

Voltage

230VAC

SelectableVoltageRange

170-280VAC(forpersonalcomputers)

90-280VAC(forhomeappliances)

FrequencyRange

50Hz/60Hz(Autosensing)

OUTPUT

ACVoltageRegulation(Batt.Mode)

230VAC±5%

Surgepower

6000VA

Efficiency(Peak)

93%

TransferTime

10ms(forpersonalcomputers)

20ms(forhomeappliances)

Waveform

PureSineWave

BATTERY

BatteryVoltage

24VDC

FloatingChargeVoltage

27VDC

OverchargeProtection

30VDC

SOLARCHARGER

MaximumPVArrayOpenCircuitVoltage

80VDC

MPPTRange@OperatingVoltage

36VDC

MaximumSolarChargingCurrent

50A

MaximumACChargingCurrent

20Aor30A

Maximum Charging Current(UtilityCharging+Solar Charging)

80A

StandbyPowerConsumption

2W

PHYSICAL

Dimension.D*W*H(mm)

305*272*100

NetWeight(kgs)

5.2kg

OPERATINGENVIRONMENT

Humidity

5%to95%RelativeHumidity(Non-condensing)

OperatingTemperature

0°Cto55°C

StorageTemperature

-15°Cto60°C
